FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

[Alfaeddy]

Hello Juanito

Have you removed the resistor is the wrong one!
Not R04

You would need to remove the red marked resistance.


Greetings Eddy

[juanito]

Hello Juanito

Have you removed the resistor is the wrong one!
Not R04

You would need to remove the red marked resistance.


Greetings Eddy

Hello Alfaeddy. Thanks for answers.
There's no red in the resistance of my elm.

[andro58]

Ok, I'll try
Thanks again
Andrea

[Alfaeddy]

Hello Juanito

Have you removed the resistor is the wrong one!
Not R04

You would need to remove the red marked resistance.


Greetings Eddy

Hello Alfaeddy. Thanks for answers.
There's no red in the resistance of my elm.

Hello Juanito

I forgot one put the image, sorry

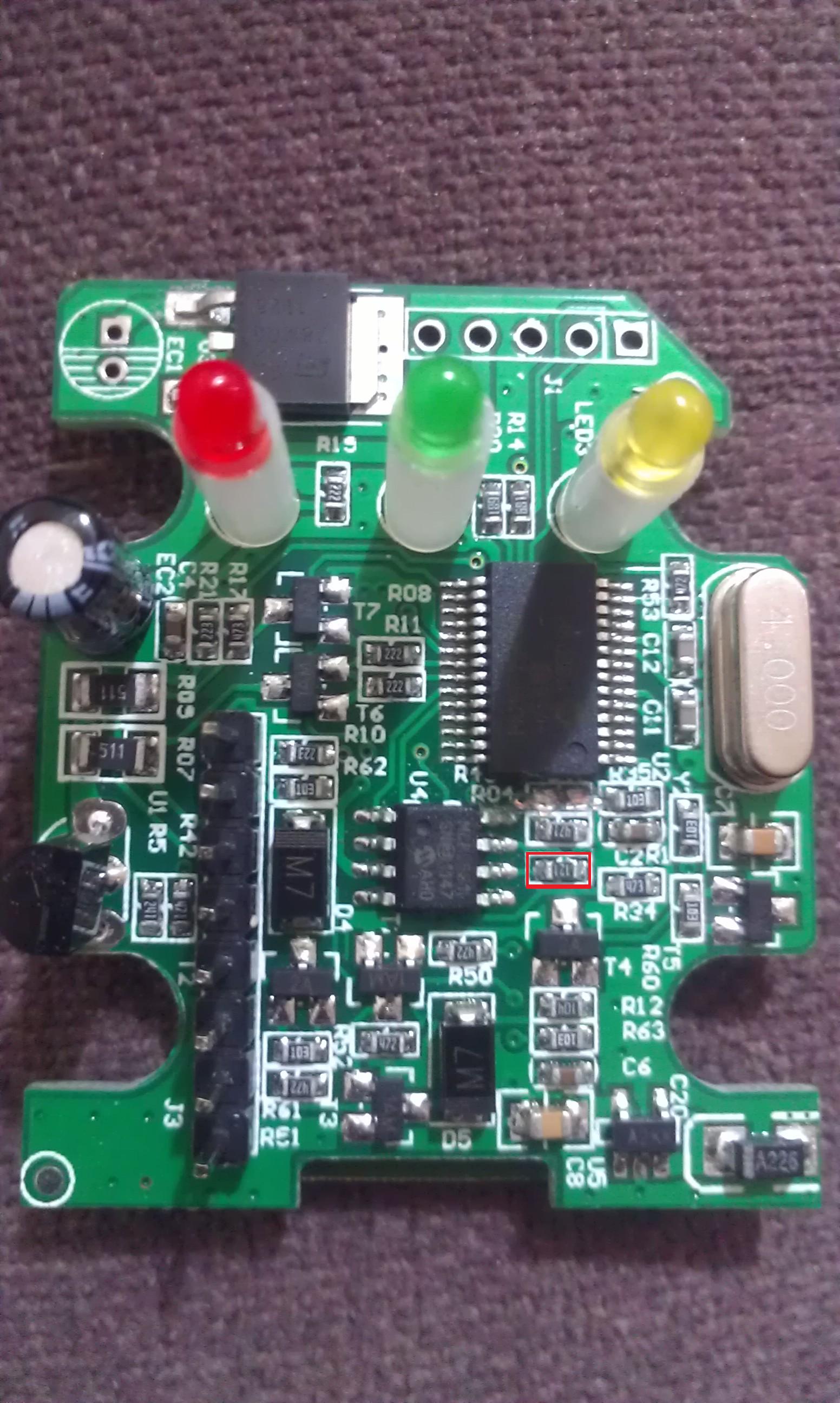

IMAG0391 markiert.jpg (379.78 KiB) Viewed 4540 times

Greetings Eddy

[juanito]

Thanks for the answer but my problem is not finished

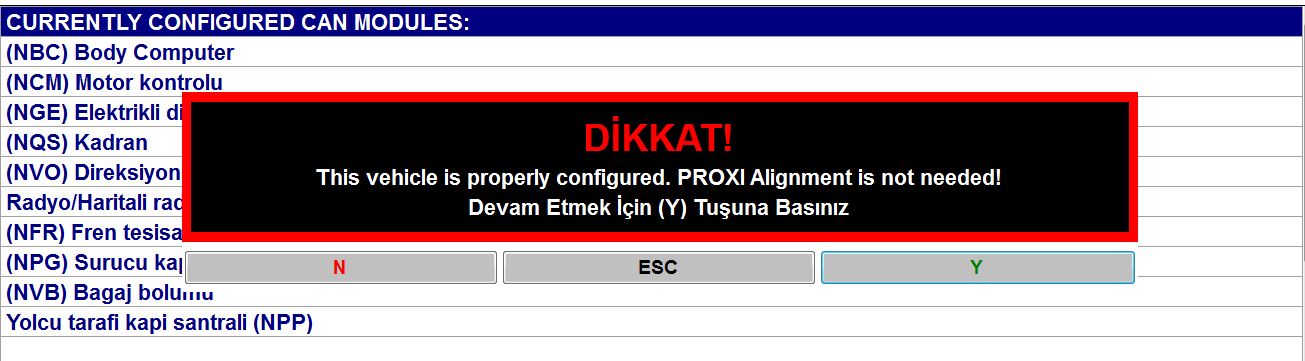

Ekran Alıntısı.JPG (95.04 KiB) Viewed 4533 times

[Alfaeddy]

Hello Juanito

Which Probelm?

There is but only, that is the proxy alignment OK.
And that is not necessary a realignment

And as I see yes you can also connect to the CAN setup produce.
So is your resistor problem no longer exists.

Greetings Eddy

[juanito]

there is write proxy alignment is not needed. i cant execute proxy alignment procedure and i cant open cruise control light. thanks

[Alfaeddy]

Hello

Since I've read that right!

Why should a proxy alignment be done?
If there is no need. !

That does not make sense, does it not?

Greetings Eddy

[arheu]

Hello Eddy,
just got an Vgate Scan Bluetooth Advanced OBD Scan Tool but it connects only to the engine ECU.

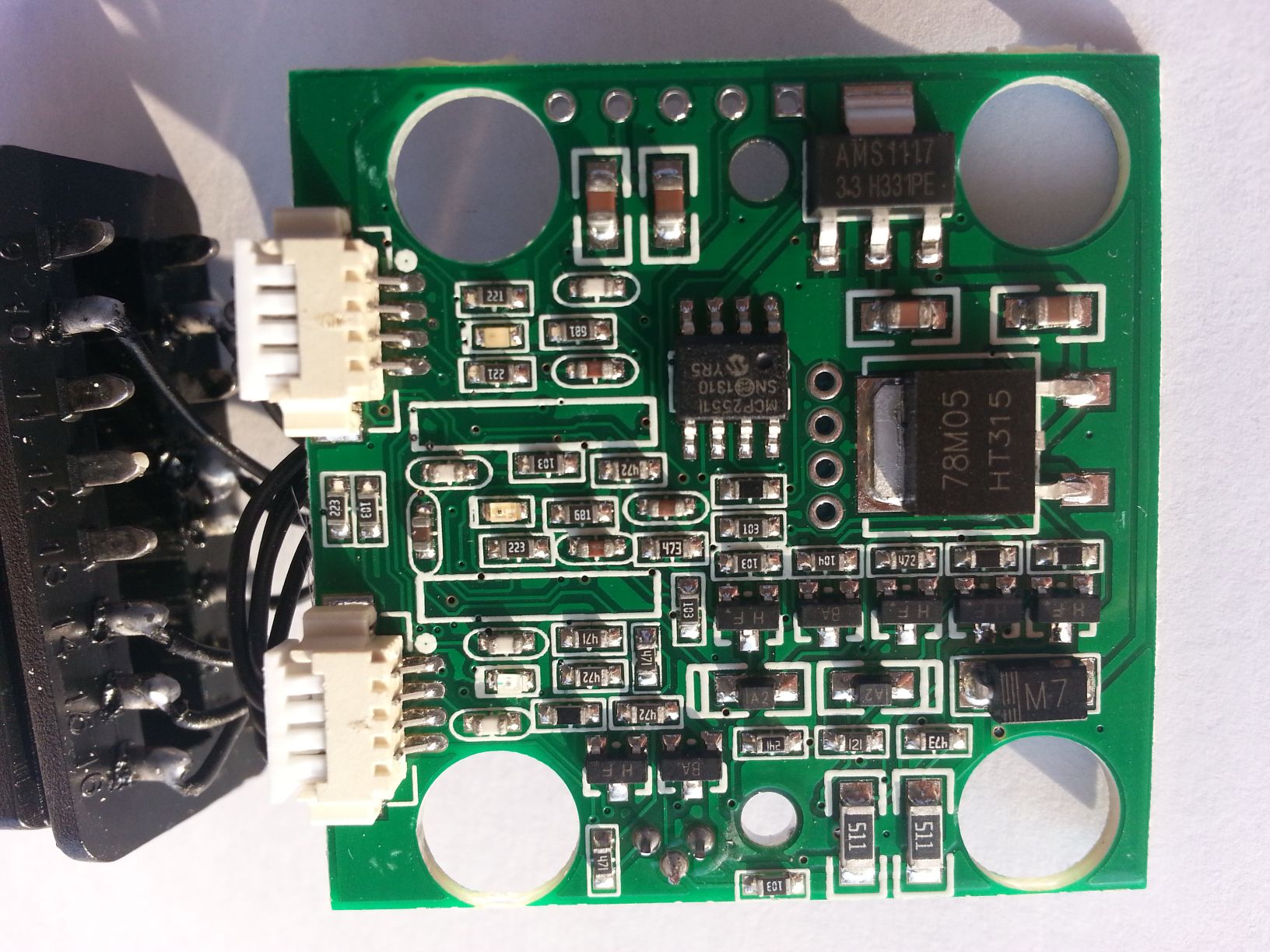

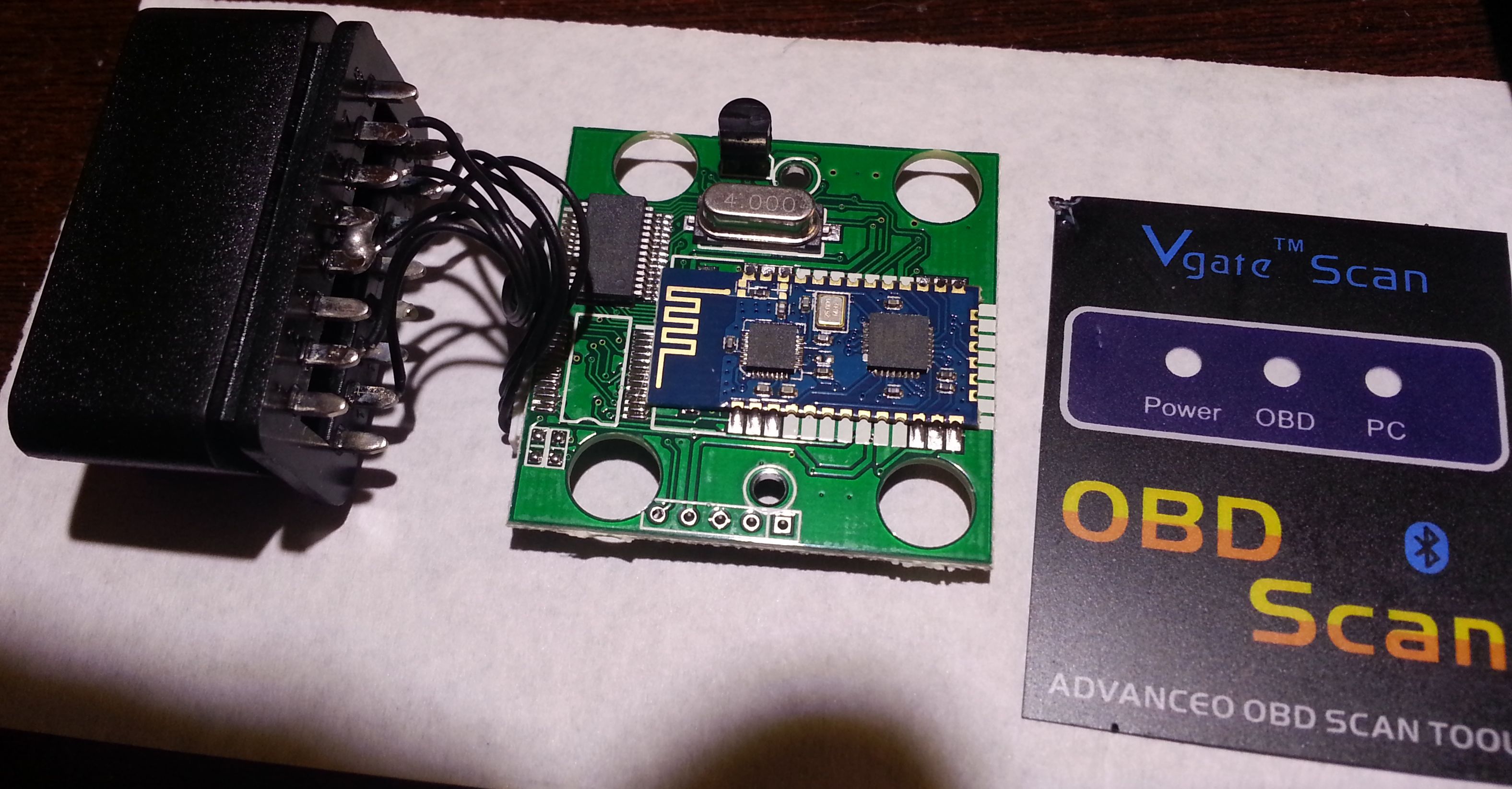

Some pictures attached:



Please help me identify the resistor that should be removed.

Best regards!

[Alfaeddy]

Hello Arheu

Very good pictures!
So does the view joy

Which vehicle would you like to read?


When it comes to the often described here CAN bus problem
you should remove the red marked resitor


Greetings Eddy

VgateScan-2 markiert.jpg (313.66 KiB) Viewed 4513 times
