I've got a problem with proxy alignment with these of cars.

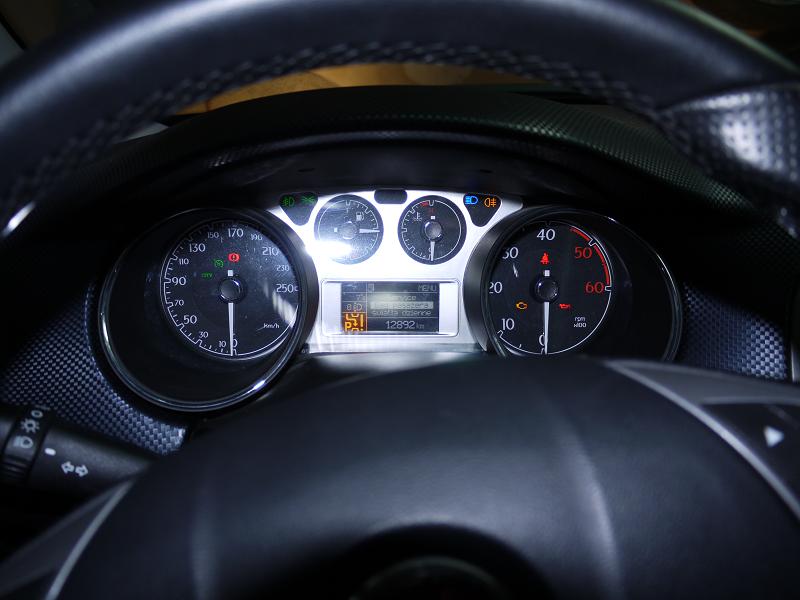

I changed a counter in Bravo with this from new Delta - extactly the same as there http://forum.stiloclub.it/viewtopic.php?f=120&t=27240. Of course my odometer is blinking. I went to Service Fiat to align proxy with new counter. There was a problem, because Examiner said that "option is over range" - whatever it means. We tried do this by Lancia and Fiat Examiner's menu. In Delta's counter was Blue Me and Parking Assistant connected, I haven't it in my car and I tried to alignment proxi to learn counter about that. Photo of my counter in attachment. There is blinking icon about Park Assistant error.
Is another way to delete from counter's memory information about Blue Me and Park Assist?
After I backed to home I connect FES to Bravo. When I tried to align proxy I get info "Failed to execute". I tried on both menus: Delta 2.0 16V and Bravo 1.9 8V in FES.
There is log with this operation:
Code: Select all
Reading CAN configuration data ...
CAN CONFIGURATION DATA:
04 00 04 6F 04 00 04 6F 00 00 04 02 00 00 00 00 00 00 00 00 00
04 00 04 6F 04 00 04 09 04 00 04 6F 04 00 04 09 04 00 04 01 00
30 34 31 39 38 30 30 30 34 39 33 4F 55 54 50 55 54 2D 4A 49 54 20 07 03 19 6F 04 00 04 09 04 00 04 C1 00 00 07 8F 00 16 00 00 02 84 06 01 00 00 28 00 81 00 31 00 74 00 00 00 00 00 00 00 00 36 51 05 0C 01 00 00 00 3A 00 A0 00 00 00 00 00 00 00
CURRENTLY CONFIGURED CAN MODULES:
Body Computer Node (NBC)
Engine Control Node (NCM)
Electric Steering Node (NGE)
Dashboard Node (NQS)
Receiver Radio/Radio Navigator Node (NRR/RMN)
Brake System Node (NFR)
Climate Control Node (NCL)
Airbag Node (NAB)
CURRENTLY AVAILABLE CAN MODULES:
Body Computer Node (NBC)
Engine Control Node (NCM)
Electric Steering Node (NGE)
Dashboard Node (NQS)
Receiver Radio/Radio Navigator Node (NRR/RMN)
Brake System Node (NFR)
Climate Control Node (NCL)
Airbag Node (NAB)
CAN MODULES THAT REQUIRE EOL PROGRAMMING:
Body Computer Node (NBC)
Dashboard Node (NQS)
Climate Control Node (NCL)
Airbag Node (NAB)
2011-02-03 15:56:33
CONNECTED TO:
FIAT BRAVO '07 1.9 MJET 8V
CAN Setup / PROXI Alignment Procedure
--------------------------------------------------------------
CURRENTLY CONFIGURED CAN MODULES::
Body Computer Node (NBC):
Engine Control Node (NCM):
Electric Steering Node (NGE):
Dashboard Node (NQS):
Receiver Radio/Radio Navigator Node (NRR/RMN):
Brake System Node (NFR):
Climate Control Node (NCL):
Airbag Node (NAB):
:
CURRENTLY AVAILABLE CAN MODULES::
Body Computer Node (NBC):
Engine Control Node (NCM):
Electric Steering Node (NGE):
Dashboard Node (NQS):
Receiver Radio/Radio Navigator Node (NRR/RMN):
Brake System Node (NFR):
Climate Control Node (NCL):
Airbag Node (NAB):
:
CAN MODULES THAT REQUIRE EOL PROGRAMMING::
Body Computer Node (NBC):
Dashboard Node (NQS):
Climate Control Node (NCL):
Airbag Node (NAB):
EXECUTING ADJUSTMENT...
PROXI Alignment Procedure
Writing CAN configuration data ...
Writing to module: Body Computer Node (NBC)SUCCESS!
Writing to module: Dashboard Node (NQS)SUCCESS!
Writing to module: Climate Control Node (NCL)FAILED!
Writing to module: Airbag Node (NAB)SUCCESS!
FAILED TO EXECUTE
EXECUTING ADJUSTMENT...
PROXI Alignment Procedure
Writing CAN configuration data ...
Writing to module: Body Computer Node (NBC)SUCCESS!
Writing to module: Dashboard Node (NQS)SUCCESS!
Writing to module: Climate Control Node (NCL)FAILED!
Writing to module: Airbag Node (NAB)SUCCESS!
FAILED TO EXECUTE
The same problem has my friend with Stilo. He mounted automatic clima where your car has a manual clima. Everything is working, but odometer is blinking and Proxi Alignment has the same error:
Code: Select all
Writing to module: Climate Control Node (NCL)FAILED!
