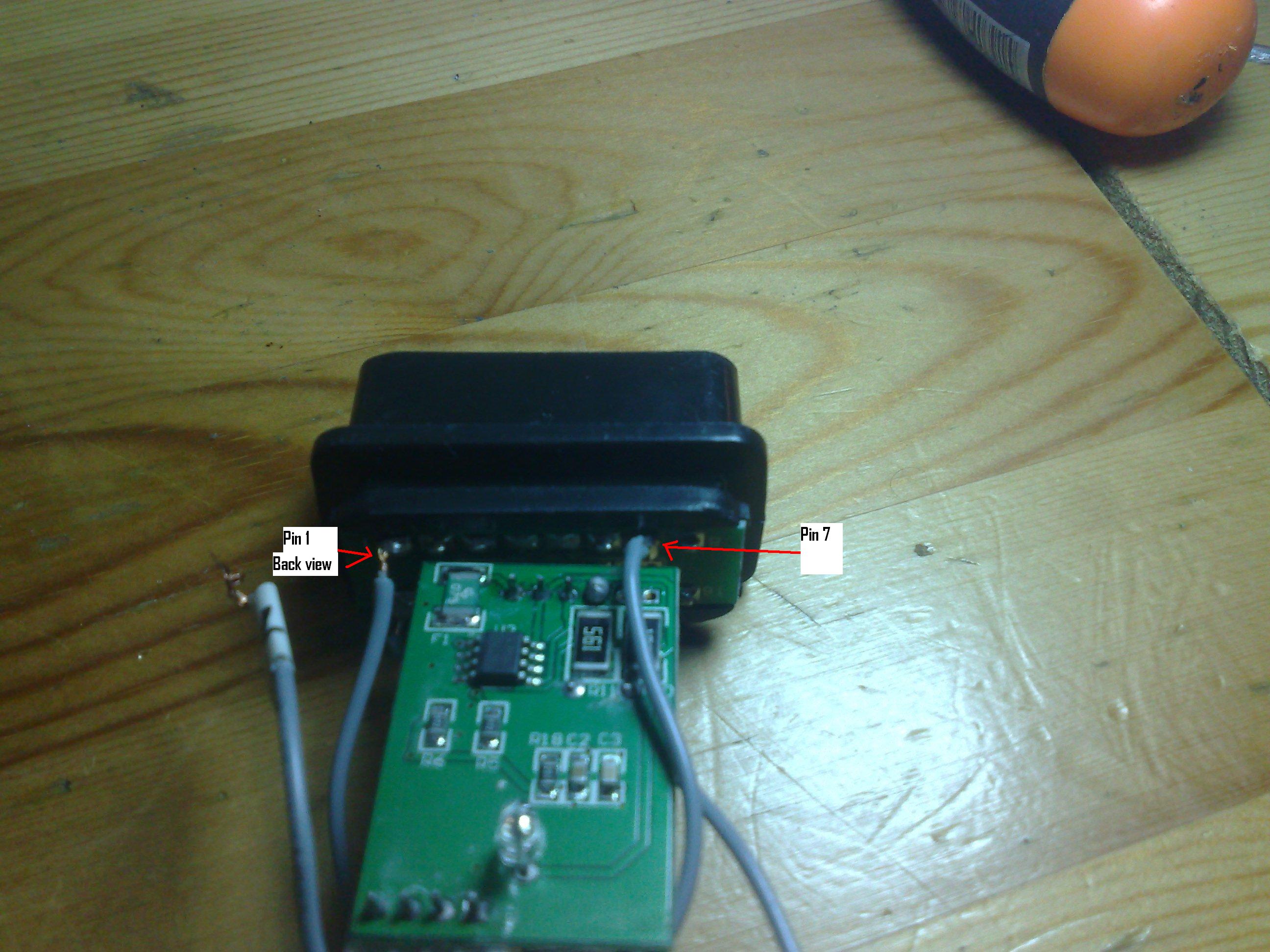

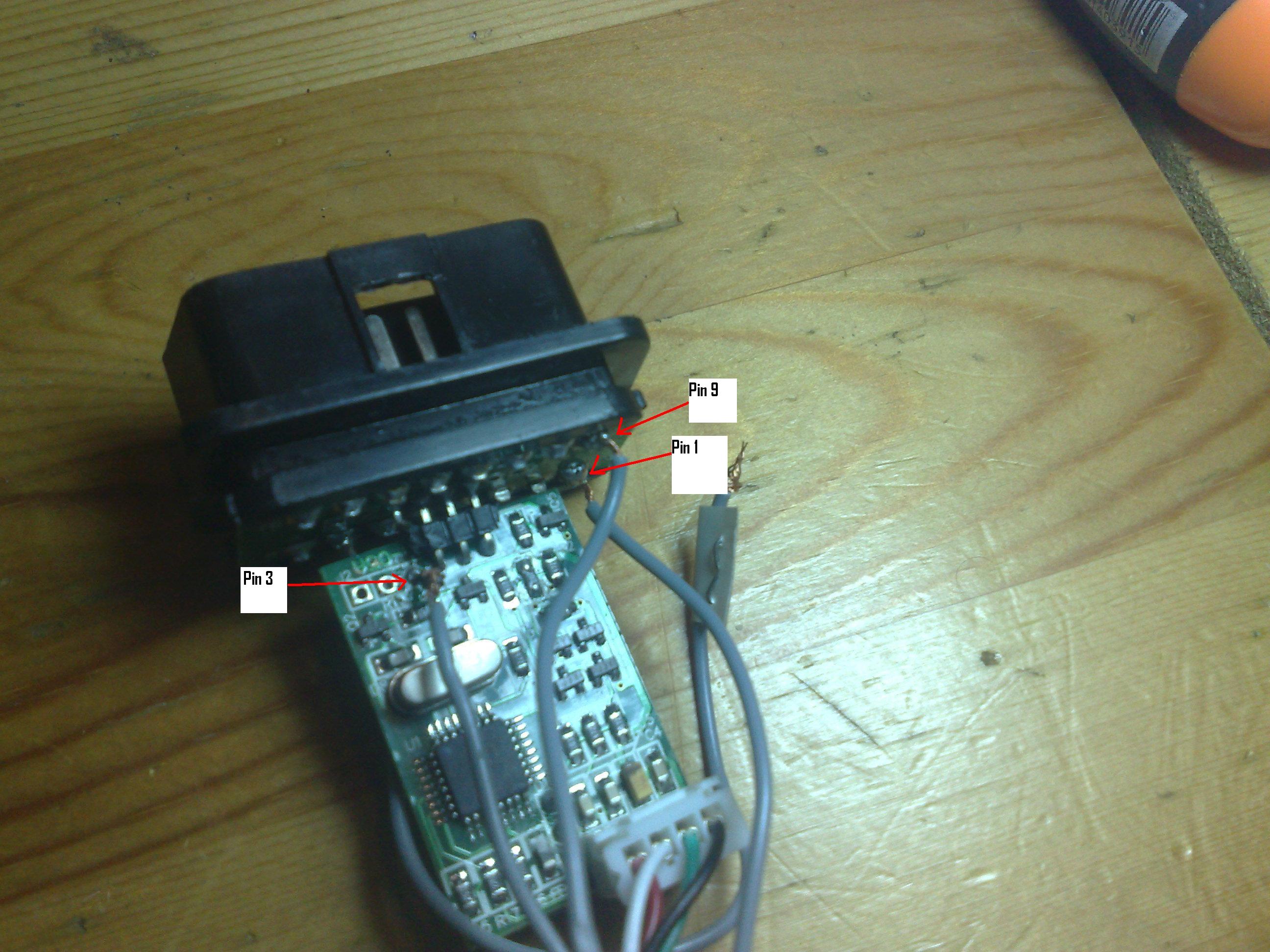

Hello, I soldered pins 3,1,7,9. But I can not connect airbag
Immagine.Cosi place you tell me if I done something wrong
Thanks!
KKL Help!
KKL Help!
- Attachments
-
- 2.jpg (499.87 KiB) Viewed 4988 times
-
- 1.jpg (558.06 KiB) Viewed 4988 times
Re: KKL Help!
It is NOT recommended to connect all the pins together.
Pin 7 to 1 and 9 is OK BUT not to 3 at the same time.
7 to 1 and 9 is OK (ECU & ABS & EPS & Body) is OK
7 to 3 (ECU & airbags) is ok
Pin 7 to 1 and 9 is OK BUT not to 3 at the same time.
7 to 1 and 9 is OK (ECU & ABS & EPS & Body) is OK
7 to 3 (ECU & airbags) is ok
Fiat Strada/Ritmo Abarth 130TC, Barchetta 2005 , 500X Cross Plus
Re: KKL Help!
I did as you say you but it works ...
How should we set the KKL?
Thanks!
How should we set the KKL?
Thanks!
Re: KKL Help!
Sorry I don't understand what you are actually asking.
Fiat Strada/Ritmo Abarth 130TC, Barchetta 2005 , 500X Cross Plus
Re: KKL Help!
How to set comport
Re: KKL Help!
Change the lattency from 16 to 2.
That's all.
And try to select the com 1.
It is better.
Good luck
That's all.
And try to select the com 1.
It is better.
Good luck
