Hi Everybody.

I have a problem with connect by this interface to Abs,service,clima and every other option by multiecuscan v1.5. I can connect only to engine. I also was bought adapter yellow 1,9 can. Also not working.

My car Grande Punto 2008 1,4 8v.

Also tried with Linea 2007 1,4 8v also can connect just engine.

I want to remove service inspection: ,,Service Coupon Expired"

I was read that some ppl is removing any resistor from his interfaces. But I can't find this one in my interface.





Full hd pics

http://images62.fotosik.pl/60/ec4abcdfaf360b76.jpg
http://images64.fotosik.pl/60/6e2db83e1ae898dc.jpg
http://images65.fotosik.pl/60/8a650b2c8df82291.jpg
http://images64.fotosik.pl/60/b7c345c306ef88a9.jpg


This was cheap one from ebay.
Cost 10$
Thx in advance for help.

Hello Jordanodc

In this thread is about the same interface as your
Although your pictures are better, but I can not pursue traces still

viewtopic.php?f=5&t=1493&view=unread#unread

Also, I can not recognize which contacts the white plug
OBD Pin 6 and Pin 14 are?

Your pictures are good but I can not see how the MCP2551 chip was installed anyway.

And I enlarge your images, the unclear

It may not be the bridge resistor this interface has no one ?
And there is only one driver or setting problem??

Once use this driver

http://www.ftdichip.com/Drivers/VCP.htm

Greetings Eddy

another Pics
http://images65.fotosik.pl/61/7d3e74fb2000cdd2.jpg
http://images63.fotosik.pl/61/881c16d820f838bb.jpg
http://images65.fotosik.pl/61/597c263391094db7.jpg
http://images62.fotosik.pl/61/046586587564765b.jpg
http://images65.fotosik.pl/61/3c4073d92d3b577b.jpg
http://images63.fotosik.pl/61/024532f0dd988d3f.jpg
http://images61.fotosik.pl/60/cd8d9cd112be7e74.jpg
http://images62.fotosik.pl/61/d4ac489e1f931f28.jpg
http://images61.fotosik.pl/60/71a5d5c209edb771.jpg
http://images62.fotosik.pl/61/724cae4a9c774179.jpg

one cable from white plug is going to pin 6 and one cable from second white plug is going to 14.

So 6,14 not going from 1 white plug.



which driver i must install if i have win 7 32bit
and why i need install it if this is bluetooth interface

Hello

In the pictures I can not follow the tracks and do not see how the MCP2551 is connected.

For all Windows versions of 2:08:30 is needed! 32 + 64 bit

The driver is required so that your PC can work with the interface
whether the connection via BT or USB cable is not relevant


Greetings Eddy

so if my elm is connecting with engine by multiecuscan i need to have installed this driver too?

i make another pics and i think now will be good

http://images64.fotosik.pl/61/eea3afdc2c9c75d7.jpg

http://images61.fotosik.pl/61/6200dd60d62c42e0.jpg

http://images65.fotosik.pl/61/f5bacb1282cc56a4.jpg

http://images61.fotosik.pl/61/74d06a1f6f959571.jpg

Hello

When Linea the ECU and the ABS is not read via CAN bus
Therefore, this is not a problem on the bridge resistance
And for the ABS of the Linea, you need the adapter A1 (green)

In your pictures, I can not follow, because the are not bigger and sharper
as the first pictures.
Also must go where the pin 6 +14 on the board just knowledge.


Greetings Eddy

Linea connrcting with engine nothing else.

I know that linea need green one.

but i have punto grande and adapter yellow not connecting.


So My elm is good so why nothing work Just engine.

I need to make better pictures for you?

If i connect with gp engine i have 7 bookmarks

if with linea engine i have 2 bookmarks.errors and first i forgot name.

I make betterpics tomorrow.

Hello

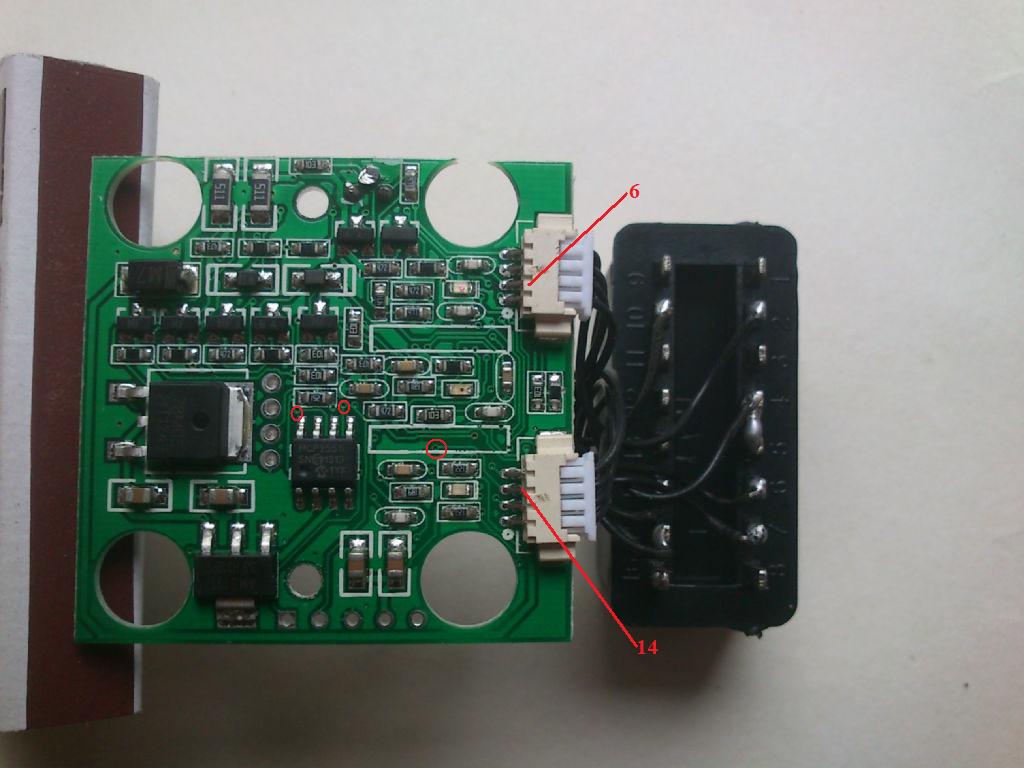

I have your picture labeled times, pins 6 and 14 are correct?

I see the image in the conductors are transmitted to the back of the board.
I will therefore probably can not see, but it's worth a try

Greetings Eddy

pins 6 14 is same how you Show on picture.

this is back side i signed it same numbers as your ring
