Hi Everybody.

I have a problem with connect by this interface to Abs,service,clima and every other option by multiecuscan v1.5. I can connect only to engine. I also was bought adapter yellow 1,9 can. Also not working.

My car Grande Punto 2008 1,4 8v.

Also tried with Linea 2007 1,4 8v also can connect just engine.

I want to remove service inspection: ,,Service Coupon Expired"

I was read that some ppl is removing any resistor from his interfaces. But I can't find this one in my interface.





Full hd pics

http://images62.fotosik.pl/60/ec4abcdfaf360b76.jpg
http://images64.fotosik.pl/60/6e2db83e1ae898dc.jpg
http://images65.fotosik.pl/60/8a650b2c8df82291.jpg
http://images64.fotosik.pl/60/b7c345c306ef88a9.jpg


This was cheap one from ebay.
Cost 10$
Thx in advance for help.

[Alfaeddy]

Hello Jordanodc

In this thread is about the same interface as your
Although your pictures are better, but I can not pursue traces still

viewtopic.php?f=5&t=1493&view=unread#unread

Also, I can not recognize which contacts the white plug
OBD Pin 6 and Pin 14 are?

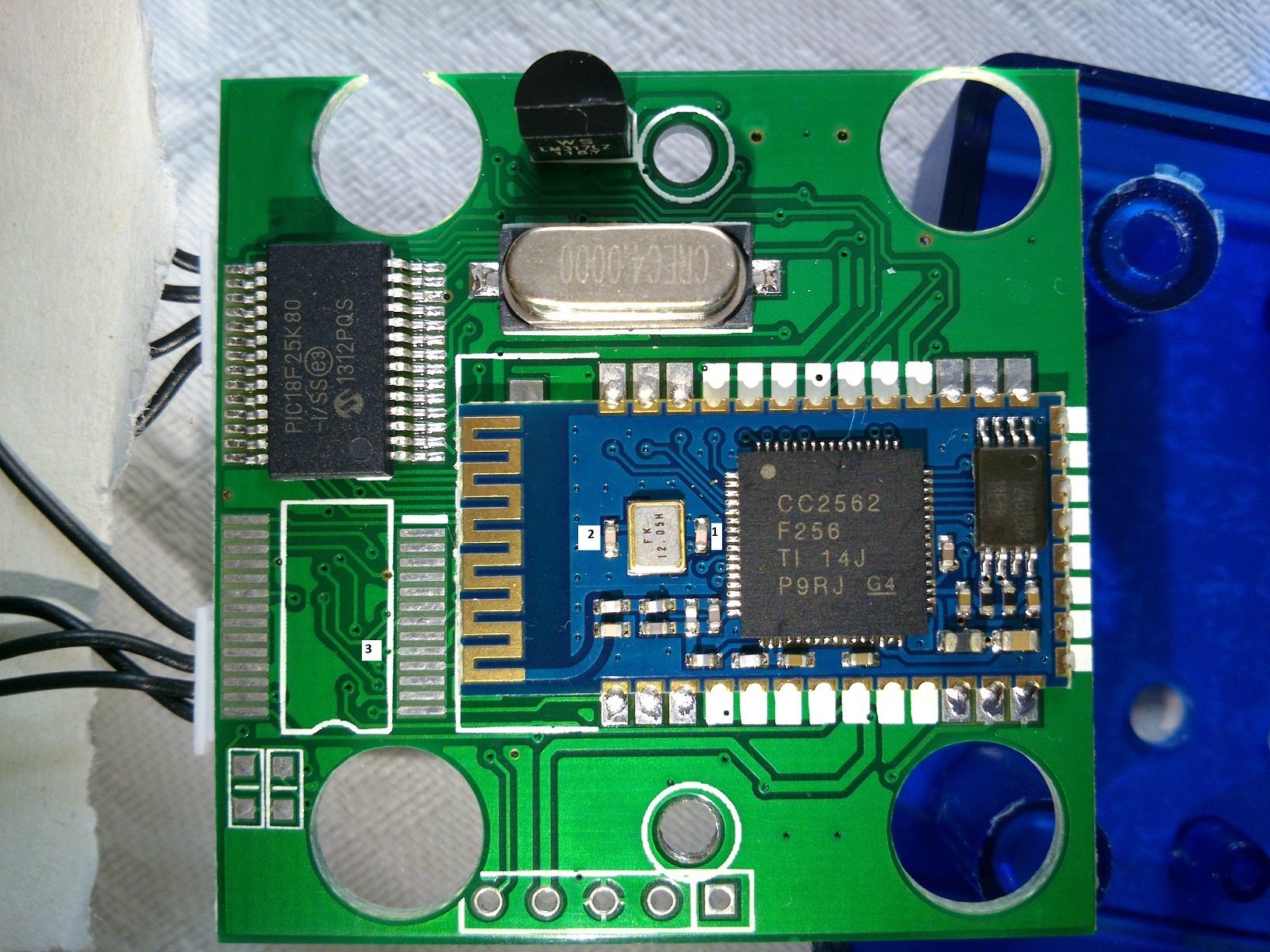

Your pictures are good but I can not see how the MCP2551 chip was installed anyway.

And I enlarge your images, the unclear

It may not be the bridge resistor this interface has no one ?
And there is only one driver or setting problem??

Once use this driver

http://www.ftdichip.com/Drivers/VCP.htm

Greetings Eddy

[Jordandc]

another Pics
http://images65.fotosik.pl/61/7d3e74fb2000cdd2.jpg
http://images63.fotosik.pl/61/881c16d820f838bb.jpg
http://images65.fotosik.pl/61/597c263391094db7.jpg
http://images62.fotosik.pl/61/046586587564765b.jpg
http://images65.fotosik.pl/61/3c4073d92d3b577b.jpg
http://images63.fotosik.pl/61/024532f0dd988d3f.jpg
http://images61.fotosik.pl/60/cd8d9cd112be7e74.jpg
http://images62.fotosik.pl/61/d4ac489e1f931f28.jpg
http://images61.fotosik.pl/60/71a5d5c209edb771.jpg
http://images62.fotosik.pl/61/724cae4a9c774179.jpg

one cable from white plug is going to pin 6 and one cable from second white plug is going to 14.

So 6,14 not going from 1 white plug.



which driver i must install if i have win 7 32bit
and why i need install it if this is bluetooth interface

[Alfaeddy]

Hello

In the pictures I can not follow the tracks and do not see how the MCP2551 is connected.

For all Windows versions of 2:08:30 is needed! 32 + 64 bit

The driver is required so that your PC can work with the interface
whether the connection via BT or USB cable is not relevant


Greetings Eddy

[Jordandc]

so if my elm is connecting with engine by multiecuscan i need to have installed this driver too?

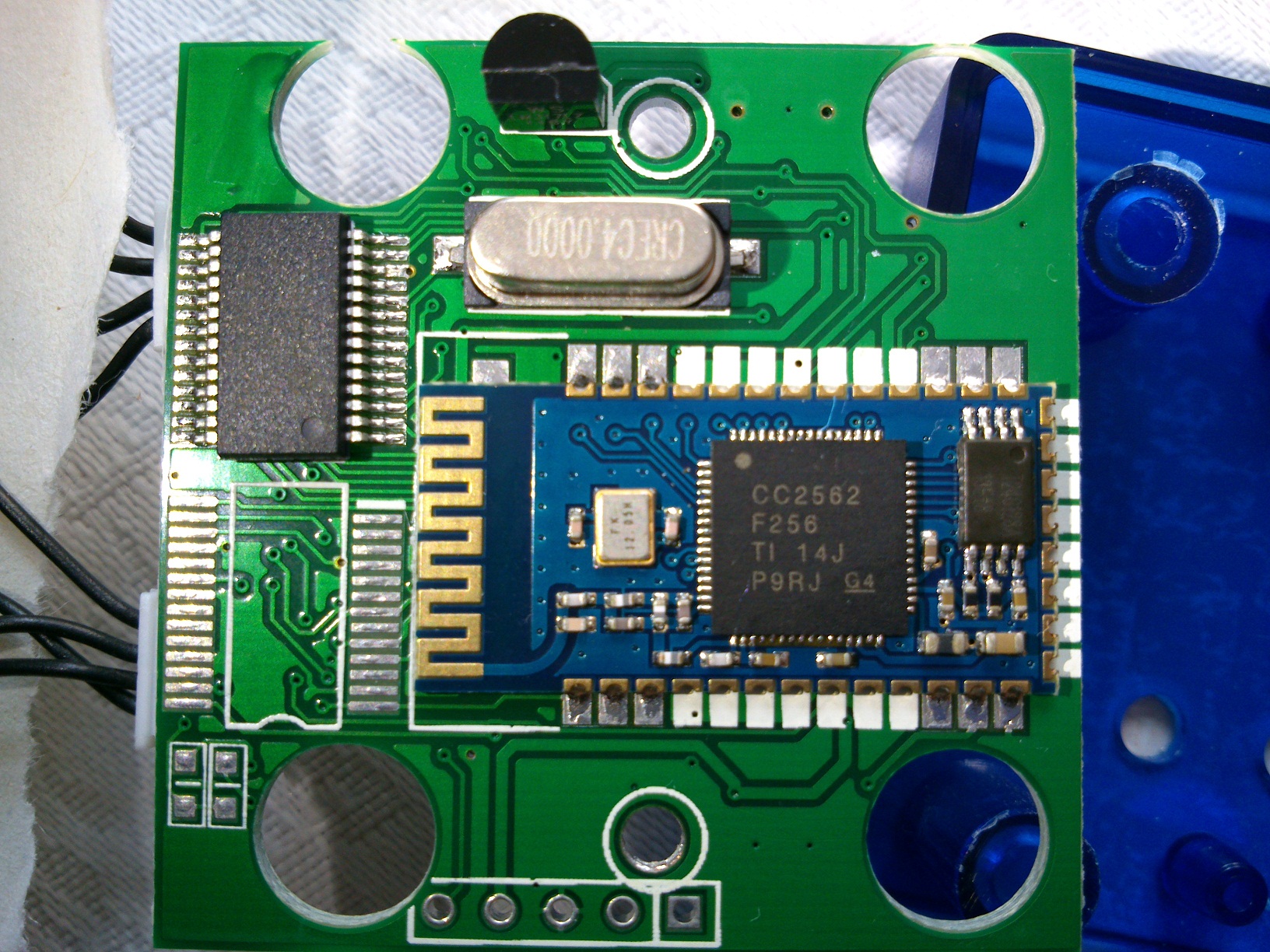

i make another pics and i think now will be good

http://images64.fotosik.pl/61/eea3afdc2c9c75d7.jpg

http://images61.fotosik.pl/61/6200dd60d62c42e0.jpg

http://images65.fotosik.pl/61/f5bacb1282cc56a4.jpg

http://images61.fotosik.pl/61/74d06a1f6f959571.jpg

[Alfaeddy]

Hello

When Linea the ECU and the ABS is not read via CAN bus
Therefore, this is not a problem on the bridge resistance
And for the ABS of the Linea, you need the adapter A1 (green)

In your pictures, I can not follow, because the are not bigger and sharper
as the first pictures.
Also must go where the pin 6 +14 on the board just knowledge.


Greetings Eddy

[Jordandc]

Linea connrcting with engine nothing else.

I know that linea need green one.

but i have punto grande and adapter yellow not connecting.


So My elm is good so why nothing work Just engine.

I need to make better pictures for you?

If i connect with gp engine i have 7 bookmarks

if with linea engine i have 2 bookmarks.errors and first i forgot name.

I make betterpics tomorrow.

[Alfaeddy]

Hello

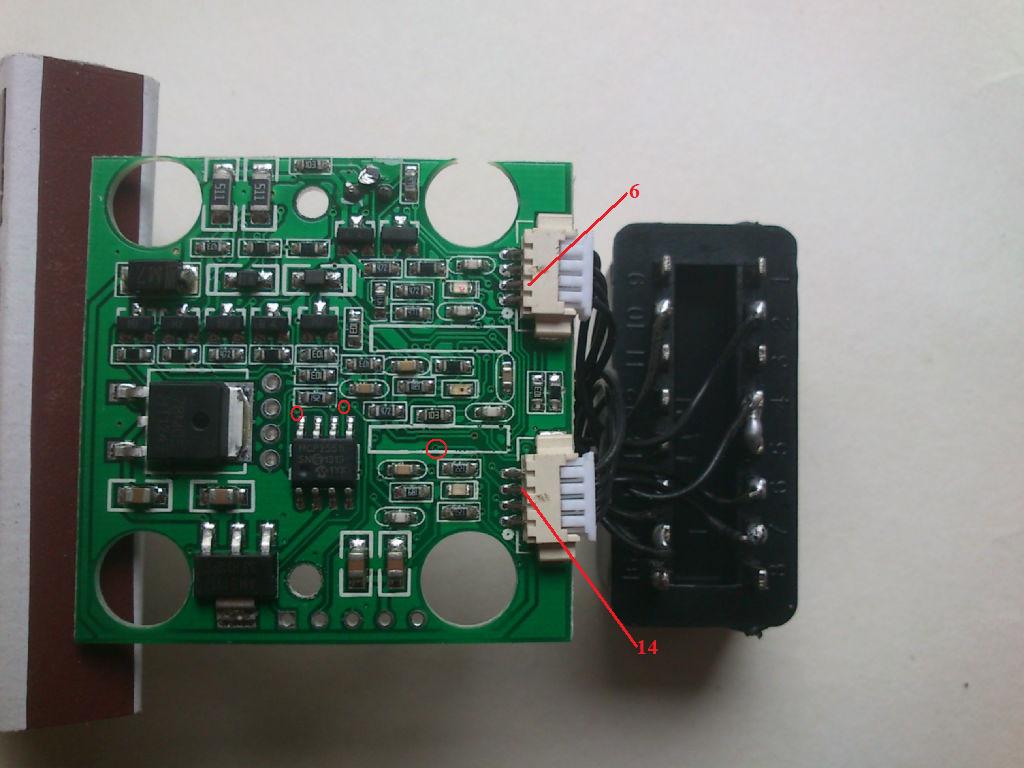

I have your picture labeled times, pins 6 and 14 are correct?

I see the image in the conductors are transmitted to the back of the board.
I will therefore probably can not see, but it's worth a try

Greetings Eddy

6e2db83e1ae898dc beschriftet.jpg (79.19 KiB) Viewed 8619 times

[Jordandc]

pins 6 14 is same how you Show on picture.

[Jordandc]

this is back side i signed it same numbers as your ring

6e2db83e1ae898dc beschriftet.jpg (80.9 KiB) Viewed 8608 times
