hardwear problem!!??

[156er]

Yoop,

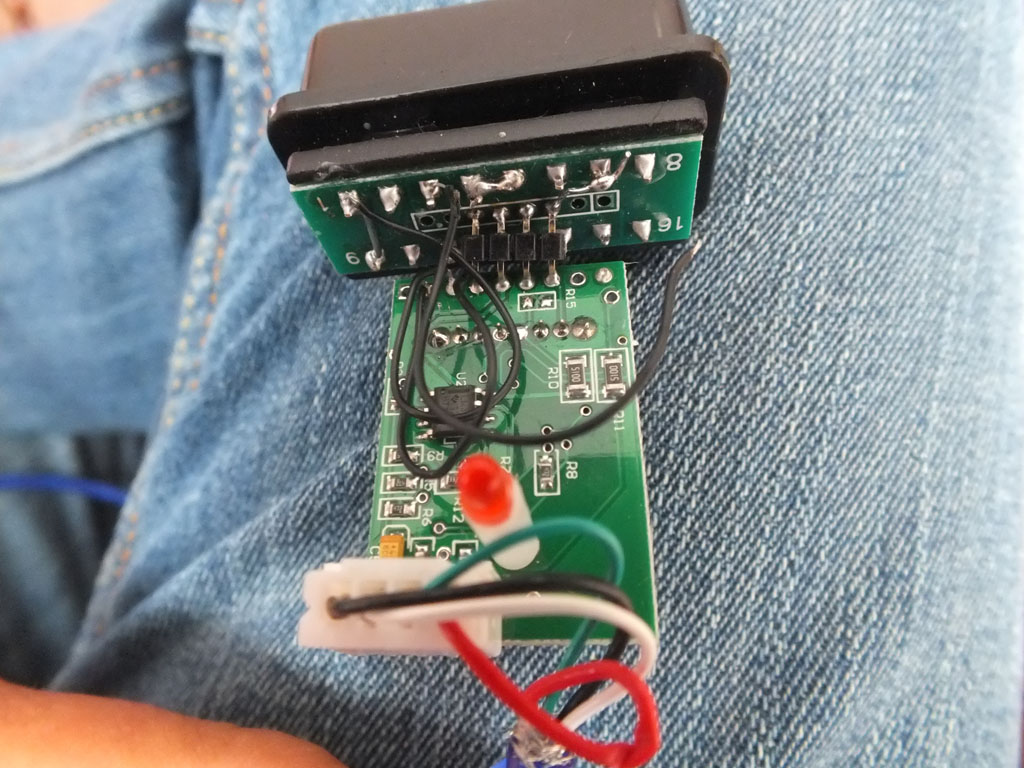

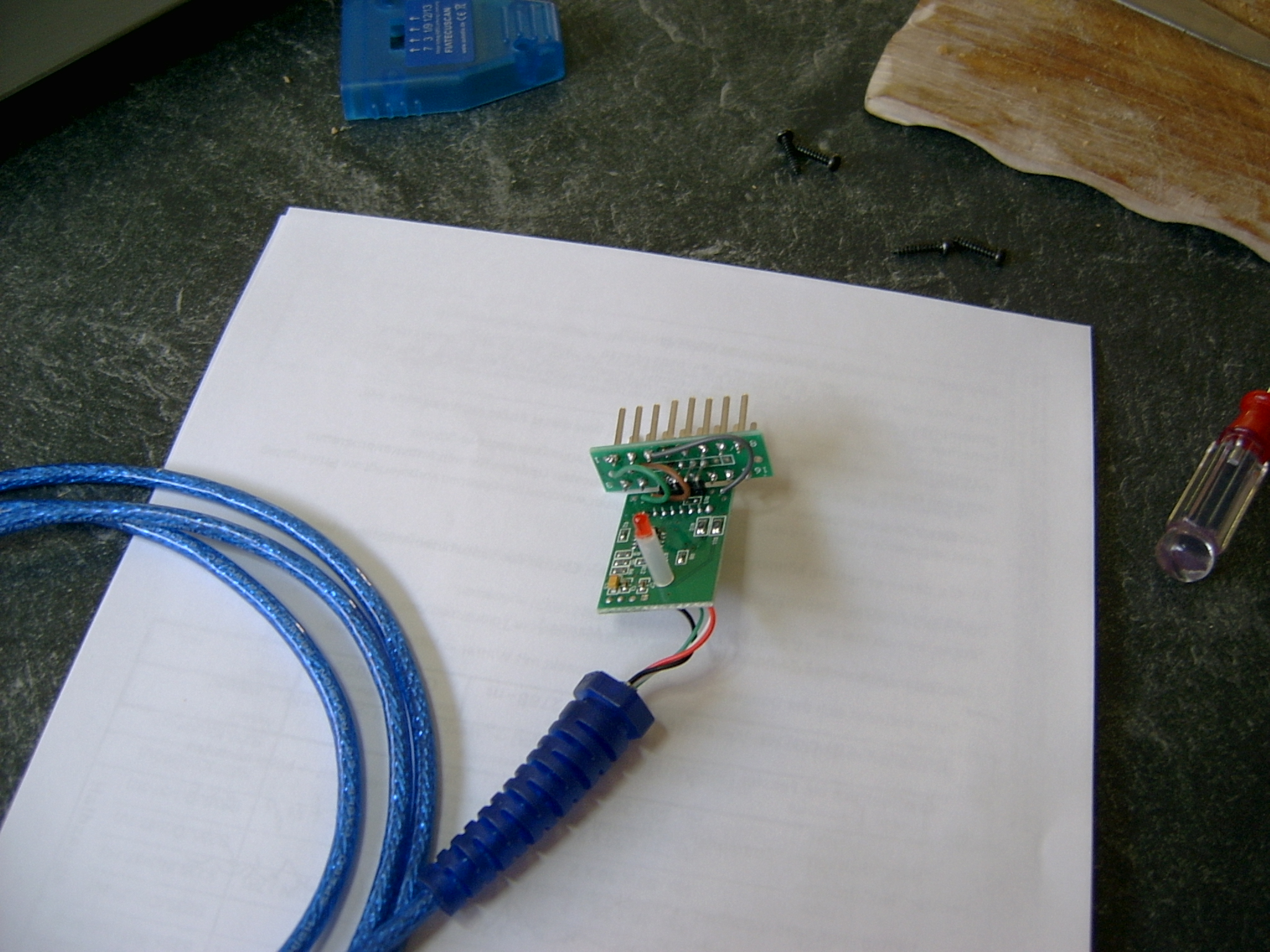

I've just bought a cable via e-bay. I've got a problem with this cable, there is a pice of black wire with no connection at the end.
Is there anybody, who know where is this wire going to?

Thanks a lot
Zsolt from Hungary


[Alfaeddy]

Hello 156er

The cable was already so in orders?
Strange!

As well has anyone tried to modify an interface and it failed

The cable must be connected from pin 3 on the boards separately input (switch).

You've been sold a tinkering solution!

Greetings Eddy

[156er]

Hi,

It is a "stock" chinese item number1 quality as always.... so anyway, it seems that wire must go to that point....


[Alfaeddy]

Hello 156er

I've got some KKL interface from China
But none of them has been so bad and with additional cables, such as your interface

The cable must not be soldered to the location marked by you

The input of the circuit board is the left of the 4 bars to the board

But pin 3 must not be soldered directly this pin is read as airbag.

I do not know this building boards

Greetings Eddy

[156er]

Hi,

This is a cable with a switch on it. Same item.... http://www.ebay.com/itm/VAG-KKL-USB-OBD ... 90&vxp=mtr

[Alfaeddy]

Hello 156er

I did not know that this is a KKL interface with switch. Sorry

Then this loose cable must be soldered to those of you red marked spot.

yes that is correct

Greetings Eddy
