FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

[Alfaeddy]

Hello acafaro

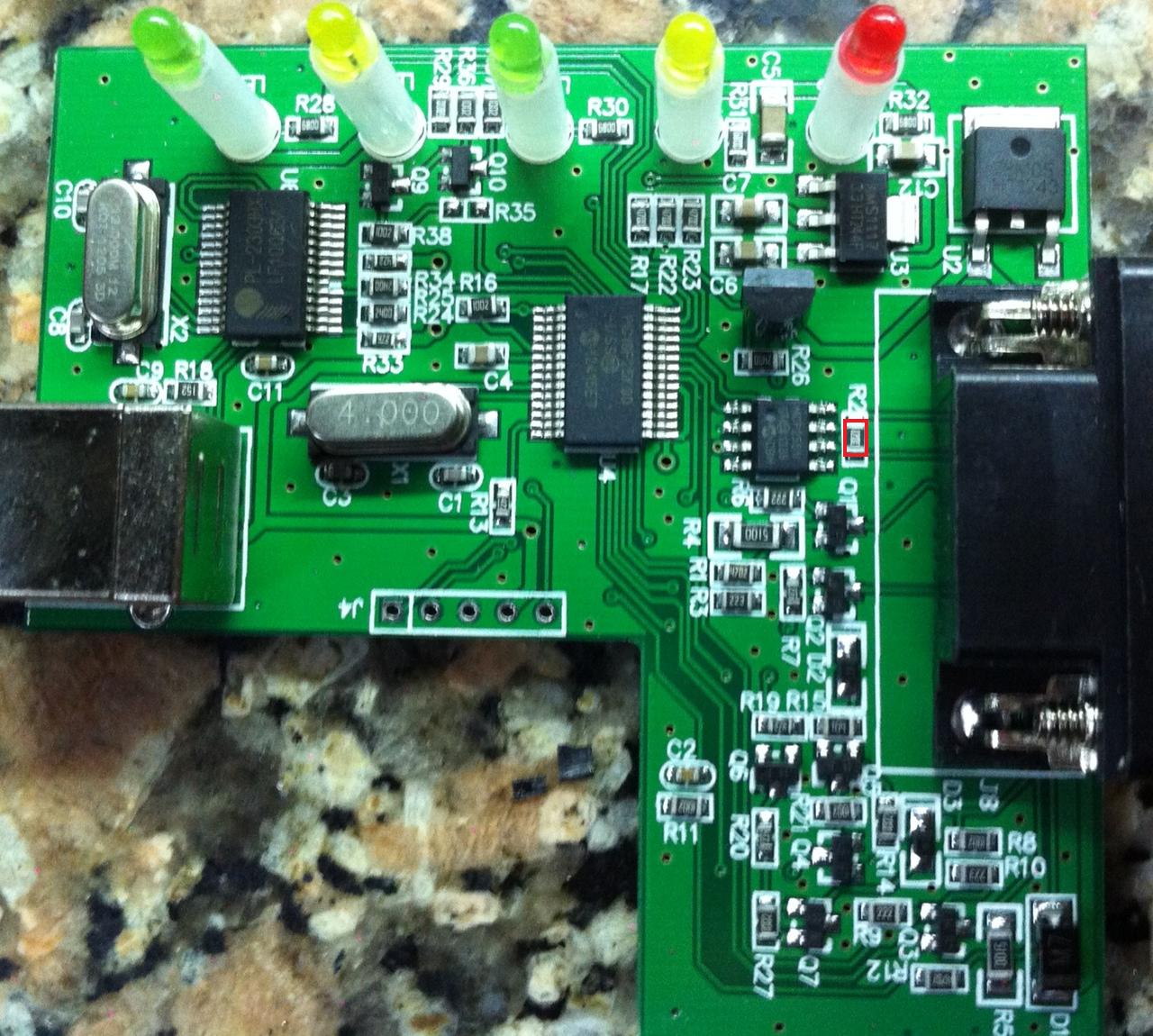

Remove the Resistor in an red Frame , and your ELM Interface
can read now CAN Bus

Greetings Eddy

la foto markiert.jpg (245.01 KiB) Viewed 9028 times

[maptod]

Hi.
I`ve bought an ELM 327 v1.5 and i can`t connect nothing other than the engine on Fiat Stilo 1.9JTD
This is the inside of the box
http://www.prikachi.com/images/927/6126927B.jpg
http://www.prikachi.com/images/931/6126931d.jpg

Can someone tell me what to do to make it work with CAN?

[Alfaeddy]

Hi

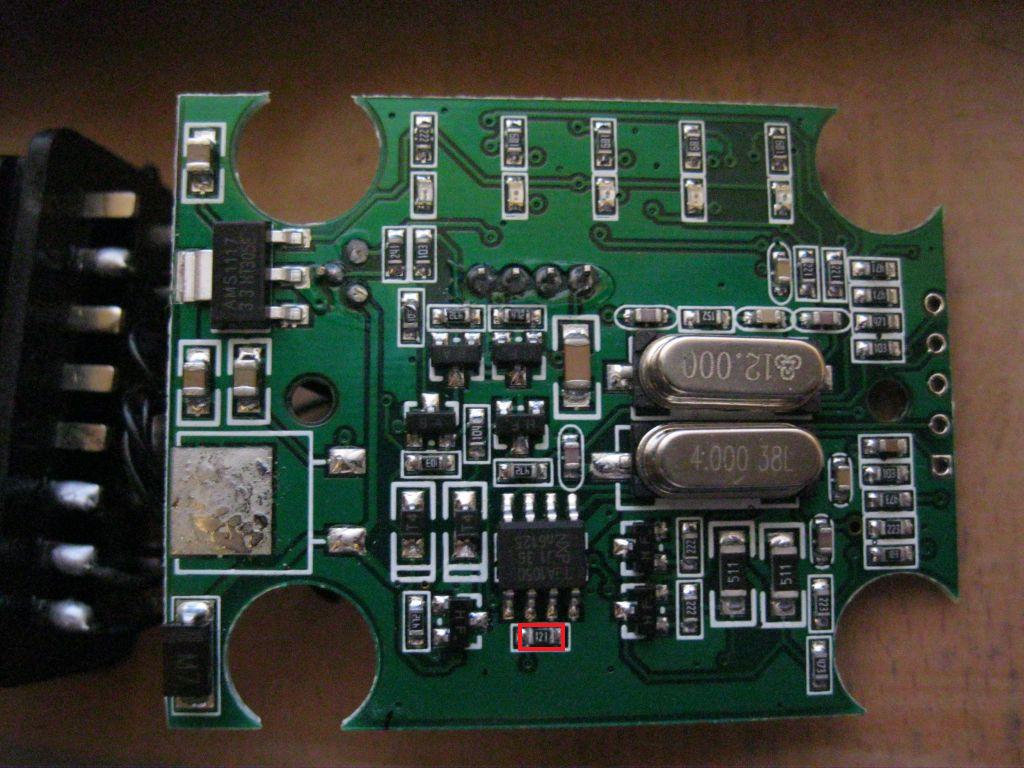

Remove the Resistor in the red Frame , and your Interface can read the CAN Bus


Greetings Eddy

6126927B markiert.jpg (127.37 KiB) Viewed 9012 times

[dimma_]

I bought Elm 327 bluetooth. engine can read. What to do, what to read other blocks? my car Punto MK2. Sorry for bad English

[Alfaeddy]

Hello Dimma_

Your picture is very small, even by larger I can hardly see anything.

Take a picture of the second bid directly from above with Macromedia
I need to read the designation of the components.

And pull the plug from the board

Greetings Eddy

[dimma_]

Hello Alfaeddy
http://img-fotki.yandex.ru/get/9163/765 ... c0571_orig
http://img-fotki.yandex.ru/get/6724/765 ... b2640_orig
http://img-fotki.yandex.ru/get/9151/765 ... 51cc7_orig

[Alfaeddy]

Hello dimma_

Unfortunately, I still can not read the codes on the components!
And the plug is still plugged into the board!

But when I see the board as
I think you found a bug in the drivers or settings
because this ELM should be able to read CAN bus without modification


Greetings Eddy

[jackburton]

Many thanks to ALFAEDDY for the instructions on This post:(viewtopic.php?f=5&t=1493&start=330#p10608) from which i could modify my elm327 to be able to read can bus and others units on my fiat bravo 1.9 mjet. (But how was hard to unsolder r4!)

[Alfaeddy]

Helloc Jackburton

gladly,
Prima this has helped you the post
One can easily destroy the resistor, if you do not have suitable soldering iron.
But we must be careful not to destroy the board


Greetings Eddy

[beAsty]

Well I tried it with my ELM 1.4 device. First I removed the 120 Ohm resistor and inserted a blank "cable" -> no luck

Then I tried to add the 2x 100 Ohm Resistor + 560pF from pin 14 & ping 6 to pin 4 (GND) -> Still no luck.

Only engine + gearbox working on my Fiat Stilo Abarth Selespeed.

If anyone is selling a working device let me know :S

Thanks
