FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

[kk159]

Hello guys,

I'm new here and I already red whole thread. You are doing great job! Unfortunately I didn’t' find my OBD device (ELM327 Bluetooth mini) modification.
So, I'd like to mode my ELM327 because it won’t work with my Alfa 159 and ECUScan 3.6.2.

I'm receiving:
OMMAND: ATZ
RESPONSE: ATZ ELM327 v2.1>
COMMAND: ATI
RESPONSE: ATI ELM327 v2.1>
COMMAND: ATE0
RESPONSE: ATE0 OK>
COMMAND: ATL0
RESPONSE: OK>
COMMAND: ATH0
RESPONSE: OK >COMMAND: ATSPC
RESPONSE: OK>
COMMAND: ATS0
RESPONSE: OK>
COMMAND: ATCAF0
RESPONSE: OK>
COMMAND: ATCFC0
RESPONSE: ?>
COMMAND: ATCRA 7B0
RESPONSE: ?>
COMMAND: ATSH 7B0
RESPONSE: ?>
COMMAND: ATAT1
RESPONSE: OK>
COMMAND: ATST41
RESPONSE: OK>
COMMAND: ATBI
RESPONSE: OK>
WARNING: This interface is not compatible with ELM 327 1.3! Will not connect to any CAN module.

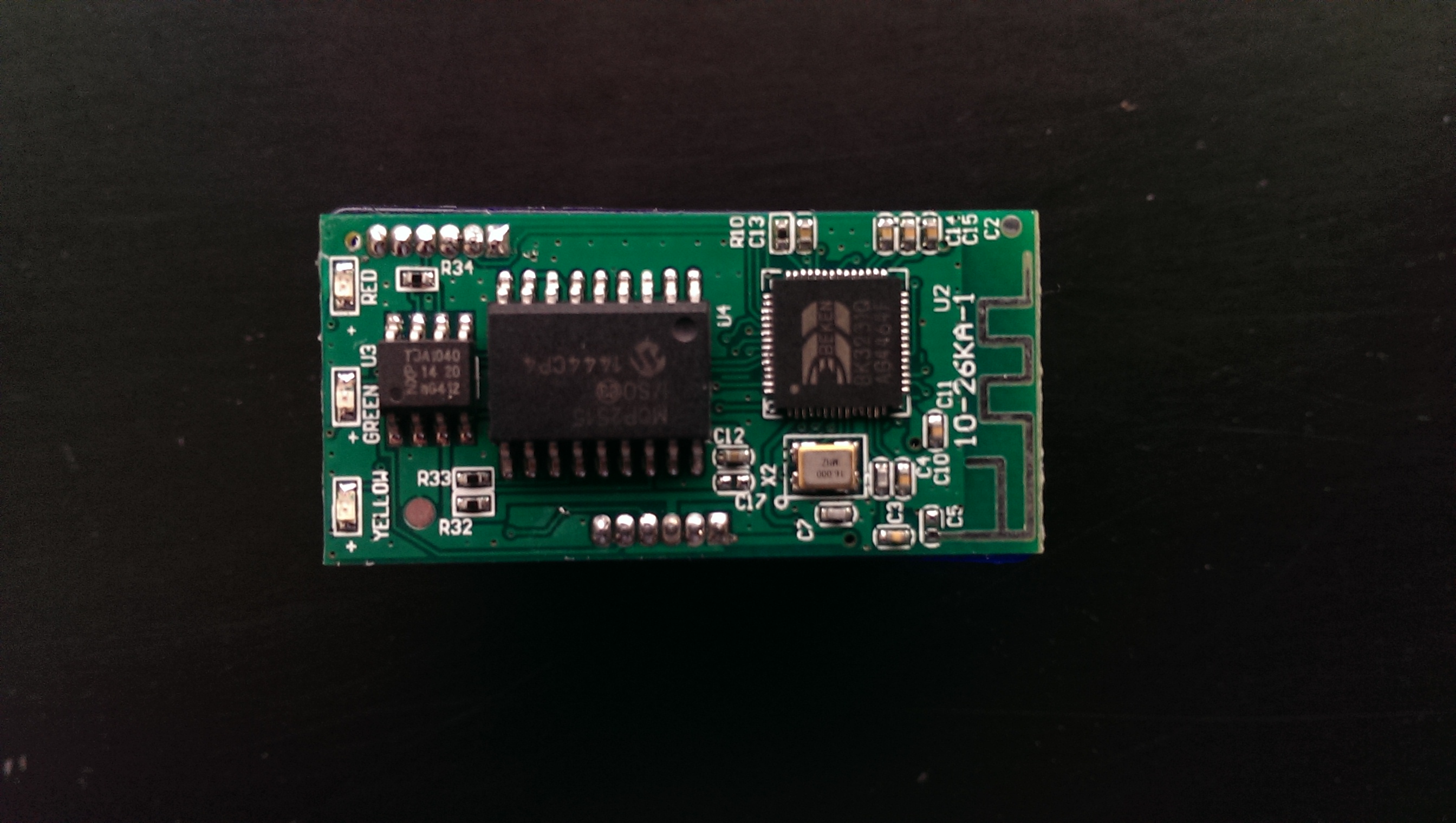

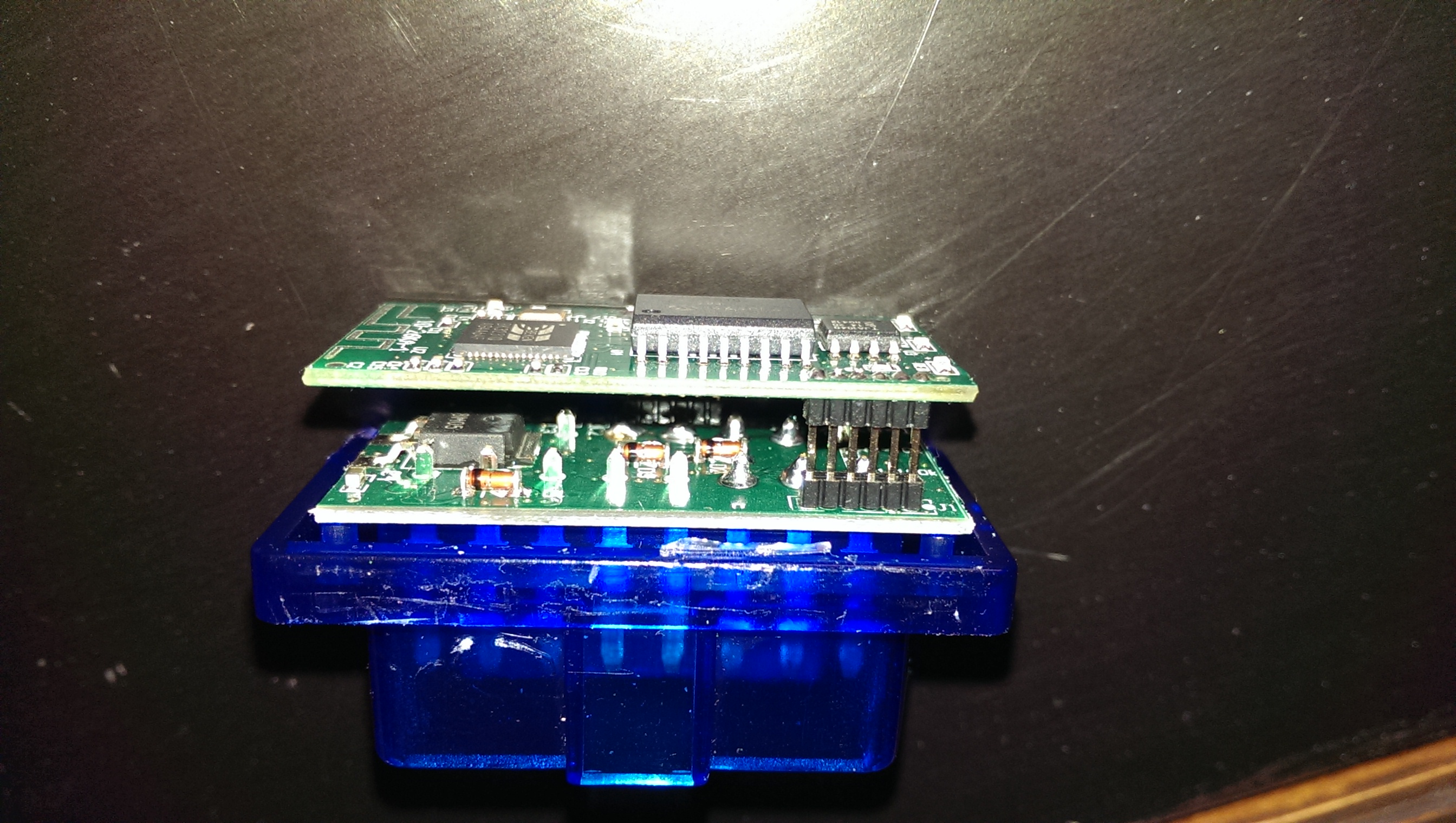

I’ll be grateful to you if you can help me with modification? Here are pictures of my device and if needed I can unsolder upper circlet board to get pictures from inside.
Thx in advanced for your help.

[Alfaeddy]

Hello

But your interface has already been repeatedly described here !!

The Interface v2.1 not operate with MES or AlfaOBD
Unfortunately, I do not know any of the current to be purchased Mini ELMs the
are kopatibel with MES.

Greeting Eddy

[kk159]

But I purchased it from ebay as "Mini ELM327 V1.5 OBD2"...I'm not so deep in this topic to see differences, but probably you see on pictures that I received newer version; Am I right?

Hello

But your interface has already been repeatedly described here !!

The Interface v2.1 not operate with MES or AlfaOBD
Unfortunately, I do not know any of the current to be purchased Mini ELMs the
are kopatibel with MES.

Greeting Eddy

[mitix]

Hello Mitix

Unfortunately, your image is not very clear

But if I am right should be on the back of the bridge resistor R2.

And make time a screen from the MES Interface Test, and please put the one here
let's see if MES can work with this EL
Because now there are many interface that can no longer work with MES or AlfaOBD

Greeting Eddy

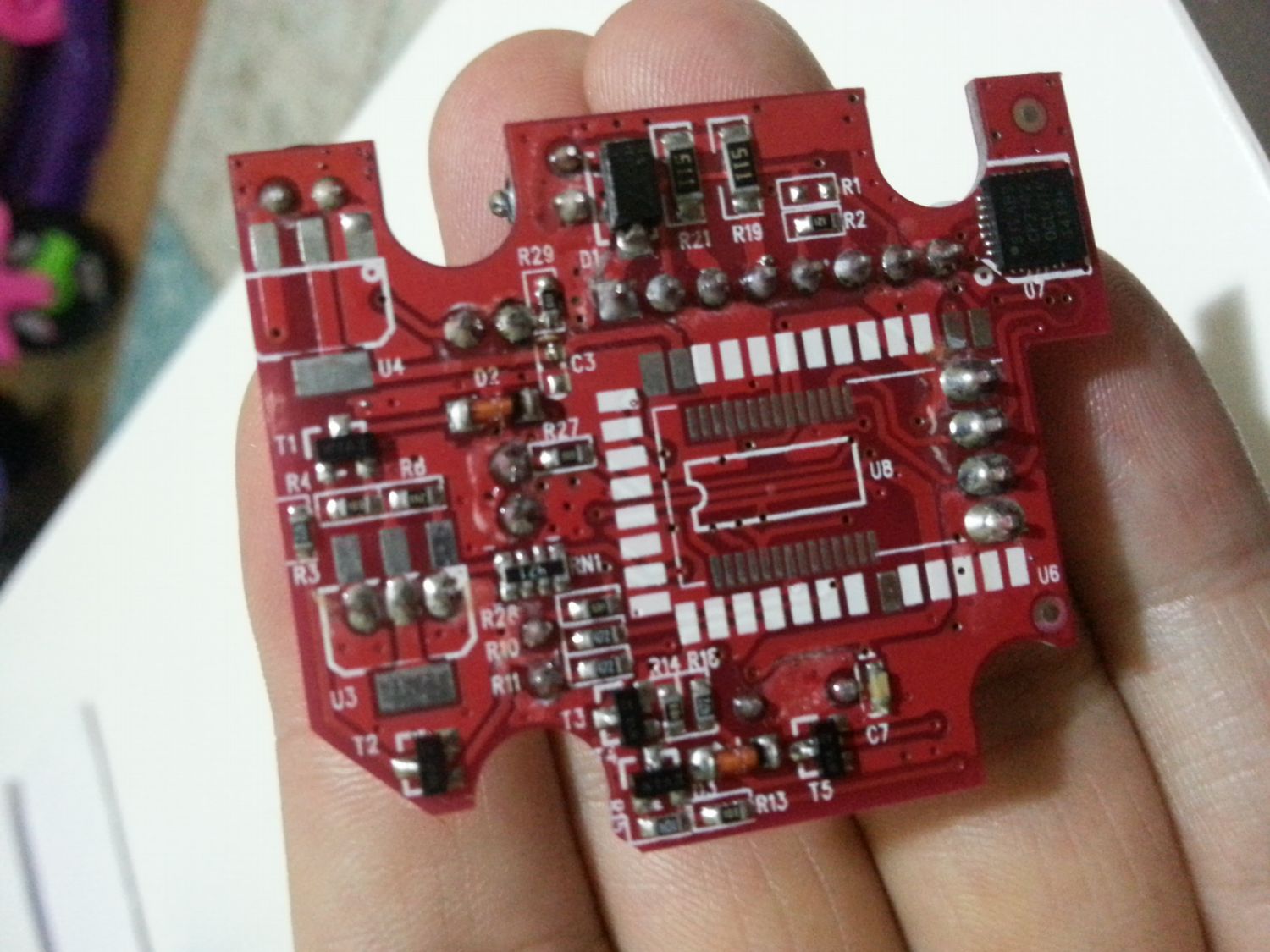

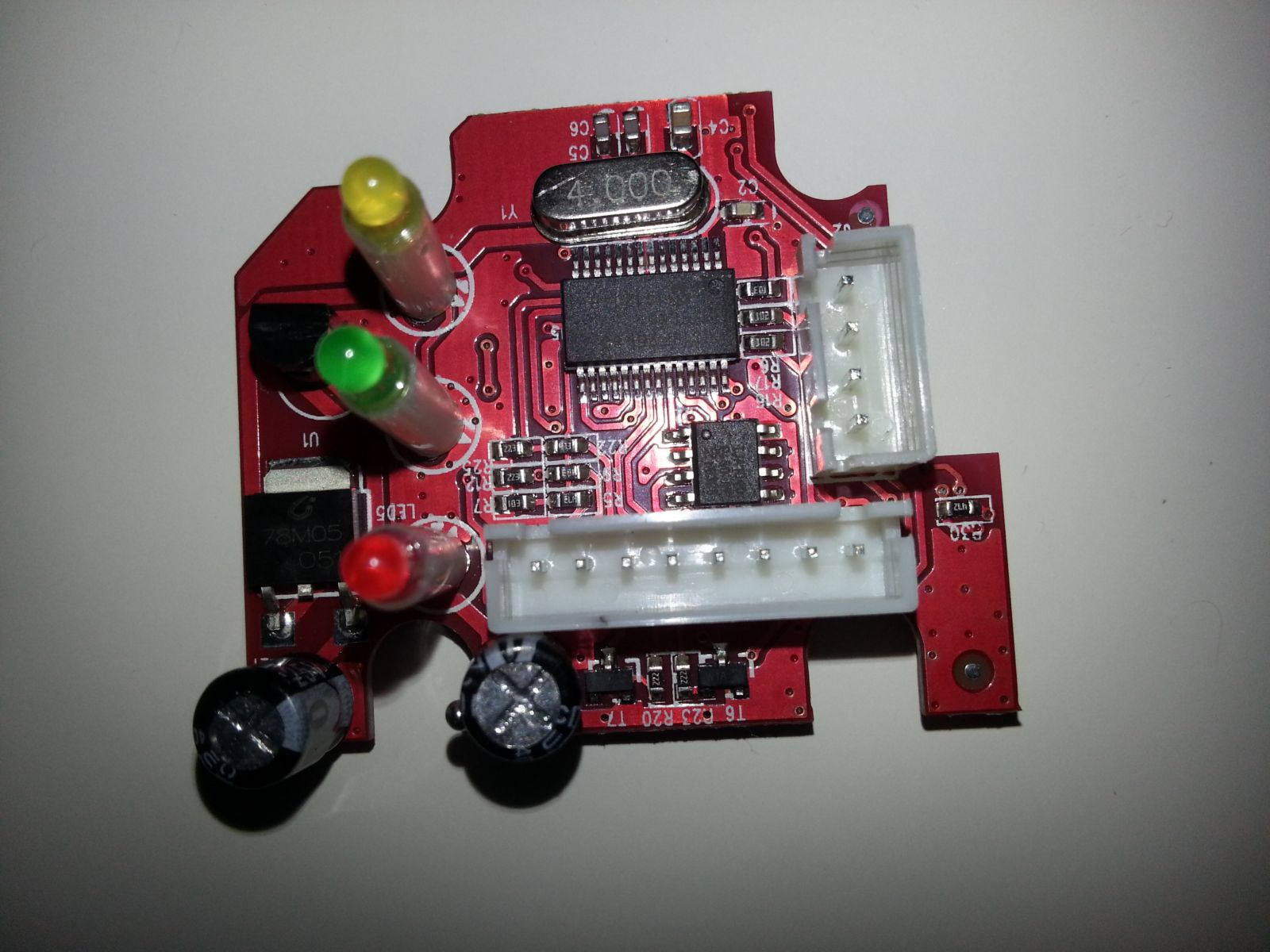

hi .. OK i think this pictures clear..

and interface test ...

connect to motor but dont connect other s

COMMAND: ATZ
RESPONSE: ELM327 v1.5 >

COMMAND: ATI
RESPONSE: ATI
ELM327 v1.5 >

COMMAND: ATE0
RESPONSE: ATE0
OK >

COMMAND: ATL0
RESPONSE: OK >

COMMAND: ATH0
RESPONSE: OK >

COMMAND: ATSPC
RESPONSE: OK >

COMMAND: ATS0
RESPONSE: OK >

COMMAND: ATCAF0
RESPONSE: OK >

COMMAND: ATCFC0
RESPONSE: OK >

COMMAND: ATCRA 7B0
RESPONSE: OK >

COMMAND: ATSH 7B0
RESPONSE: OK >

COMMAND: ATAT1
RESPONSE: OK >

COMMAND: ATST41
RESPONSE: OK >

COMMAND: ATBI
RESPONSE: OK >

This interface is compatible with ELM 327 1.4! Should connect properly with all CAN modules.

[mitix]

pls help me which resistor is destroy? r2 ?

and Should I make 6-1 / 14-9 / 7-12 ?

[Alfaeddy]

pls help me which resistor is destroy? r2 ?

and Should I make 6-1 / 14-9 / 7-12 ?

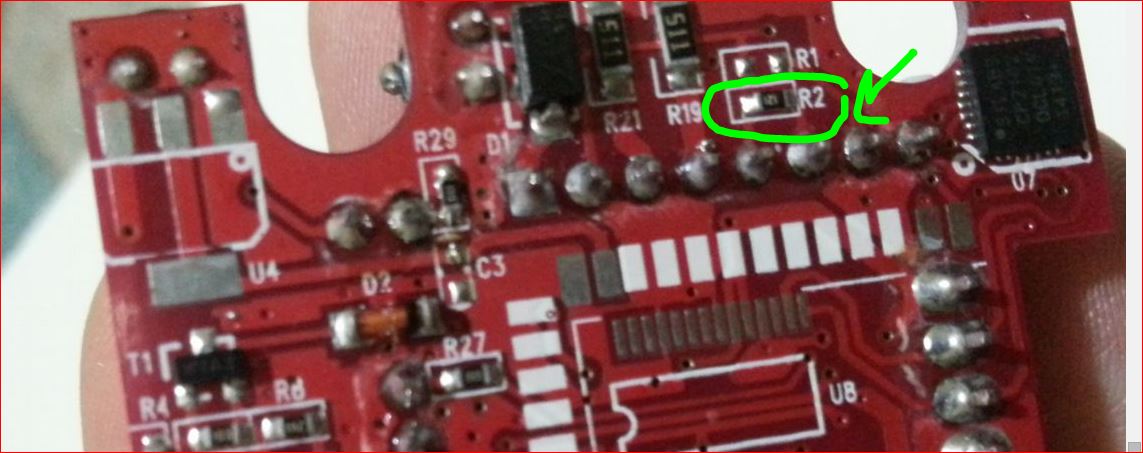

Hello

This is the right one


Greetings Eddy

[Alfaeddy]

But I purchased it from ebay as "Mini ELM327 V1.5 OBD2"...I'm not so deep in this topic to see differences, but probably you see on pictures that I received newer version; Am I right?

Hello

But your interface has already been repeatedly described here !!

The Interface v2.1 not operate with MES or AlfaOBD
Unfortunately, I do not know any of the current to be purchased Mini ELMs the
are kopatibel with MES.

Greeting Eddy

Hello KK159

Unfortunately, the traders also do not know what software was burned to the PIC.
The dealer is also hereinafter referred to as the manufacturer's specifications

I also bought Interface V1.5 but get the version v2.1
And these have given back and get my money back.

Greeting Eddy

[mitix]

pls help me which resistor is destroy? r2 ?

and Should I make 6-1 / 14-9 / 7-12 ?

Hello

This is the right one


Greetings Eddy

thax a lot ... İ did . OK...

[kk159]

Thx Eddy!

But I purchased it from ebay as "Mini ELM327 V1.5 OBD2"...I'm not so deep in this topic to see differences, but probably you see on pictures that I received newer version; Am I right?

Hello

But your interface has already been repeatedly described here !!

The Interface v2.1 not operate with MES or AlfaOBD
Unfortunately, I do not know any of the current to be purchased Mini ELMs the
are kopatibel with MES.

Greeting Eddy

Hello KK159

Unfortunately, the traders also do not know what software was burned to the PIC.
The dealer is also hereinafter referred to as the manufacturer's specifications

I also bought Interface V1.5 but get the version v2.1
And these have given back and get my money back.

Greeting Eddy

[mitix]

I want to ask something . I changed the license plate lamp and LED daytime lights. but it is burning lamp failure. ı want disable fault lamb
