Croma Odometer Values

Report any bugs found in Multiecuscan and suggest new functionality to be implemented
Post Reply
s130
Posts: 997
Joined: 20 Jan 2010, 10:07
Location: Wrexham, North Wales

Croma Odometer Values

Post by s130 »

Something has happened to Croma odometer values in latest release. Engine ECU reads 0.0km instead of 81076km.

Back on 17 April 2011 we have an odometer value which is incorrect: (on 22 April 2011 milage was actually 72,350km / 44,966 miles)

ECU ISO Code: FD 86 B9 04 15
17/04/2011 18:11:23
CONNECTED TO:
FIAT CROMA '05 1.9 MJET 16V
Bosch EDC16C39 CF4/EOBD Diesel Injection (1.9, 2.4)
--------------------------------------------------------------

ECU ISO code: FD 86 B9 04 15
FIAT drawing number: 55202700
Hardware number: 0281012148
Hardware version: 00
Software number: 1037375844
Software version: 3342
Homologation number: 19442
ECU programming date: 07/08/2005

READ PARAMETERS:
Odometer: km

READ PARAMETERS:
Odometer: 18,411.9 km

READ PARAMETERS:
Odometer: 18,411.9 km



Now we have 0.0 for the ECU and a correct value of 81,076 km from the Marelli Instrument Panel

ECU ISO Code: FD 86 B9 04 15
16/09/2011 12:09:52
CONNECTED TO:
FIAT CROMA '05 1.9 MJET 16V
Bosch EDC16C39 CF4/EOBD Diesel Injection (1.9, 2.4)
--------------------------------------------------------------

ECU ISO code: FD 86 B9 04 15
FIAT drawing number: 55202700
Hardware number: 0281012148
Hardware version: 00
Software number: 1037375844
Software version: 3342
Homologation number: 19442
ECU programming date: 07/08/2005

READING ERROR CODES:
No fault codes

READ PARAMETERS:
Odometer: km

READ PARAMETERS:
Odometer: 0.0 km

READ PARAMETERS:
Odometer: 0.0 km

AND

ECU ISO Code: 32 83 1C 04 2A
16/09/2011 12:25:33
CONNECTED TO:
FIAT CROMA '05 1.9 MJET 16V
Marelli Instrument Panel
--------------------------------------------------------------

ECU ISO code: 32 83 1C 04 2A
FIAT drawing number: 51735926
Hardware number:
Hardware version: 00
Software number: 04000005303
Software version: 0406
Homologation number:
ECU programming date: 08/30/2005

READ PARAMETERS:
Odometer: 81076 km

READ PARAMETERS:
Odometer: 81076 km

READ PARAMETERS:
Odometer: 81076 km
Fiat Strada/Ritmo Abarth 130TC, Barchetta 2005 , 500X Cross Plus
djdisco
Posts: 2
Joined: 15 Sep 2011, 17:49
Location: Slovakia
Contact:

Re: Croma Odometer Values

Post by djdisco »

My odometer shows 0,0 km. I have Multiecuscan 3.2 Registered, ELM327 or VAG-COM..
Attachments

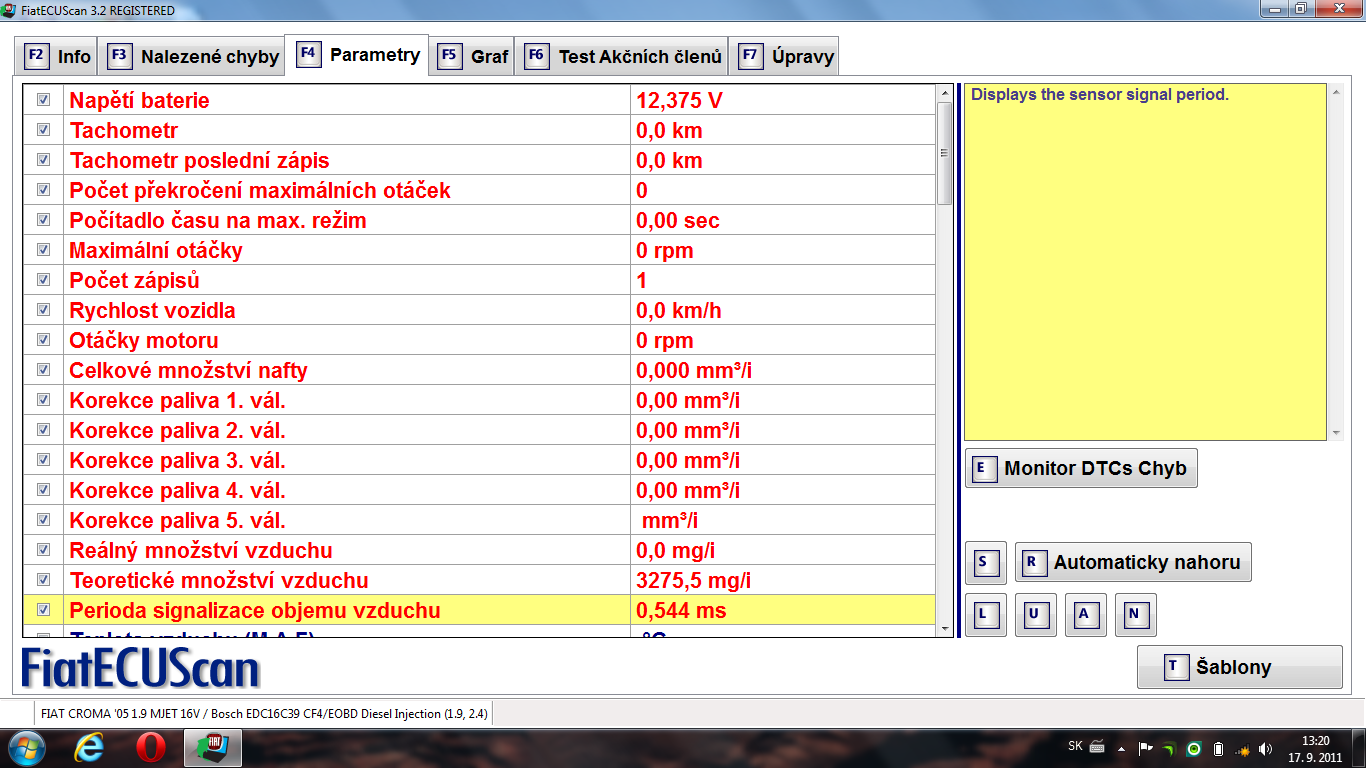

Odometer 0,0 km
Odometer 0,0 km
Fiat Croma 1.9 JTDm 16V 110kW(2007), Fiat Stilo 1.9 JTD 8V 85kW(2003), EX: Fiat Brava 1.9 JTD 74kW(2000)
