fix mini elm 327 bluetooth

Post by barbosa »

Hi everyone.

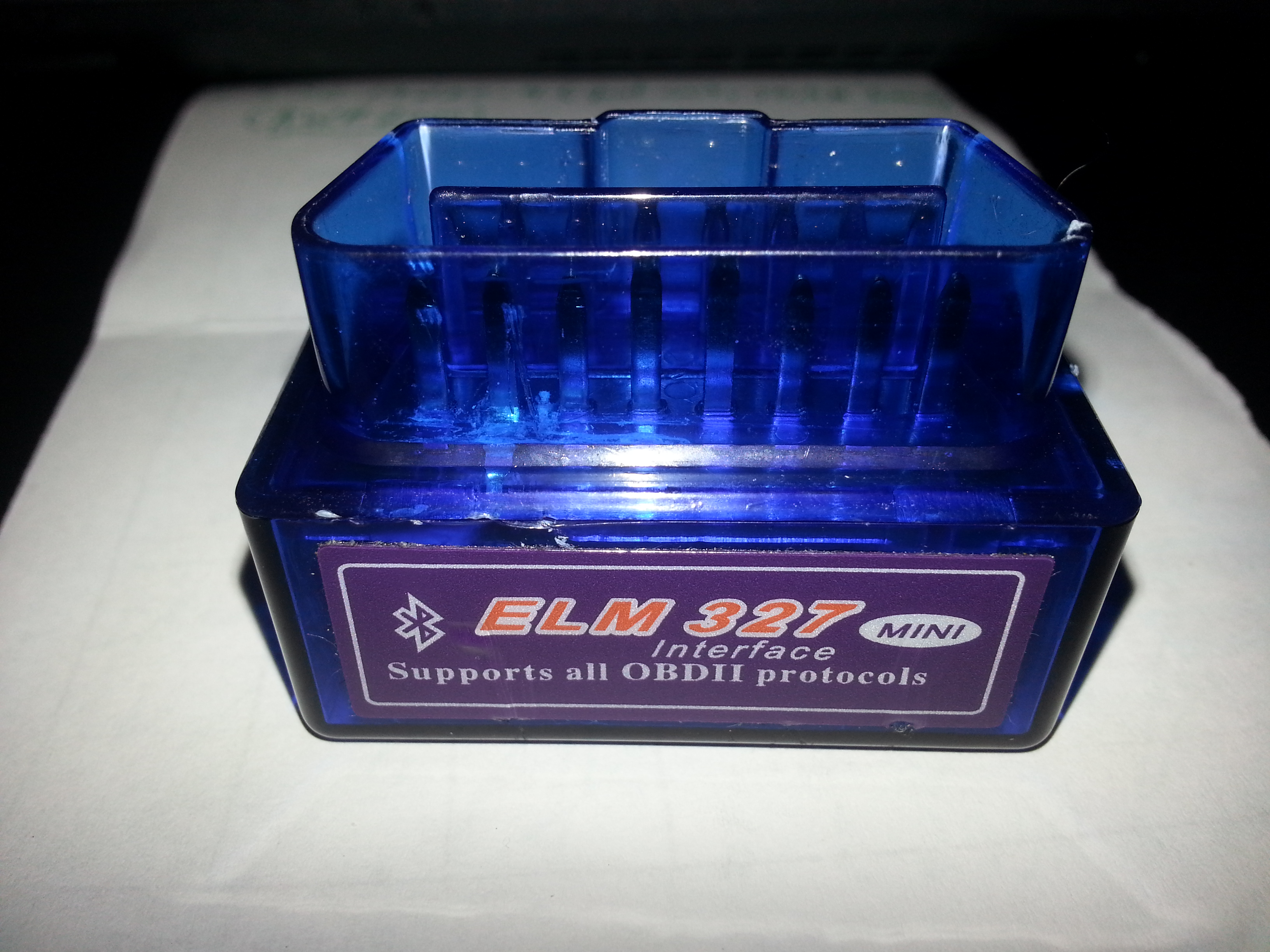

I've bought this elm 327 and it doesnt read the ecu in my car.
Anyone knows how to fix it or whats the problem?
Thanks.
Attachments
Top
barbosa
Posts: 2
Joined: 10 Jul 2015, 23:06

Re: fix mini elm 327 bluetooth

Post by barbosa »

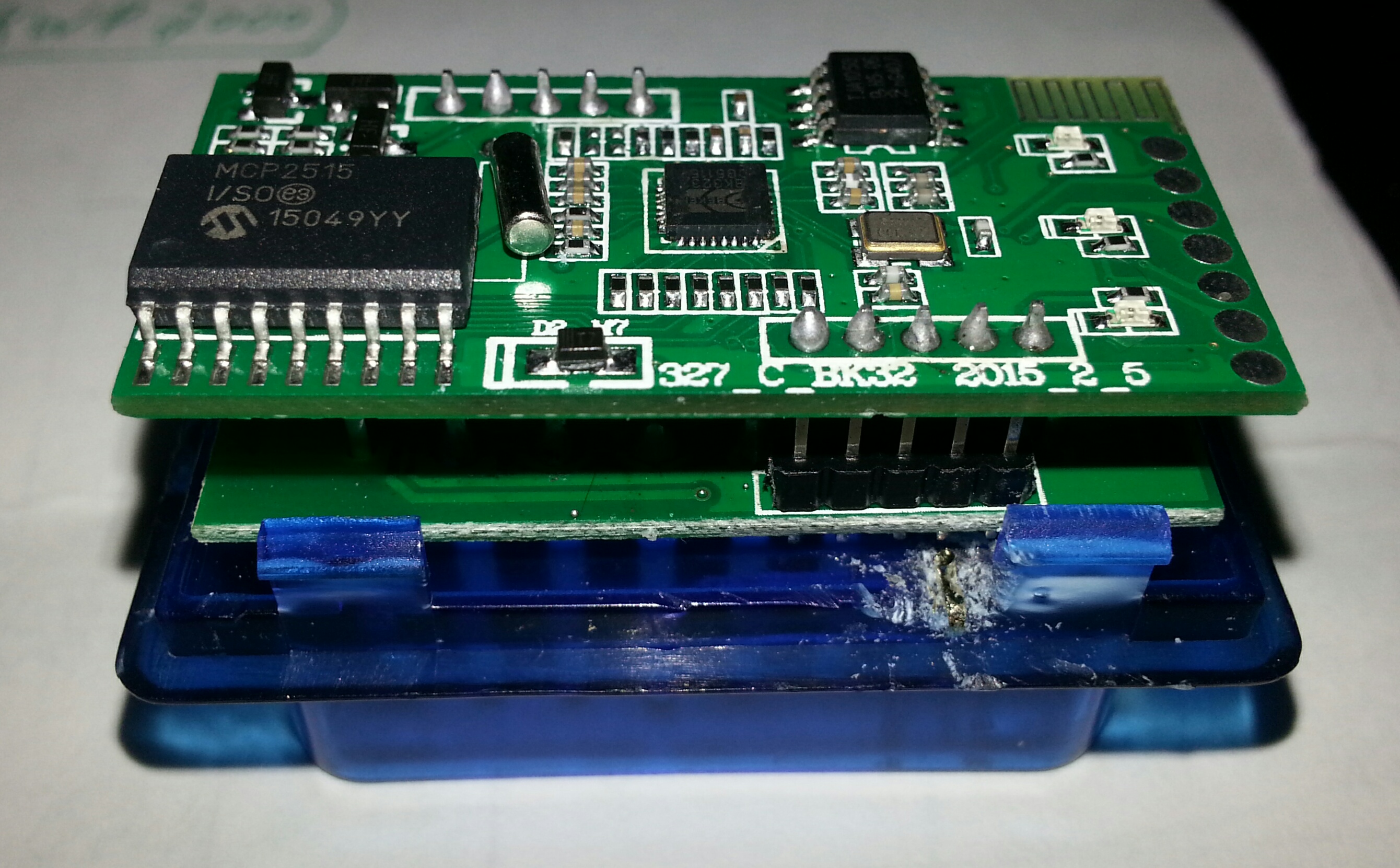

Hi. Here is a pic of the elm 327 mini opened
Thanks for any help.
Attachments
Top
happiness133
Posts: 3
Joined: 04 Dec 2015, 07:51

Re: fix mini elm 327 bluetooth

Post by happiness133 »

Discussed many times. Read and google.
Look for a 120 ohm resistor between 6 and 14 pins, remove, happy.
