FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

Multiecuscan usage help and guides
hlqq
Posts: 3
Joined: 28 Sep 2014, 23:02

Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

Post by hlqq »

¡¡¡¡Thanks a lot!!!!!!!

hlqq
Matees
Posts: 12
Joined: 29 Sep 2014, 19:29

Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

Post by Matees »

Hello,
I try to solve my problem. I have Alfa Romeo 159 and I would like to connect to airbags via my ELM327 BT interface. Connection to engine is working well. I spent here some hours, so my question is: Shall I remove resistor 121 after making 2 parts from one interface? I think, that there is a Picture of similar interface here: viewtopic.php?f=5&t=1493&hilit=bluetooth&start=1280

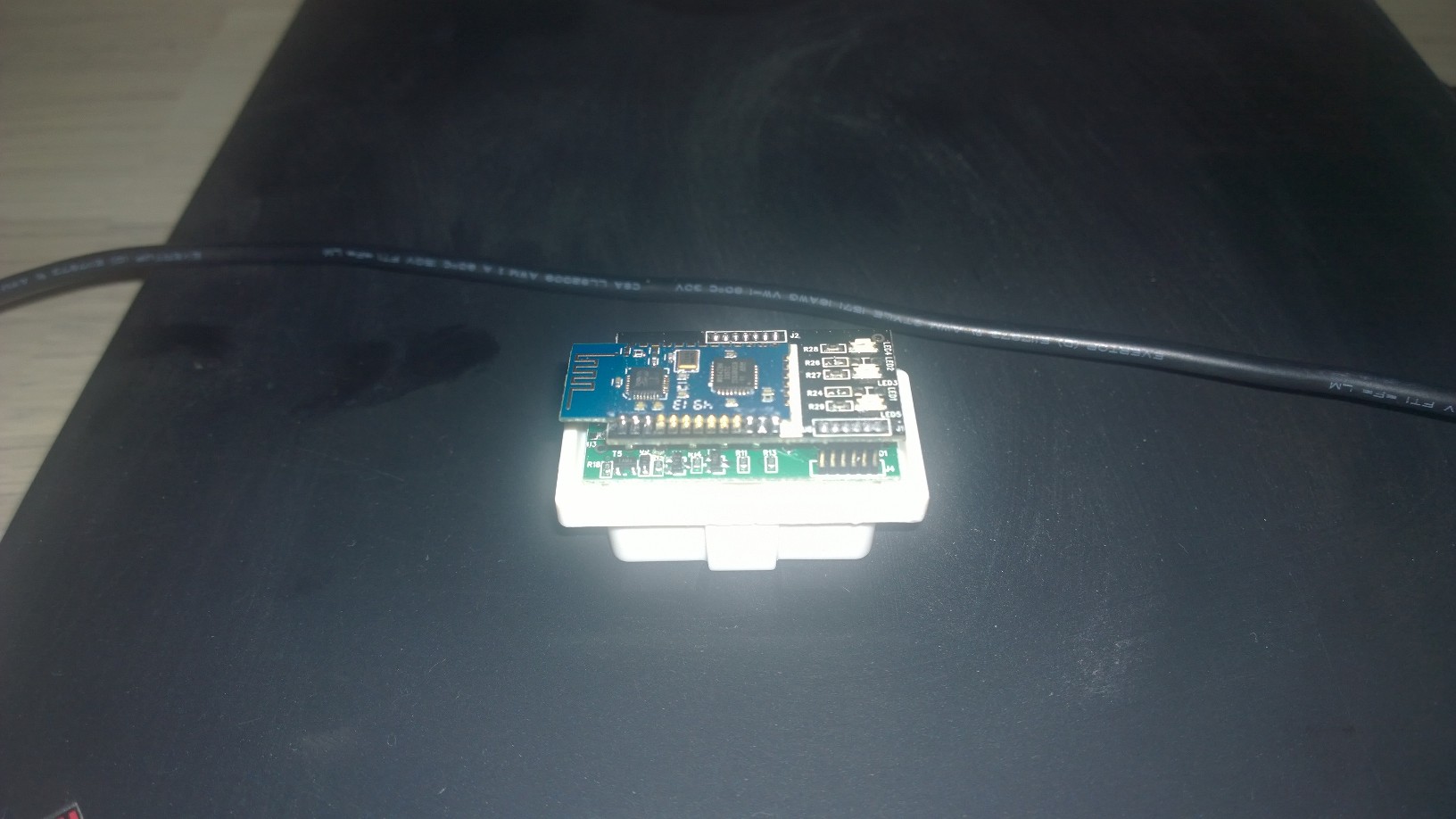

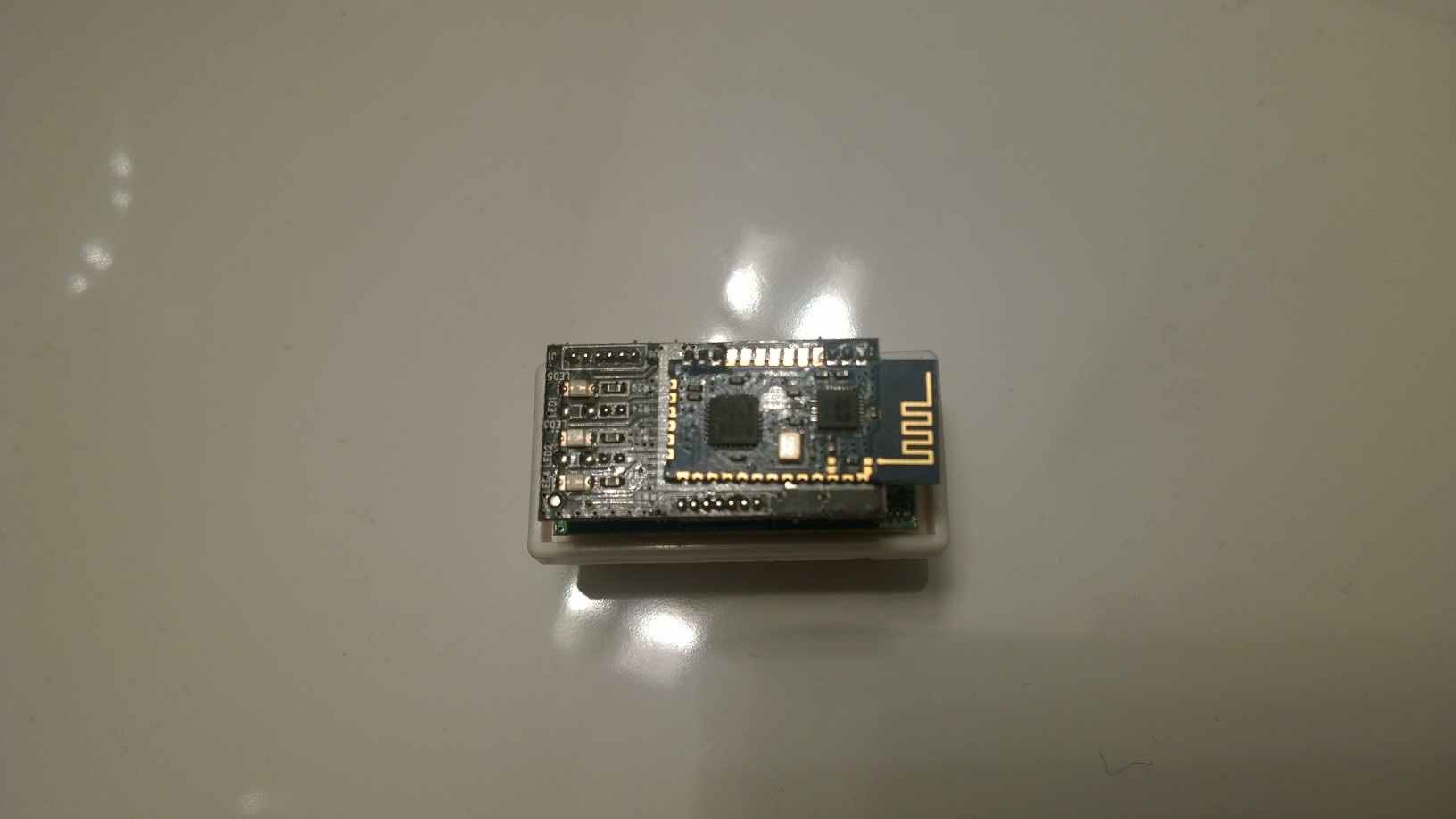

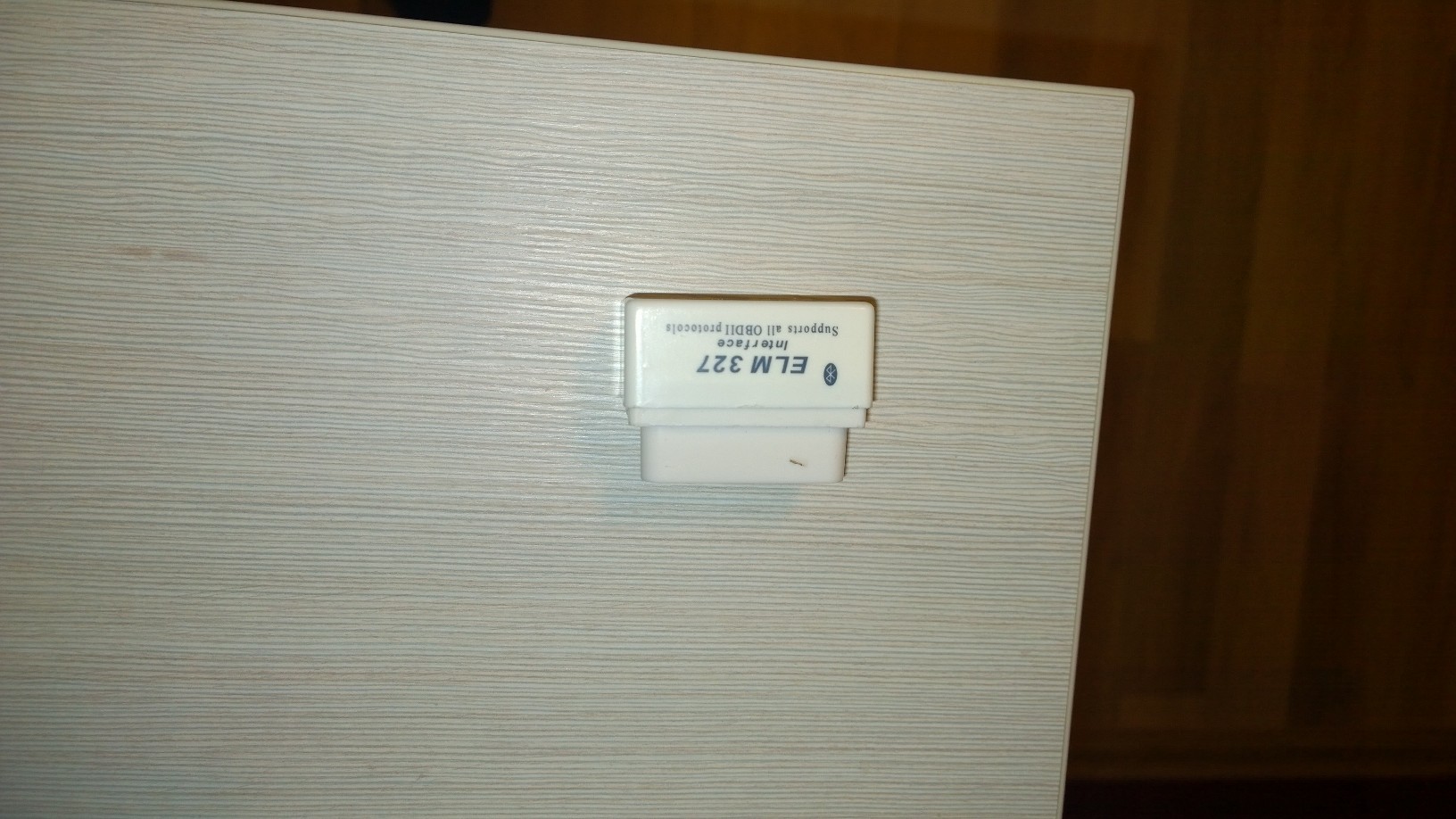

I attach some pictures of my interface, but it's almost nothing to see...
Thanks in advance for your help.
Attachments
Alfaeddy
Posts: 1350
Joined: 19 Feb 2011, 17:43
Location: Germany , Aarbergen

Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

Post by Alfaeddy »

Hello Matees

The bridgeresistor sits on the lower PCB
and is designated R2.

Your boards are soldered together but unfortunately
therefore you get very difficult at this resistor


With some skillful of bridgeresistor has to be removed anyway, even without the boards to separate

I have this already made ​​this mini ELM


Greetings Eddy
WP_20140929_006 markiert.jpg
WP_20140929_006 markiert.jpg (116.23 KiB) Viewed 8209 times
Matees
Posts: 12
Joined: 29 Sep 2014, 19:29

Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

Post by Matees »

Hi Eddy,
thanks a lot for your quick help. Resistor is out now. I will check it tomorrow on my car.
Herpez
Posts: 9
Joined: 03 Oct 2014, 19:04

Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

Post by Herpez »

Hi friends...
Sorry for such a noob question but how to you open the elm327 to access the board?
Do you cut the plastic?
Mine is this

Alfaeddy
Posts: 1350
Joined: 19 Feb 2011, 17:43
Location: Germany , Aarbergen

Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

Post by Alfaeddy »

hello

Opening the is comparatively easy
simply press lightly with a sharp knife into the space around the casing of an other to solve
In part, the glued
others are just clipped
and immediately go apart


Greetings Eddy
Herpez
Posts: 9
Joined: 03 Oct 2014, 19:04

Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

Post by Herpez »


Here is my board.

Can you tell me what resistor needs to go out?

Thanks
Alfaeddy
Posts: 1350
Joined: 19 Feb 2011, 17:43
Location: Germany , Aarbergen

Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

Post by Alfaeddy »

hello

Wow, now that's a violent opening :D :D

The components on the board are very difficult to detect
unfavorable angle

But the R2 should be the bridge resistance
There are in this thread several times already this ELM Interface

The second picture is for comparing

Greetings Eddy
IMG_20141003_233836 markiert.jpg
IMG_20141003_233836 markiert.jpg (128.39 KiB) Viewed 8141 times
ELM mini markiert.jpg
ELM mini markiert.jpg (225.77 KiB) Viewed 8141 times
Herpez
Posts: 9
Joined: 03 Oct 2014, 19:04

Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

Post by Herpez »

Alfaeddy wrote:hello

Wow, now that's a violent opening :D :D

The components on the board are very difficult to detect
unfavorable angle

But the R2 should be the bridge resistance
There are in this thread several times already this ELM Interface

The second picture is for comparing

Greetings
Thanks found the r2 but seems impossible to get there. Is possible to detach the two boards or are they soldered?
Alfaeddy
Posts: 1350
Joined: 19 Feb 2011, 17:43
Location: Germany , Aarbergen

Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

Post by Alfaeddy »

Hello Herpez

The two boards are soldered correctly
If you are careful you can break out the resistor with a stable needle. But beware that the interconnects do not break.

You can also with a desoldering pump desoldering the solder joints and separate the two boards.
Remove resistor and solder the boards again

Greetings Eddy
