FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

[DraganUS]

Can someone explain me how to open up this thing? I have this black casing/orange top with leds...

[DraganUS]

http://www.dodaj.rs/f/1G/OO/49f1zEXP/dscf3010.jpg

http://www.dodaj.rs/f/3j/L5/3mWn5GhK/dscf3014.jpg

http://www.dodaj.rs/f/1j/hX/2JhycC3n/dscf3015.jpg

In the lower left corner I do think it is written R4 but I am not sure. Can someone help me.

Thanks a lot.

trying to read fiat stilo 1.8 2002 body and rest...

[Alfaeddy]

Hello

Your interface has no bridge resistor , it should directly go to the CAN bus.

At your Stilo you've got just the body of which is read via CAN bus.

But ECU and ABS are to read??

After an interface, a setting must be trouble, or if the wrong driver is installed.


Greetings Eddy

[DraganUS]

Hey Eddy,

I am able to connect to most of the option but cant connect to airbag and abs.

I am assuming that correct driver is installed since I am able to connect to rest of the option.

I have tried to connect to abs but it is asking me for pin 1/green, and for airbag it is asking me for pin 3/red

any clues?

[Jordandc]

Eddy check out My thread.

[Alfaeddy]

Hello DraganUS

But please write down times, which controls you can read?

For ABS and steering and possibly Xenon you need the green adapter that is properly

For the airbag you need a different interface. it can not read your ELM interface.


And now, it is important
What controls you can read else?


Greetings Eddy

[DraganUS]

Hello DraganUS

But please write down times, which controls you can read?

For ABS and steering and possibly Xenon you need the green adapter that is properly

For the airbag you need a different interface. it can not read your ELM interface.


And now, it is important
What controls you can read else?


Greetings Eddy

Eddy, I am able to connect to Engine,Dashboard,Service,Body.

I just want to be able to join Airbag. Any clues?

[Alfaeddy]

Hello Dragonus

Yes, of course. You would have written the equal?

You have the wrong interface!
For your airbag on Stilo you need a KKL interface!

With the ELM interface so your airbag is not there yet with an old log is read.

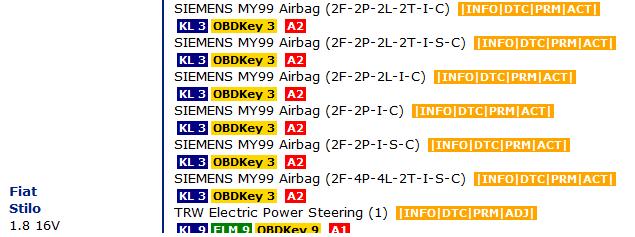

In the list you can see this


Either buy a KKL adapter with A2 (red)
or directly a reversible KKL Interface

Greetings Eddy

[DraganUS]

Is there a way to modify this one to be able to read airbag? Not sure but I saw couple of pages back picture when I was looking for a board like mine a guy with same adapter had some wires soldered with switch to I assume short pins to be able to read?

Maybe I am wrong, but is that possible?

[Alfaeddy]

Hello Draganus

No, this is not possible!
Your airbag control unit will read about an older protocol

And this protocol can not read an ELM interface

It is to be read only with the interface can read the log KW1281


Greetings Eddy
