Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 03 Aug 2013, 09:46
by aaa456
Hi Alfaeddy,
well, that's the problem. Look at the first picture below.
Is this pin marking correct?:

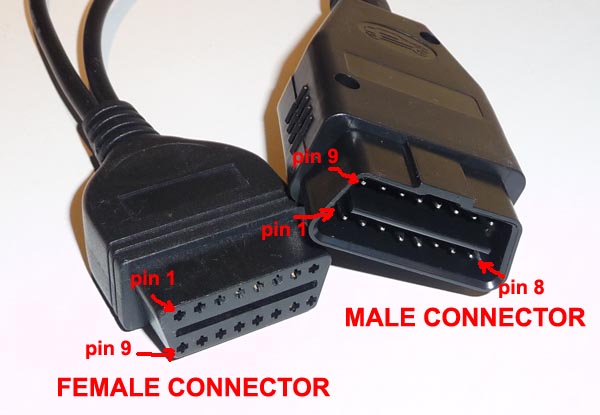

- OBDConn.jpg (70.17 KiB) Viewed 5903 times
And this is my adapter (PINs are marked as on picture above):
- IMG_20130803_112507_mod.jpg (47.16 KiB) Viewed 5903 times
Is this correct pin-out?
Thanks.
M.
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 03 Aug 2013, 11:11
by Alfaeddy
Hello aaa456
The adapter (2nd picture) must go to the pin 1 on the connector pin 6 of the female connector
And pin 9 of the connector going to the pin 14 of the female connector
Is this so? on your adapter?
Your labeling of the pins is correct
Look again at the picture
Greetings Eddy

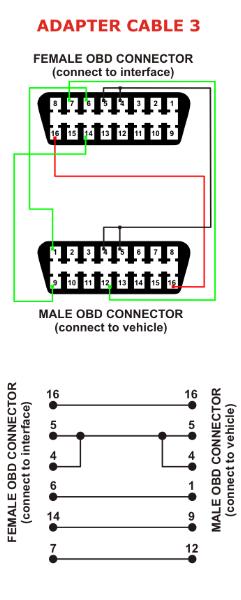

- A3.jpg (26.44 KiB) Viewed 5900 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 03 Aug 2013, 11:18
by Alfaeddy
Hello aaa456
Your image here have once more shown how the CAN bus must be Connections
Greetings Eddy

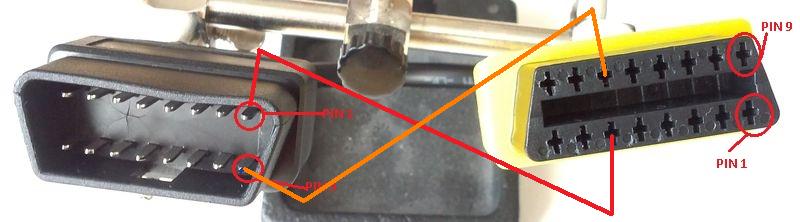

- Adapter A3.jpg (30.99 KiB) Viewed 5900 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 04 Aug 2013, 08:29
by aaa456
Hi Alfaeddy,
yes, that's how it is connected. I was wrong, adapter is connected correctly (I was probably looking on it upside down
). Except one difference. According the scheme pins 4 and 5 should be connected together (short-circuit) but in my adapter they are just connected 4-4 and 5-5 (and not between pins). But maybe this is not a problem ...
So I really don't know where could be a problem ...
It's true that ELM interface connected directly to OBD in car is tighter than adapter (very loose). I tried to push it and hold it while I was trying to scan modules but no change ...
Thanks.
M.
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 04 Aug 2013, 09:25
by Alfaeddy
aaa456 wrote:Hi Alfaeddy,
yes, that's how it is connected. I was wrong, adapter is connected correctly (I was probably looking on it upside down
). Except one difference. According the scheme pins 4 and 5 should be connected together (short-circuit) but in my adapter they are just connected 4-4 and 5-5 (and not between pins). But maybe this is not a problem ...
Code: Select all
Hello M.
Right, pins 4 & 5 are not a problem because both pins are competent for the mass
And the pin 16 for the power supply interface is! Is this so? on your Adpter?
otherwise I would not remember where your connection error
Greetings Eddy
So I really don't know where could be a problem ...
It's true that ELM interface connected directly to OBD in car is tighter than adapter (very loose). I tried to push it and hold it while I was trying to scan modules but no change ...
Thanks.
M.
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 04 Aug 2013, 20:40
by aaa456
Hi Alfaeddy,
yes, pin 16 is connected correctly (pin 16 to pin 16). I have to check it even more deeper ....
Thanks.
M.
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 07 Aug 2013, 11:51
by yoko

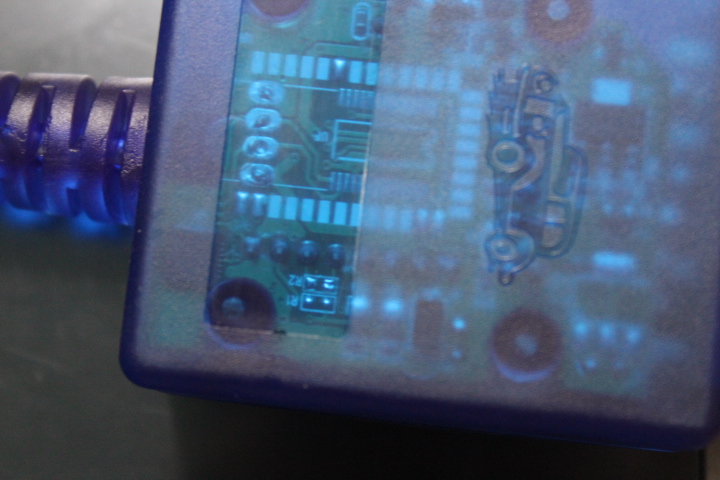

I removed the resistance as shown but i still can't get more than the engine when i scan
- IMG_2464.JPG (179.73 KiB) Viewed 5860 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 07 Aug 2013, 13:25
by Alfaeddy
Hallo Yoko
Du hast unterschiedliche ELM Interface ??? ein blaues und dann ein schwarzes
Dann auch verschiedene Autos ?? Linea und Grande Punto
Der Linea hat für ECU , ABS keinen CAN Bus , daher kann der Brückenwiderstand nicht der Fehler sein
Für das ABS benötigst du den Adapter A1
Die anderen Steuerungen werden über CAN Bus gelesen , bei denen kann es der Brückenwiderstand sein der Probleme macht
Dann einen Grande Punto , bei diesem werden alle Steuerungen über CAN Bus gelesen
für alle Steuerungen außer ECU , Lenkung und ABS wird der Adpter A3 benötigt.
Ich denke du solltest mal mit diesem Treiber versuchen.
http://www.ftdichip.com/Drivers/VCP.htm
Und überprüfe noch mal die Einstellungen und stelle die Wartezeit der COM ports auf 1 (statt 16)
Gruß Eddy
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 07 Aug 2013, 15:00
by yoko
the first elm was borrowed from a friend then i bought one because i didn't want to open his interface
my car is a linea not a grande punto
i will update my drivers and will let you know
btw i can't read German
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 08 Aug 2013, 11:18
by Greatjoe
Hi,
I have tried looking for my ELM 327 bluetooth module on this tread but can't seem to find it (The thread is so long now).
Here are photos of the adaptor, Does anyone know what resistor I need to remove on this in order to access the body computer?
Thanks
