Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 17 May 2013, 13:39
by Alfaeddy
Hello acafaro

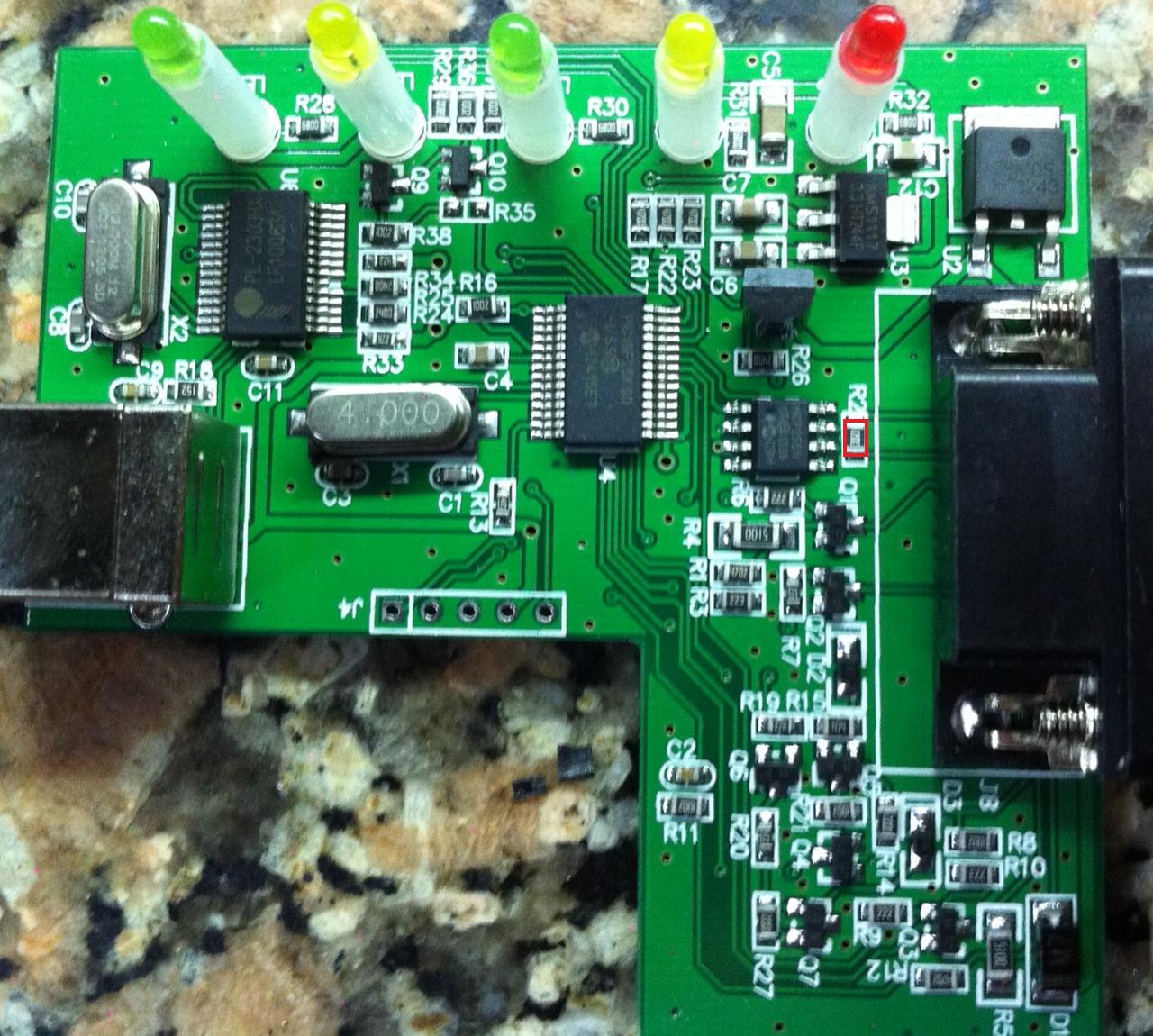

Remove the Resistor in an red Frame , and your ELM Interface
can read now CAN Bus
Greetings Eddy
- la foto markiert.jpg (245.01 KiB) Viewed 8290 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 19 May 2013, 17:35
by maptod
Hi.
I`ve bought an ELM 327 v1.5 and i can`t connect nothing other than the engine on Fiat Stilo 1.9JTD
This is the inside of the box
http://www.prikachi.com/images/927/6126927B.jpg
http://www.prikachi.com/images/931/6126931d.jpg
Can someone tell me what to do to make it work with CAN?
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 19 May 2013, 22:39
by Alfaeddy
Hi

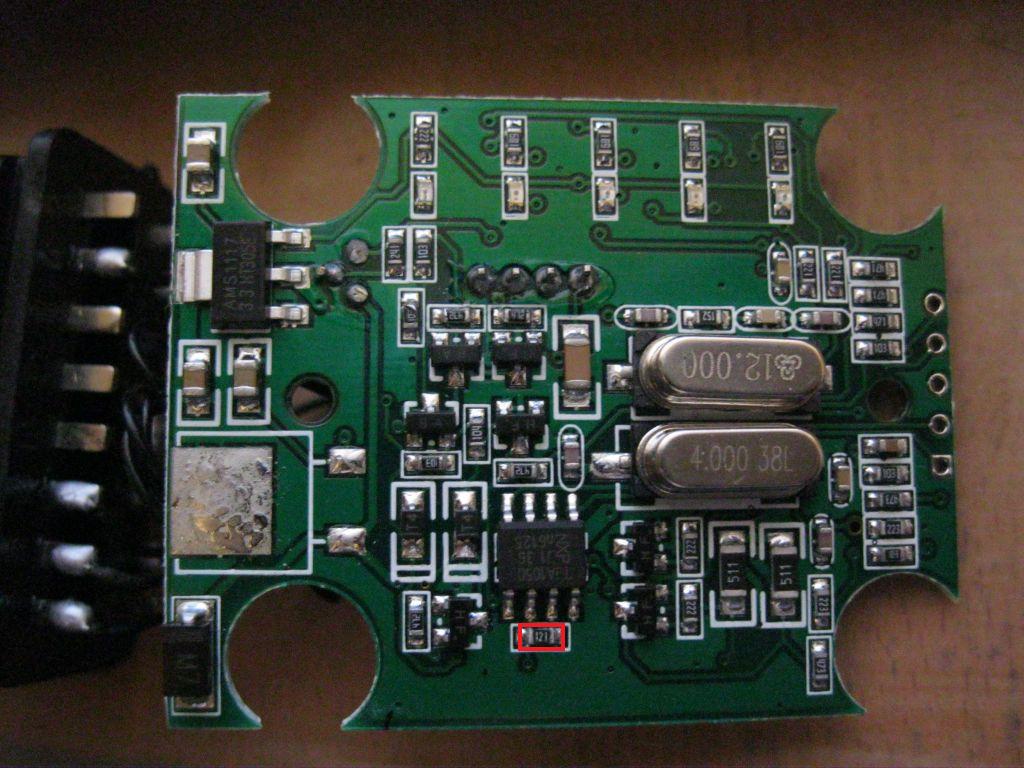

Remove the Resistor in the red Frame , and your Interface can read the CAN Bus
Greetings Eddy
- 6126927B markiert.jpg (127.37 KiB) Viewed 8274 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 20 May 2013, 07:09
by dimma_
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 20 May 2013, 08:04
by Alfaeddy
Hello Dimma_
Your picture is very small, even by larger I can hardly see anything.
Take a picture of the second bid directly from above with Macromedia
I need to read the designation of the components.
And pull the plug from the board
Greetings Eddy
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 20 May 2013, 11:08
by dimma_
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 20 May 2013, 13:18
by Alfaeddy
Hello dimma_
Unfortunately, I still can not read the codes on the components!
And the plug is still plugged into the board!
But when I see the board as
I think you found a bug in the drivers or settings
because this ELM should be able to read CAN bus without modification
Greetings Eddy
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 21 May 2013, 10:05
by jackburton
Many thanks to ALFAEDDY for the instructions on This post:(
viewtopic.php?f=5&t=1493&start=330#p10608) from which i could modify my elm327 to be able to read can bus and others units on my fiat bravo 1.9 mjet. (But how was hard to unsolder r4!)
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 21 May 2013, 15:26
by Alfaeddy
Helloc Jackburton
gladly,
Prima this has helped you the post
One can easily destroy the resistor, if you do not have suitable soldering iron.
But we must be careful not to destroy the board
Greetings Eddy
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 21 May 2013, 16:33
by beAsty
Well I tried it with my ELM 1.4 device. First I removed the 120 Ohm resistor and inserted a blank "cable" -> no luck
Then I tried to add the 2x 100 Ohm Resistor + 560pF from pin 14 & ping 6 to pin 4 (GND) -> Still no luck.
Only engine + gearbox working on my Fiat Stilo Abarth Selespeed.
If anyone is selling a working device let me know :S
Thanks
