Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 26 Apr 2013, 15:32
by Alfaeddy
Hi eddyshow
Which vehicle you would like to read it?
According to your description, it may be just this problem resistor
This Wifi ELM interface I do not know yet whether it is the resistance of R04 in your ELM I can not say
Do something, please make a picture (with Macro) from the board
I can tell you more about this
The user Alfa156sarajevo also has problems with the wifi ELM
although he has a resistor has remove from board
Greetings Eddy
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 26 Apr 2013, 19:08
by eddyshow
the vehicle is a 2003 fiat punto multijet.
I attach the picture as soon as possible
The user Alfa156sarajevo as solved?
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 27 Apr 2013, 07:14
by Alfaeddy
Hello
As far as I know he has not yet found a solution
But he says that he only has a problem with Multiecuscan
With AlfaOBD and ScanMaster should be Wifi ELM works well
But your problem seems that the CAN bus problem in this thread
will be described.
Greetings Eddy
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 27 Apr 2013, 10:39
by eddyshow
I include photos of the front and back of the interface circuit elm327 wifi.
I hope in you for the solution.
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 27 Apr 2013, 16:56
by Alfaeddy
Hello eddyshow

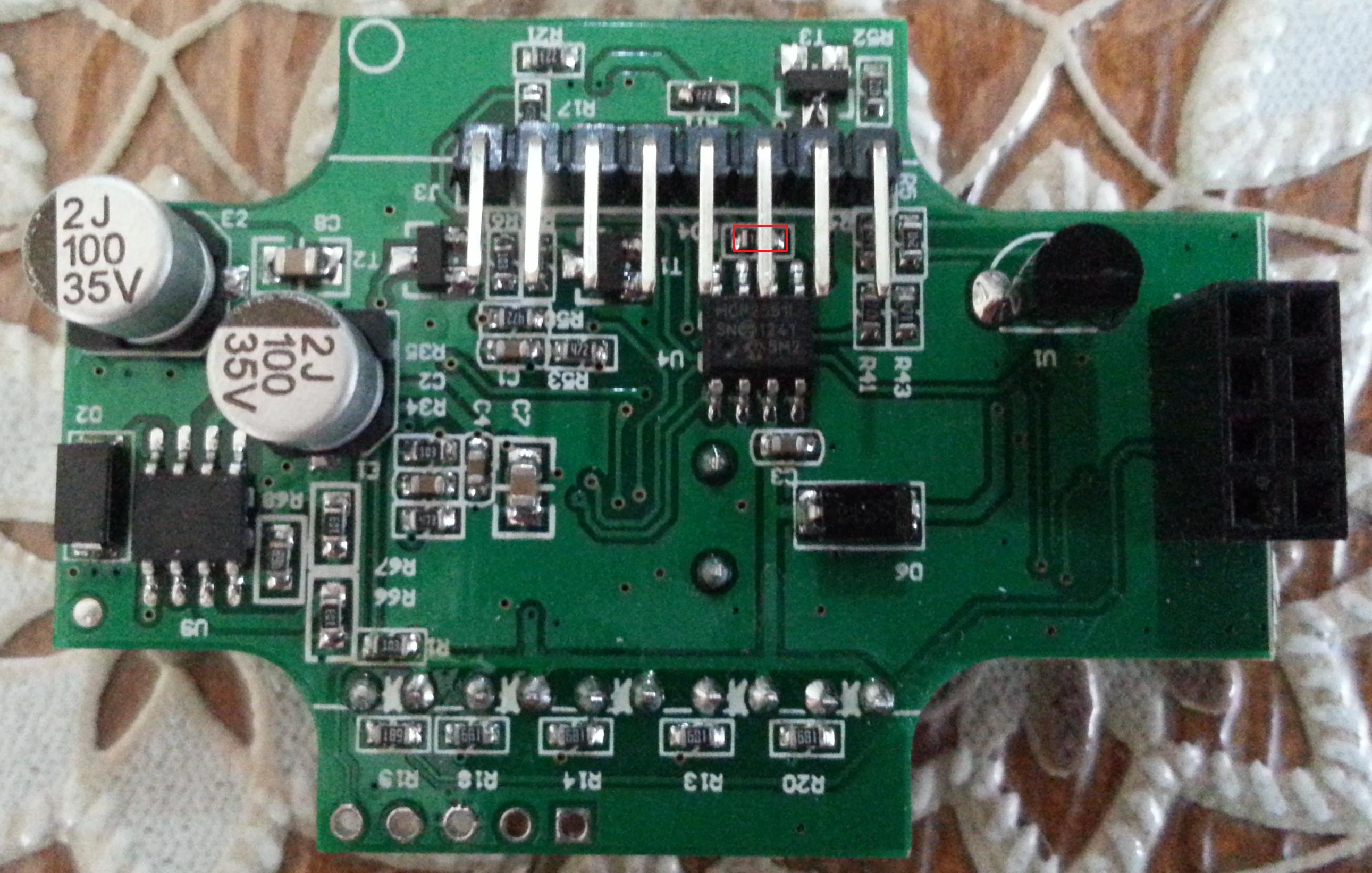

Remove the resistor in the red frame (R04) and your ELM can read the CAN Bus Protokoll
Greetings Eddy
- Wifi ELM markiert.jpg (485.33 KiB) Viewed 6727 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 28 Apr 2013, 13:11
by swatchlu
Hi Eddy,
I have ELM 327 V1.5a. I can only read using multiescan, electric steering, gearbox and engine.
I cannot read body, dashboard,abs service and climate control.
What do I need to do on this ELM327 1.5a, in order for it to read the rest of the modules? What do I need to remove?
my ride - Fiat 2006 Grande Punto 1.4 8V.
Thanks...

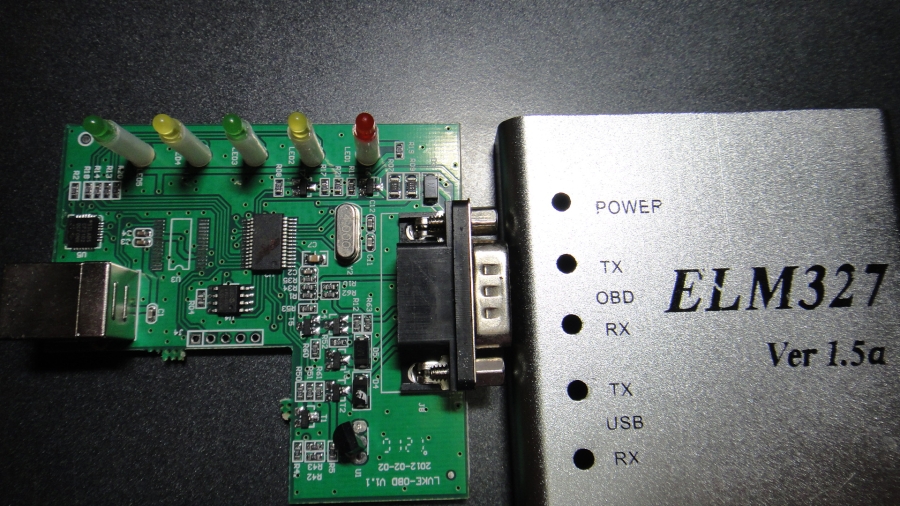

- ELM 327 V15a.jpg (449.58 KiB) Viewed 6721 times
- ELM 327 V15a 1.jpg (475.1 KiB) Viewed 6721 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 28 Apr 2013, 13:43
by Alfaeddy
Hi swatchlu

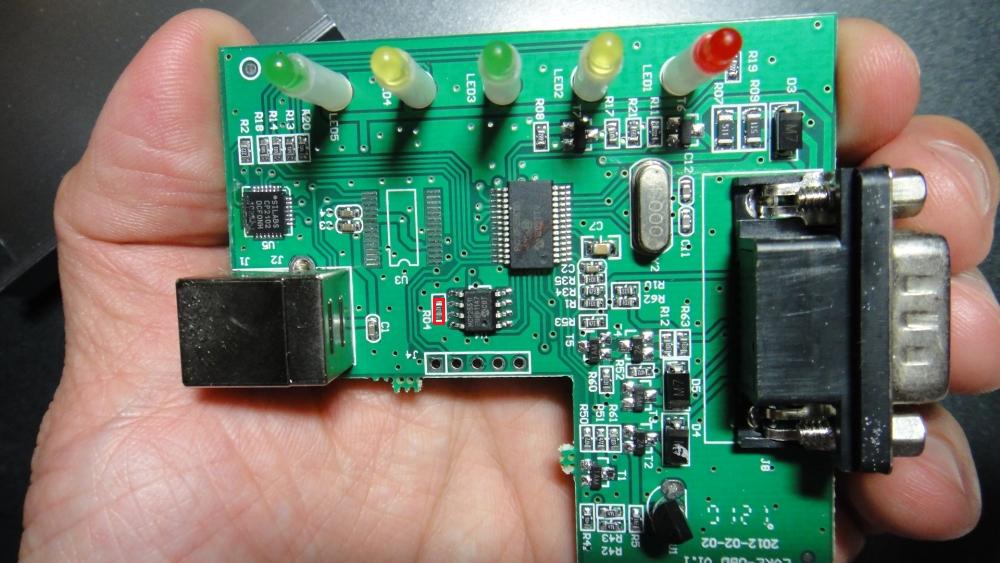

Remove the resistor in the red Frame ( R04) and you can read also CAN Bus with your ELM Interface
Greetings Eddy
- ELM 327 V15a 1 markiert.jpg (103.16 KiB) Viewed 6720 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 28 Apr 2013, 14:02
by swatchlu
Alfaeddy wrote:Hi swatchlu
Remove the resistor in the red Frame ( R04) and you can read also CAN Bus with your ELM Interface
Greetings Eddy
ELM 327 V15a 1 markiert.jpg
Hi Eddy,
Thank you!
if I remove R04, as mentioned. Will affect the ones that I already can read?
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 28 Apr 2013, 14:16
by Alfaeddy
Hello
No, it changed this what you read previously could not.
Multiecuscan has read these interface problems with the CAN bus
By removing the resistor we the only possible CAN bus the other protocols are not affected
Greetings Eddy
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 29 Apr 2013, 07:45
by alfa156sarajevo
eddyshow wrote:the vehicle is a 2003 fiat punto multijet.
I attach the picture as soon as possible
The user Alfa156sarajevo as solved?
No, still no solution for MES and WiFi.
If somebody else is thinking to use elm wifi and MES I would not advise you to buy it.
Elm WiFI works with AOBD and SM but not with MES.
