Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 08 Apr 2013, 16:14
by Alfaeddy
Take a update to Multiecuscan because there was an earlier version
times also made one of the problems.
But first you need to have a functional interface.
Greetings Eddy
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 12 Apr 2013, 12:17
by Boris
I have bought another interface (WiFi and USB combined, I already have Bluetooth and USB) and as predicted, CAN does not work.
Please can you help, what resistor to remove?

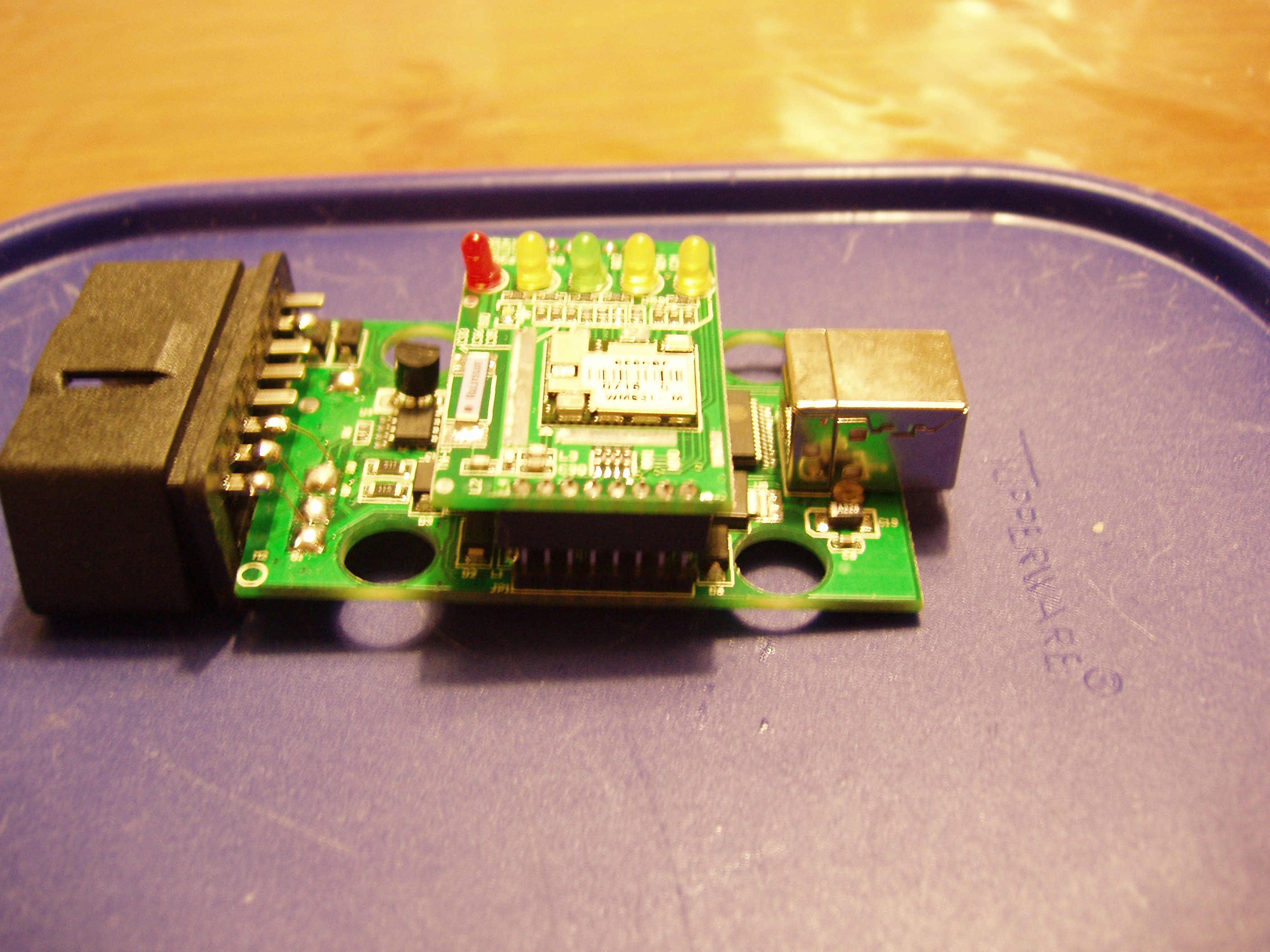

- P4126233.JPG (1.26 MiB) Viewed 5538 times
- P4126238.JPG (1.27 MiB) Viewed 5538 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 12 Apr 2013, 12:20
by Boris

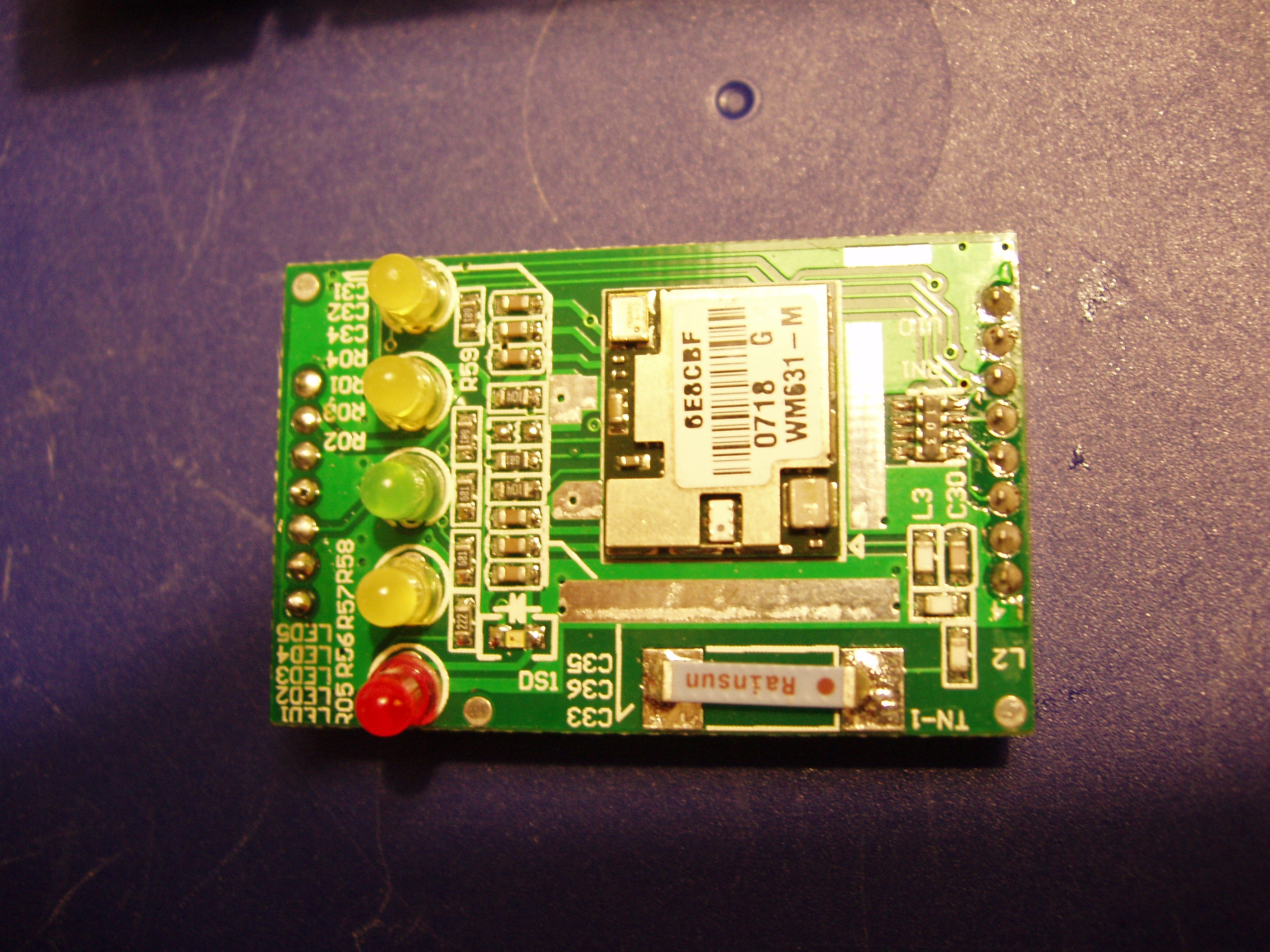

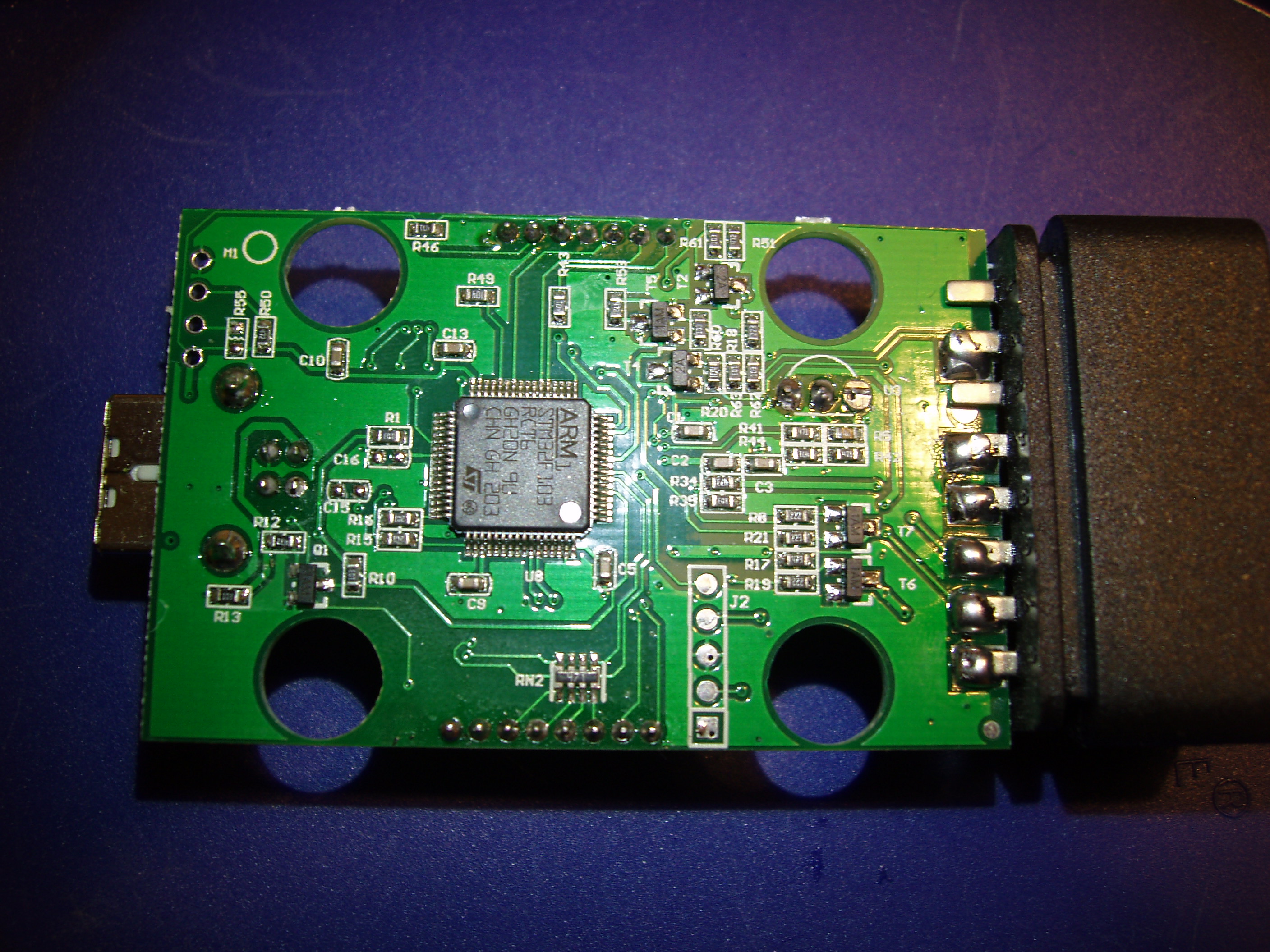

More pics:
- P4126239.JPG (1.32 MiB) Viewed 5538 times
- P4126231.JPG (1.36 MiB) Viewed 5538 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 12 Apr 2013, 15:33
by Alfaeddy
Hello Boris
Great pictures but it's hard to read the label on the components
But if I am not mistaken you have to remove R6 (red Frame )
Greetings Eddy

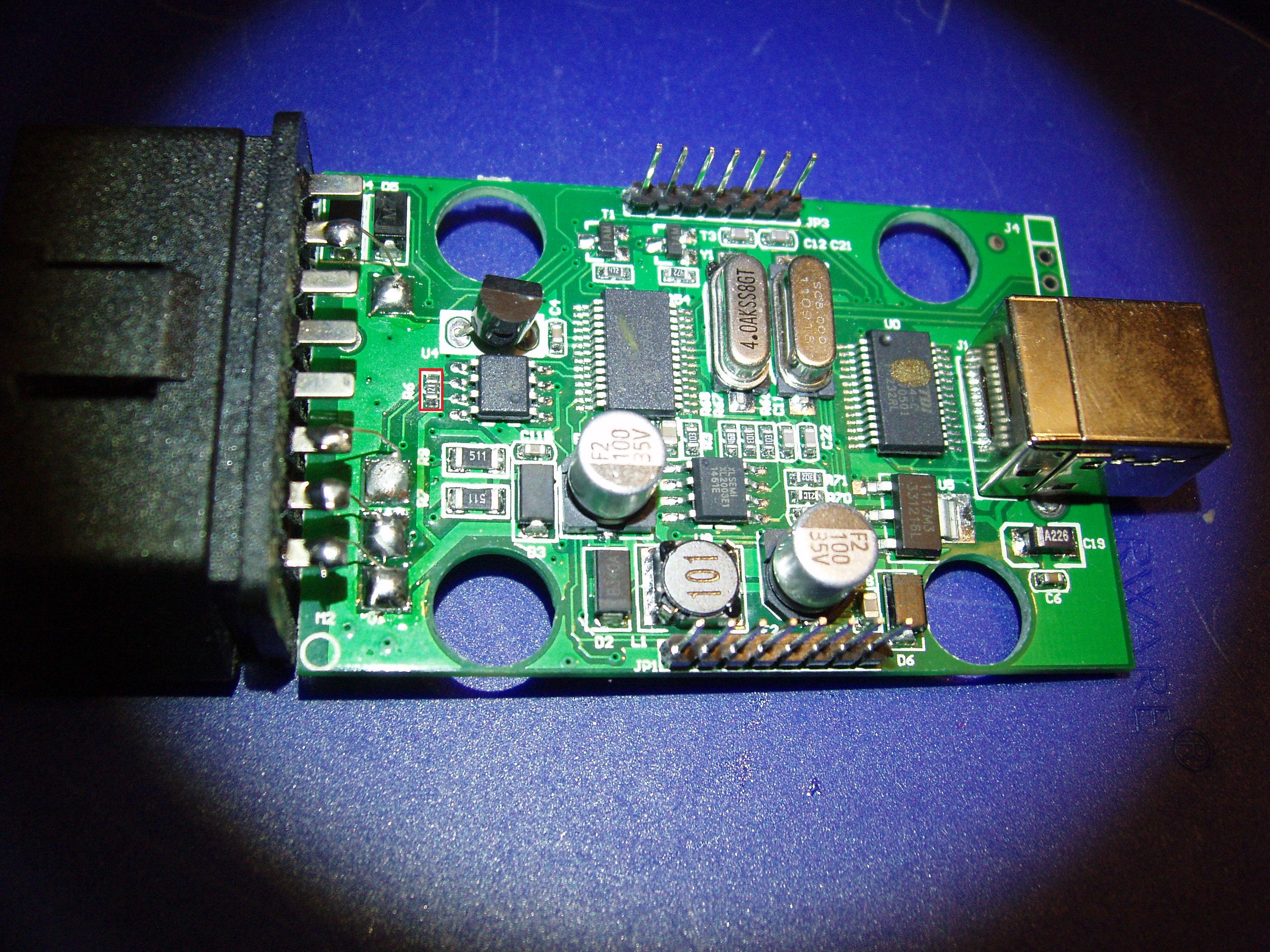

- P4126238 markiert.jpg (1.07 MiB) Viewed 5533 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 12 Apr 2013, 16:45
by Boris
Are you sure, or I will take the picture again. Which picture/component you need to read?
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 12 Apr 2013, 16:50
by Alfaeddy
Hello
Yes I'm 95% sure, but doing is another picture of the part with 8 pins in addition to the resistor in the red frame
Greetings Eddy
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 12 Apr 2013, 18:13
by lolo85v
Hello I have an elm case metal 1.5 I has do not arrive has to make reset service(department) it has the resistance r4 (272) there if I remove(kidnap) him(it) it is similar what(who) resistance needs that I remove(kidnap)? THANK YOU
http://i74.servimg.com/u/f74/13/84/33/82/20130419.jpg
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 12 Apr 2013, 18:28
by Alfaeddy
Hello lolo85v
This interface we had more times described here
Your picture is very bad
I see no labels
But as far as I Know it must not be changed at this interface.
Which vehicle you would like to read it?
Greetings Eddy
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 12 Apr 2013, 18:42
by lolo85v
ALFA 159
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 12 Apr 2013, 18:47
by lolo85v
