FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

[Alfaeddy]

Take a update to Multiecuscan because there was an earlier version
times also made ​​one of the problems.

But first you need to have a functional interface.

Greetings Eddy

[Boris]

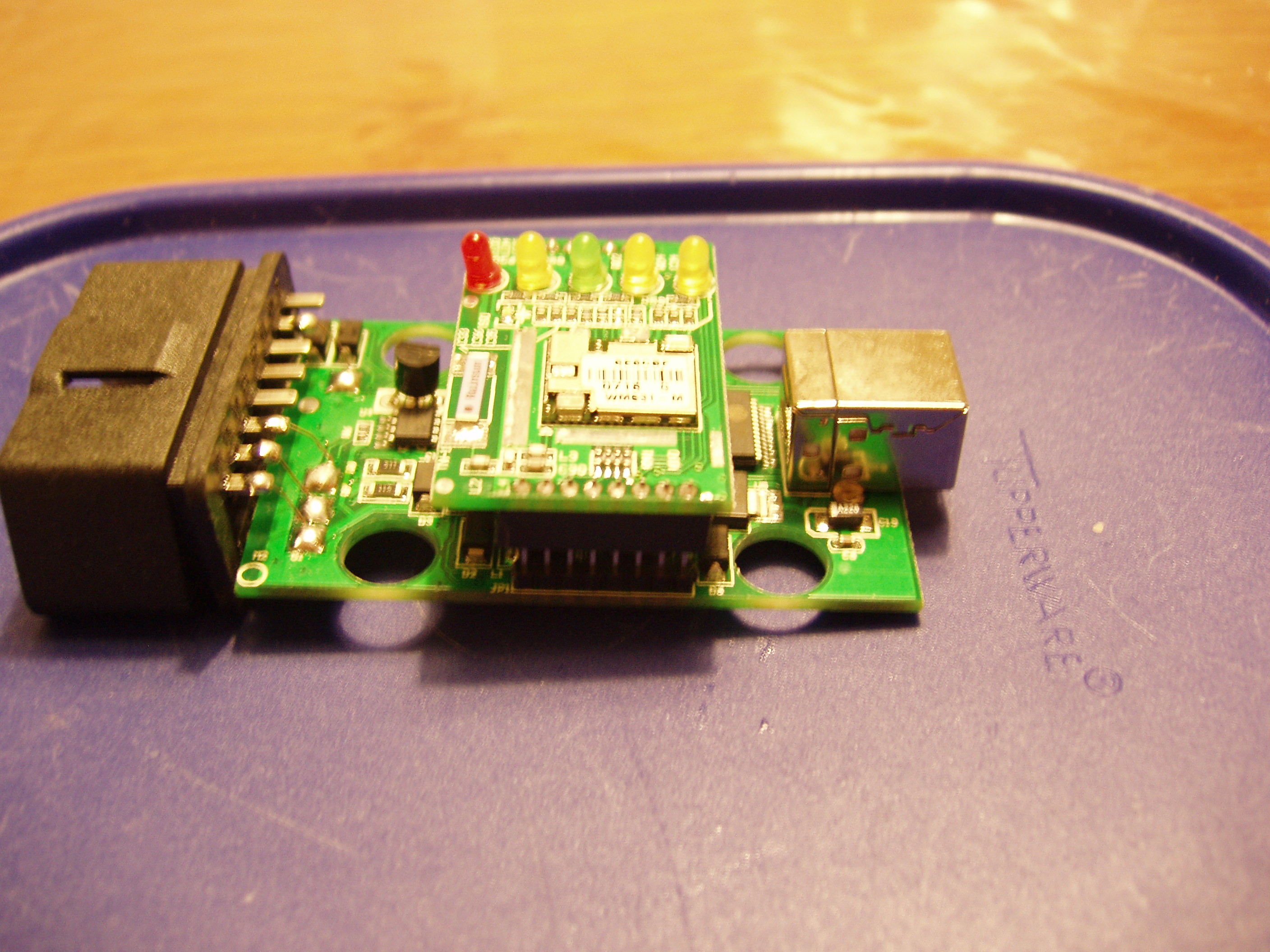

I have bought another interface (WiFi and USB combined, I already have Bluetooth and USB) and as predicted, CAN does not work.
Please can you help, what resistor to remove?



[Boris]

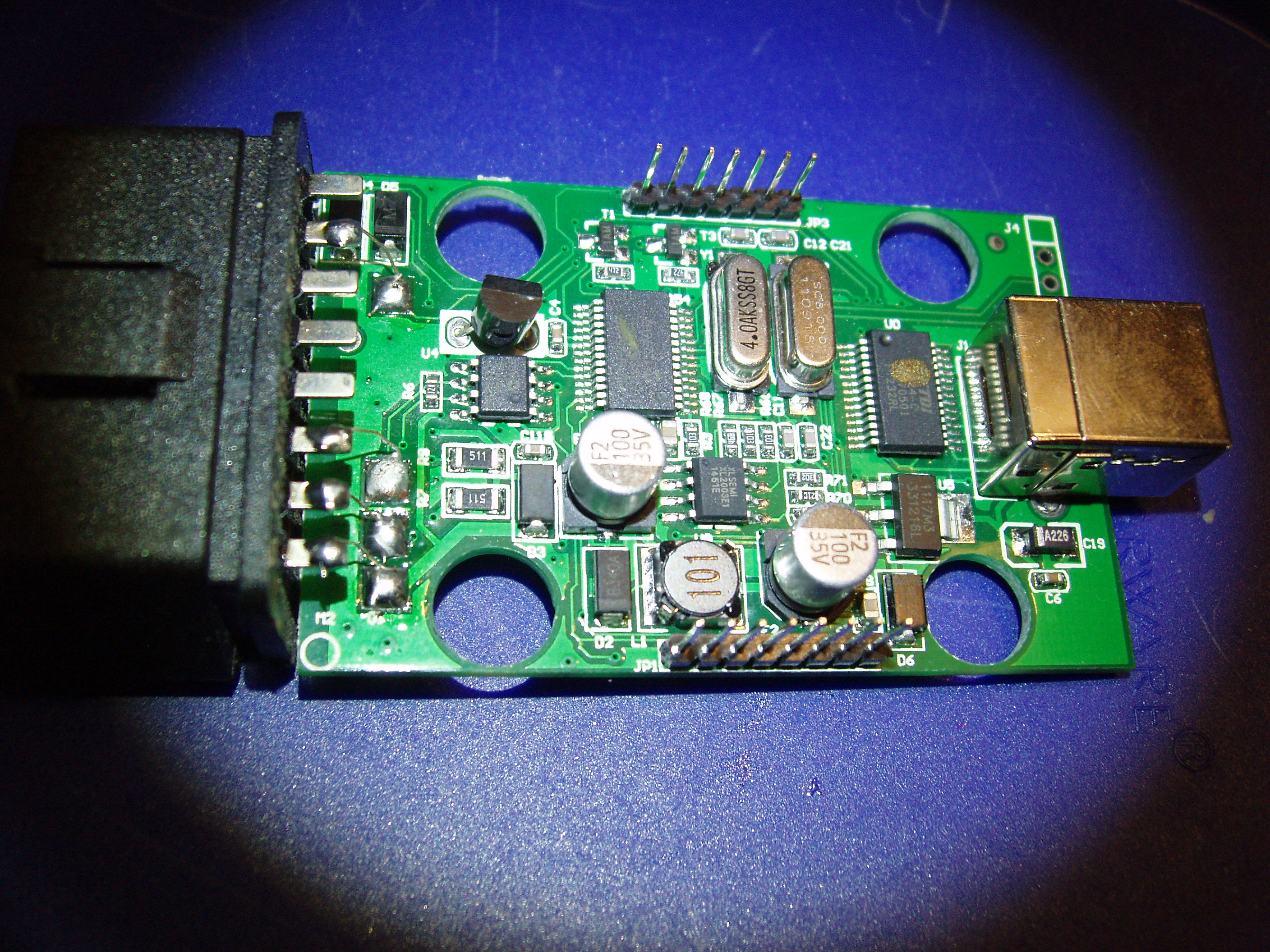

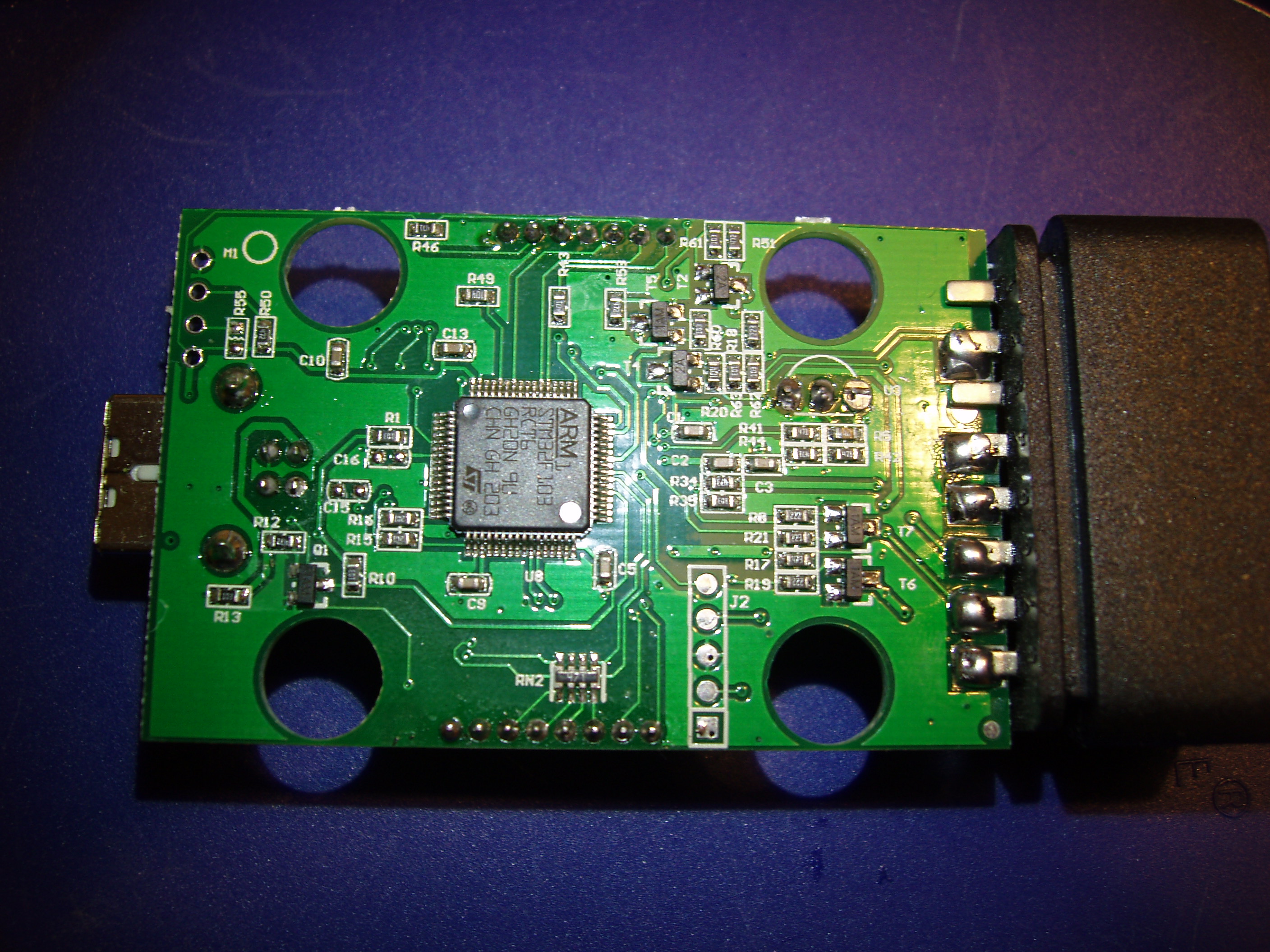

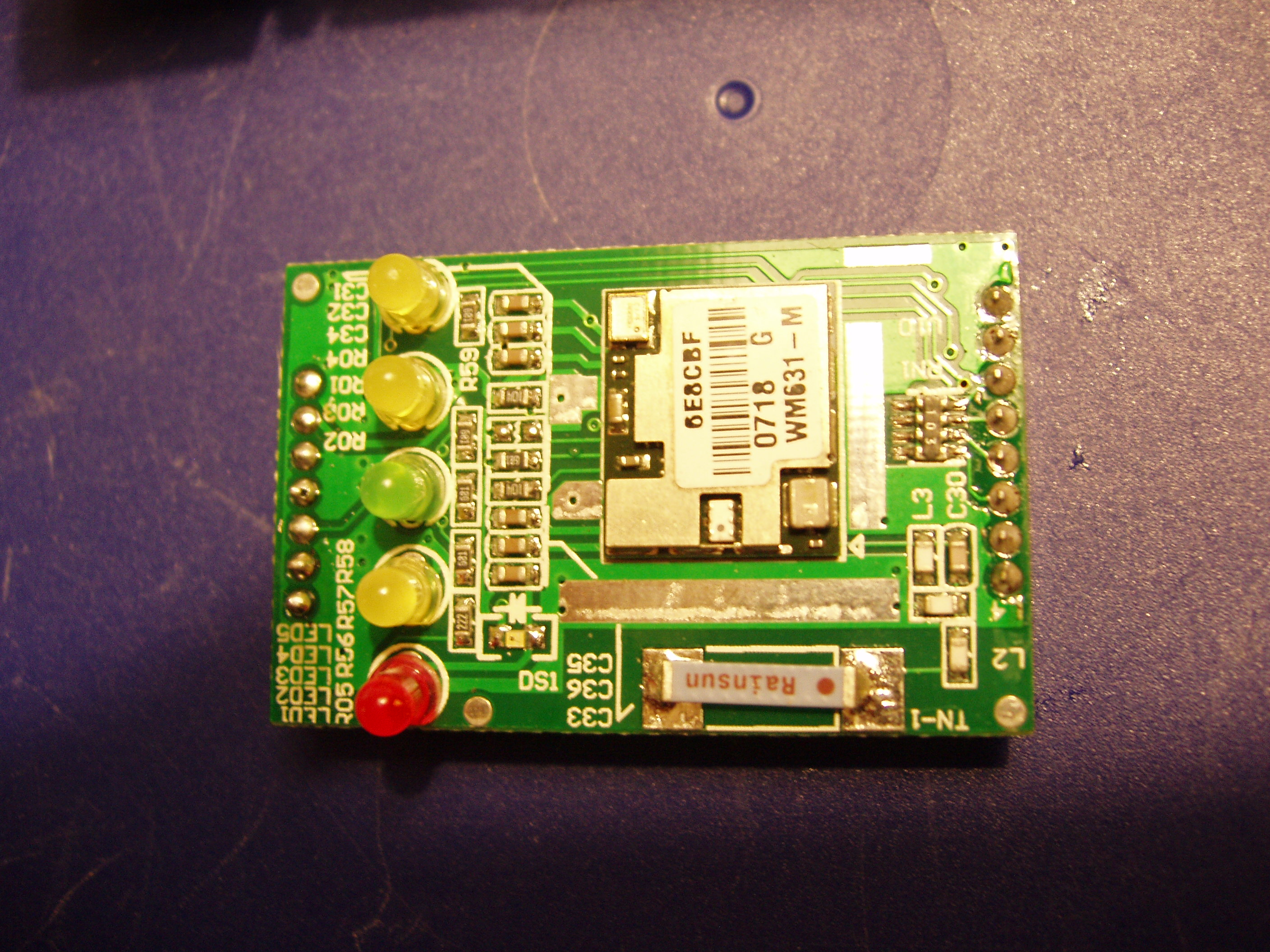

More pics:



[Alfaeddy]

Hello Boris

Great pictures but it's hard to read the label on the components

But if I am not mistaken you have to remove R6 (red Frame )

Greetings Eddy

P4126238 markiert.jpg (1.07 MiB) Viewed 5576 times

[Boris]

Are you sure, or I will take the picture again. Which picture/component you need to read?

[Alfaeddy]

Hello

Yes I'm 95% sure, but doing is another picture of the part with 8 pins in addition to the resistor in the red frame

Greetings Eddy

[lolo85v]

Hello I have an elm case metal 1.5 I has do not arrive has to make reset service(department) it has the resistance r4 (272) there if I remove(kidnap) him(it) it is similar what(who) resistance needs that I remove(kidnap)? THANK YOU

http://i74.servimg.com/u/f74/13/84/33/82/20130419.jpg

[Alfaeddy]

Hello lolo85v

This interface we had more times described here
Your picture is very bad
I see no labels

But as far as I Know it must not be changed at this interface.

Which vehicle you would like to read it?

Greetings Eddy

[lolo85v]

ALFA 159

[lolo85v]

An other one embellishes with images

http://i74.servimg.com/u/f74/13/84/33/82/20130420.jpg
