Hello Elio65

Unfortunately, the images often of poor quality, you unfortunately also

Your photo flash makes everything very dazzle

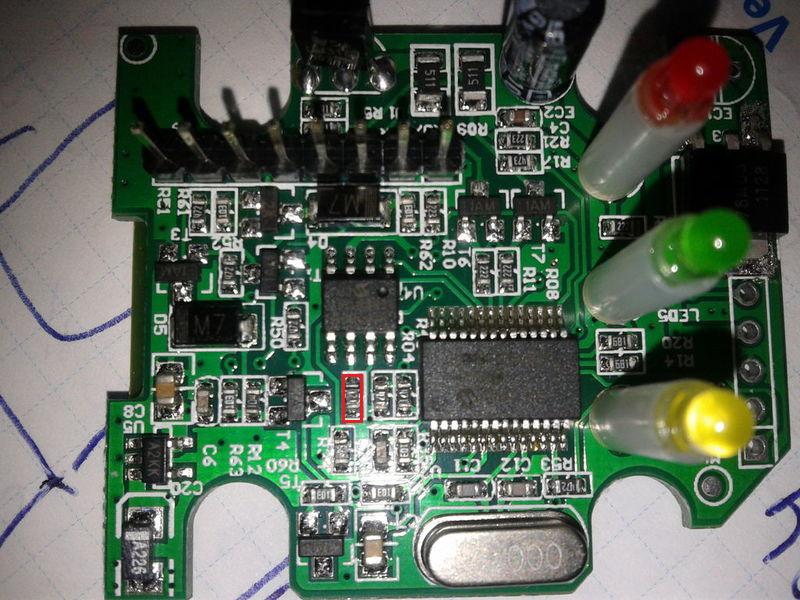

But when I look at the board, I can see I should have found the resistor.
And I marked the red

Should remove this resistor and also work with your ELM Multiecuscan

Greetings Eddy

Sorry Eddy,
My outside interface is as follows:


While inside is as follows:





Thanks for the help!

Hello Elio65

Sorry but the second images are even worse than the first!

55 kb per image are far too few
And this photo flash without



Greetings Eddy

Hi

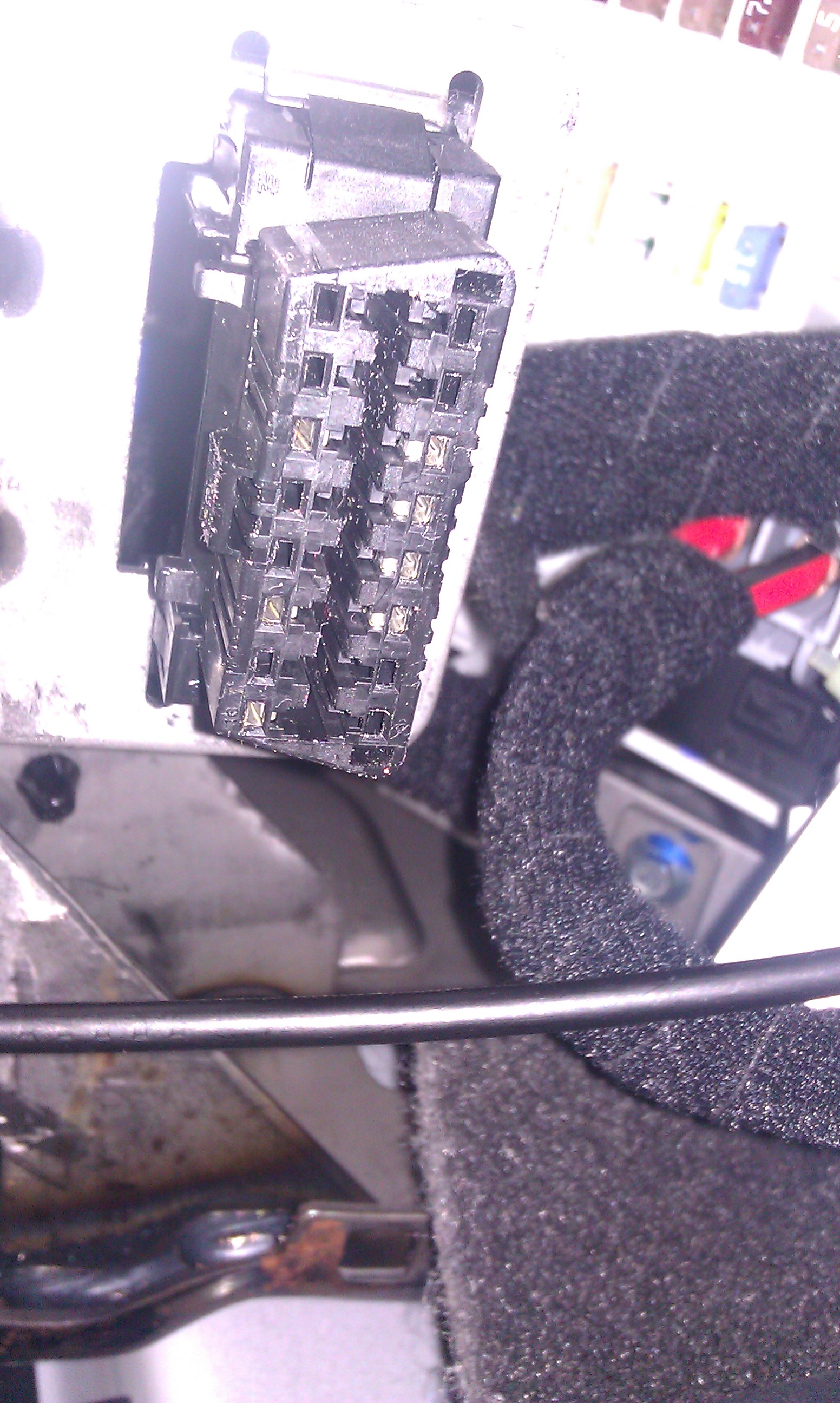

it is my car OBD interface,i removed the 120ohm resistor,also i add the 560PF capcitor and 100ohm resistor on pin 6 and pin 14.but till now i can't connect to anything,Engine,ABS,Body and so on.....
would you pls tell me how can i do for it?
Thanks a lot

Hi,

I bought un'elm327, and when I go to read, with Fiat ECU scan, the data of ABS and airbags, I find the error that can not be read on the K-line to pins 5 and 7 ....... it seems to me;

how can I change it, I'll post pictures:

Hi Giuseppe

Which car / model / year you want to read?

And why here all have such bad pictures representing
can not see anything?

The images must have a higher resolution of at least 800 kb <

In these pictures, I can not see anything


Greetings Eddy

FIAT, Alfa, Lancia Group,
Fiat Stilo, and Fiat Croma

OK, I try to do the best photos.

Fiat Stilo 2005 years 1,9 MJT 120CV
Fiat Croma 2008 years 1,9 MJT 140CV

Hi Jerrywang

Your pictures are too big and have nothing to do with your interface!
Why did you set here?
800 x 600 pixels is sufficient


It is clearly not an interface


Which car / model / year you want to read??

If you still have soldered a capacitor (560 pF) and a resistor (100 ohms) to pin 6 + 14?
This is completely unnecessary, remove it again

Greetings Eddy

Hello Giuseppe

Please this time slowly

This ELM interface you can convert without something
on Fiat Stilo read the ECU / ABS / Steering

For the air bag you need a KKL interface

For the Fiat Croma
So you can read without a rebuild your ECU / ABS / xenon

Only for the airbag / Body Comp etc. you may need to change something on the interface.

If you get no connection to the ECU you have the settings / Com port set incorrectly
First check the time settings


Greetings Eddy
