Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 09 Mar 2013, 20:15
by Alfaeddy
Hello Stapy
Yes remove the resistor R4 by the connector line
Greetings Eddy
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 14 Mar 2013, 21:07
by stapy
Eng. Eddy,
thx for your usual support... it works great... i need now to decode not virgin ECU... any help ?
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 15 Mar 2013, 12:35
by Alfaeddy
Hello Stapy
Would you flash your ECU?
For this purpose you need a Galletto Interface
http://www.ebay.de/itm/OBD2-II-Flasher- ... 3379cf4e55
Greetings Eddy
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 17 Mar 2013, 09:28
by Yuker
Hello Eddy! My ELM327 sees only the engine and ABS.
Need help.
Thank you.
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 17 Mar 2013, 10:54
by Alfaeddy
Hello Yuker
Which vehicle do you want to read?
What controls you can not connect?
When I check that board, has not your ELM CAN bus problem
Greetings Eddy
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 17 Mar 2013, 15:16
by highbrink
Hi Alfaeddy,
Could you please confirm that if i remove the R04 Resistor i will be able to connect to the Engine Ecu and Can Bus Ecu ?
Diagnostic Connector :- ELM 327 V1.6 (Dated 2012/7/16).
Software :- Multiecuscan.
Car :- Fiat Stilo Abarth.
Circuit Board Photos Attached.
Thank you Alan.
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 17 Mar 2013, 16:16
by Yuker
Hello Eddy
I would like to see electrical,
Reset service, Airbag
Interface: ELM 327 Bluetooth.
Software: Multiecuscan.
Car: Fiat Fiorino 2008.
1.3 Multijet
thanks
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 17 Mar 2013, 16:28
by Alfaeddy
Hello Alan
What engine does your Stilo Abarth?
Which year?
Is the ever support of Multiecuscan?
For access to your engine control unit you should also not remove R04 can
This interface we have often in this thread
Then your image is very bad!

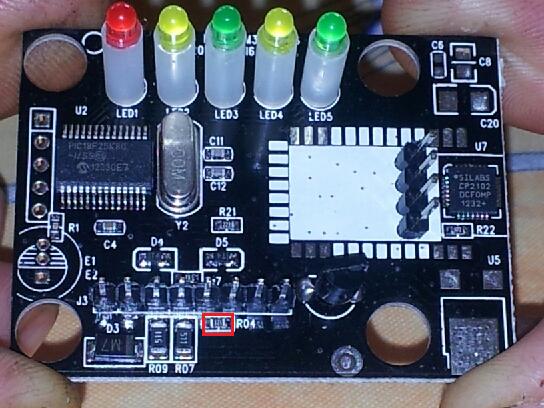

But I have highlighted the relevant resistor red
Remove the R04 and your ELM should be able to read CAN bus
Greetings Eddy
- get-attachment markiert.jpg (52.62 KiB) Viewed 4846 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 17 Mar 2013, 16:52
by highbrink
Hi Alfaeddy,
Thank you for your reply
Sorry my mistake, i can access (connect) to the Engine Ecu
Answers to your question ;- Fiat Stilo Abarth Selespeed 2.4 20v - Model Year 2002.
Thank you Alan.
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 17 Mar 2013, 16:53
by Alfaeddy
Hallo Yuker
Code: Select all
Hello Eddy! My ELM327 sees only the engine and ABS.
Need help.
Thank you.
this is right so
for Airbag , Service reset usw.
you need an Adapter A3 yellow
http://www.ebay.de/itm/150964734869?ssP ... 1438.l2649
Your ELM Interface ist OK
Greetings Eddy
