Posted: **15 Jan 2013, 21:35**

sprint750 wrote:Hello,

Another cheap 'Chinese clone', from eBay (UK seller, not china or HK), received 3 days ago.
It was sold as ELM 327 1.4 'with a genuine ELM chip'.
(For my personal information, I would really like to recognize a genuine ELM chip from a fake one)

Actually everything is working well FES wise, which makes me think it is actually an genuine ELM1.4
- NO communication problems, all ECU are recognized.(Airbag and steering not tested, pins 1-7-9 not soldered yet)
- NO problem to get access to service reset.
- NO installation problem. Just the drivers for FTDI USB to install.



On the last pic we can see the 100 Ohm resistors (R25/R26) for CAN H/L lines with associated capacitor (C14/C15)
Same combo shown by members in the last posts.

Hope it can help you to find the correct interface

Best regards
Sébastien

hello, i recently bought an elm 327 interface, and now saw that the interior is equal to what is said above, I have to make any changes to operate at 100%? if so which?

already now what program I can use and where to get complete, or cheaper if possible for free ..

thank you

Posted: **16 Jan 2013, 12:30**

Hello,

after scrolling through the previous 47 pages I did not find any user having exactly the same layout as I have bought now. It is similar to the one posted by "Franky" on page 27 (viewtopic.php?f=5&t=1493&start=260#p10022). My ELM is labelled "Autodia E327".

: IMAG0191.jpg (771.35 KiB) Viewed 6075 times

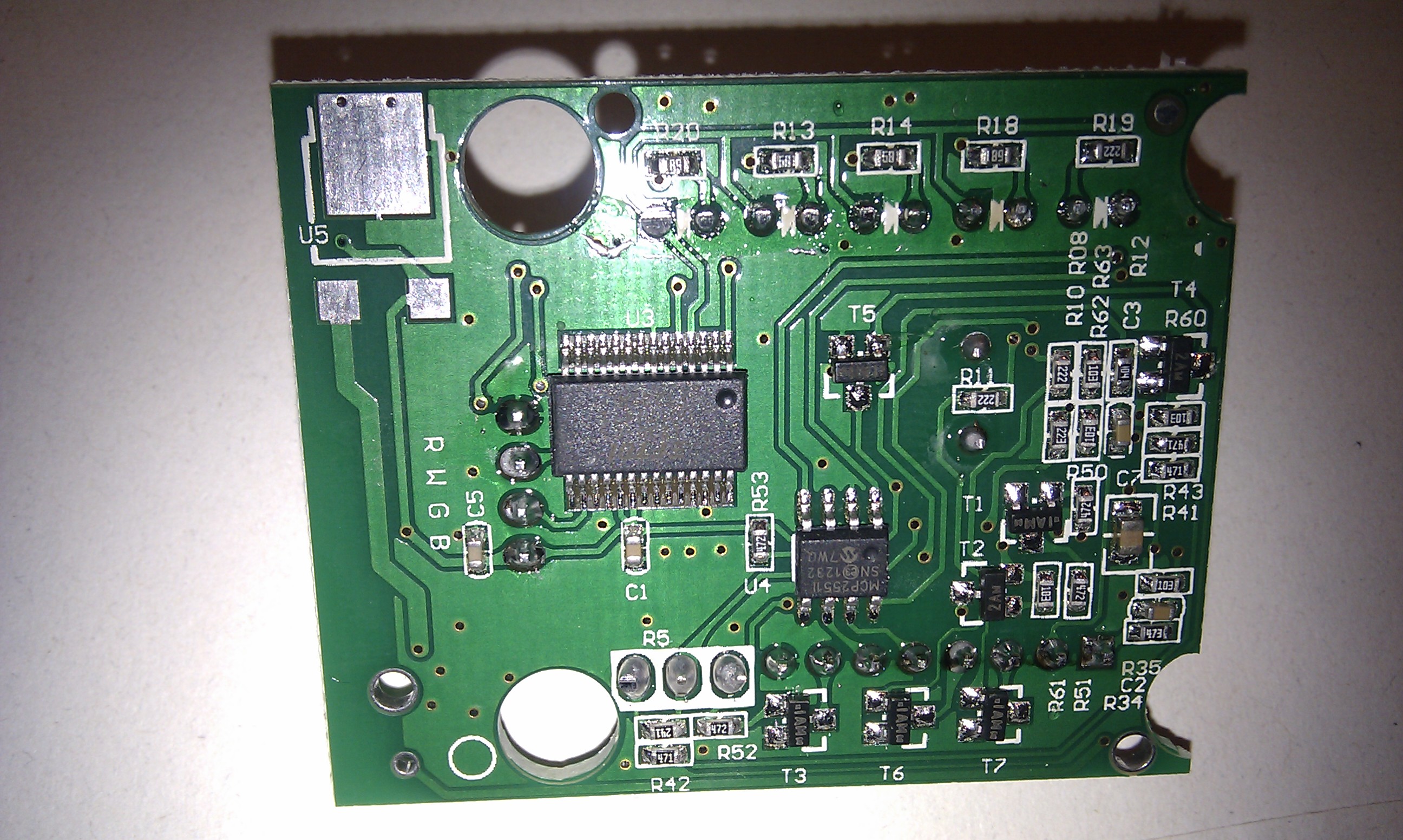

: IMAG0193.jpg (1.16 MiB) Viewed 6075 times

Can one of the pros check the layout and state if a resistor has to be removed at all?
If yes, would that be the "r04" like shown in the following posting?
viewtopic.php?f=5&t=1493&start=280#p10449

Thank you for your help!

Mark

Posted: **16 Jan 2013, 22:56**

Hello Mark

Yes, this is the relevant resistor (R04)
remove this resistance and your ELM CAN bus capable

Greetings Eddy

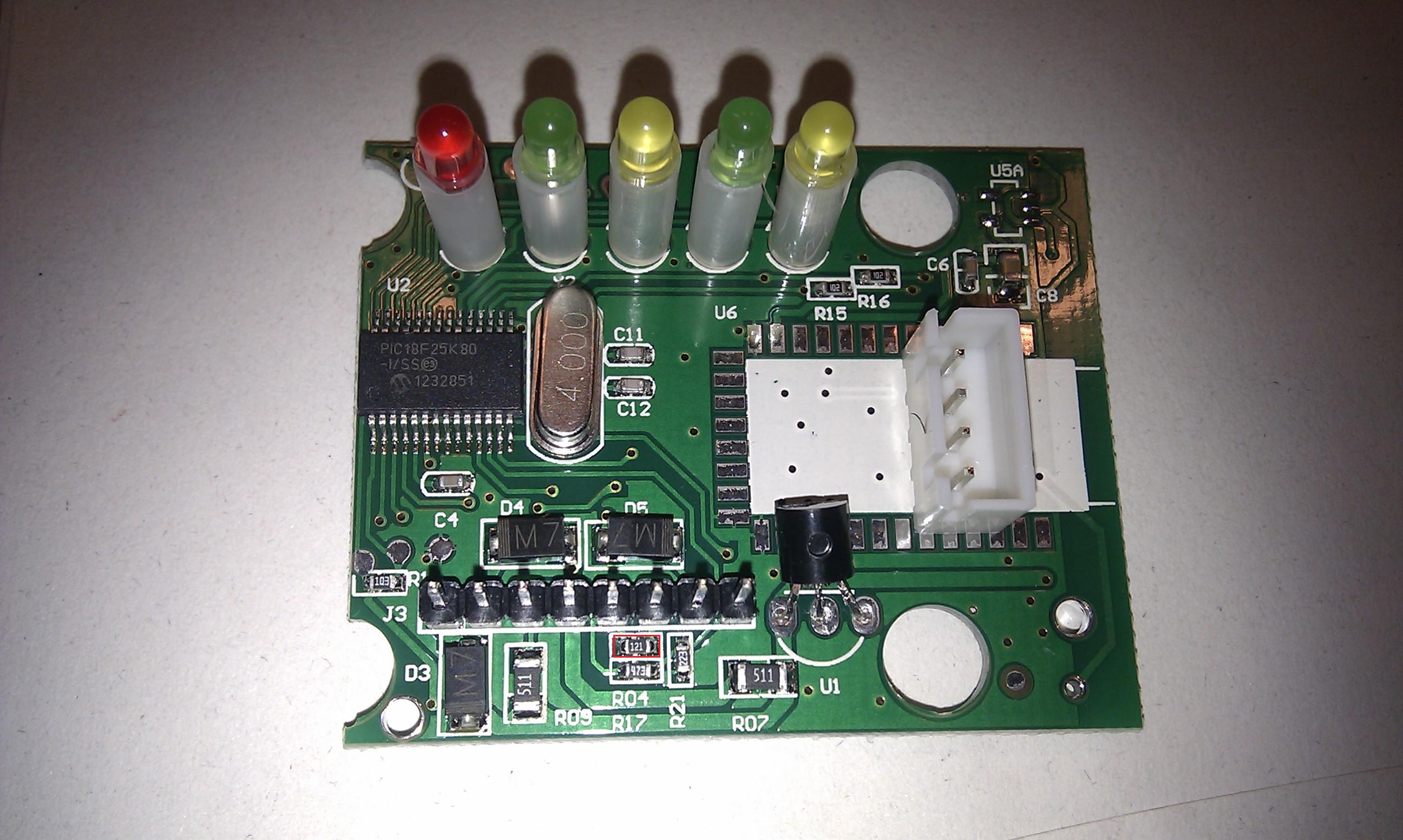

I have to once again marked in red

: IMAG0191 markiert.jpg (432.82 KiB) Viewed 6070 times

Posted: **16 Jan 2013, 23:11**

Hello hendrikl88

I do not understand what you want?
- Which vehicle you want to read?
- This vehicle is to be read with the ELM?
- With the free version you can work from Multiecuscan
- Multiecuscan is not expensive

Greetings Eddy

Posted: **18 Jan 2013, 07:25**

Thanks Alfaeddy!

After un-soldering the marked resistor my ELM works perfectly

Posted: **18 Jan 2013, 14:35**

gladly markw

Greetings Eddy

Posted: **20 Jan 2013, 16:47**

i want to read a fiat grande punto 1.3mjt but i can t

i have the elm327 cable

i can do a reset os fervice neither read the erros

Posted: **20 Jan 2013, 17:07**

Hello Henrikl88

I can not translate your post, but as I understand you have a ELM 327 and can not connect? right!

Absolutely no connection or only partially?
For the service and a few other controls you need an adapter!
In your ELM 327 the resistor is often described herein has been removed. ?
Have you registered the formatted version of Multiecuscan?
Did you install the correct driver? not supplied from the CD

Greetings Eddy

Posted: **20 Jan 2013, 20:58**

Hello, thanks for the help

Today i could connect to my grande punto, i have the multiecuscan registered, where can i buy the adapter to conect to service?
i only can see the errors from the motor

Posted: **20 Jan 2013, 21:08**

Hello

I figured that your problem is a lack of adapters
You need the yellow adapter (A3)

Question time with this dealer about whether even the yellow adapter (A3)
individually has on offer.
With a nice greeting from me (Eddy)

http://www.ebay.de/itm/Adapter-A1-A2-A3 ... 2578c4a7bc

Greetings Eddy
