Hello
There will always be written by some people that the Chinese clone of the ELM 327 would not work.
This is not quite right!
Because only Multiecuscan has problems with these ELM interface, it is up to the wiring of the board, not the chip MCP2551
There are many types and also secure copies but I have yet none
had that did not work after removing the resistor.
Whether the details of Yani in "Supported Vehicles" are correct I do not know exactly
Stoerstefan but definitely with his ELM interface should connect to the ECU can make the Croma.
This has nothing to do with resistor
Greetings Eddy
FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
-
soerstefan
- Posts: 3
- Joined: 06 Jan 2013, 12:20
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Hello,
Here are my answers to "Alfaeddy":

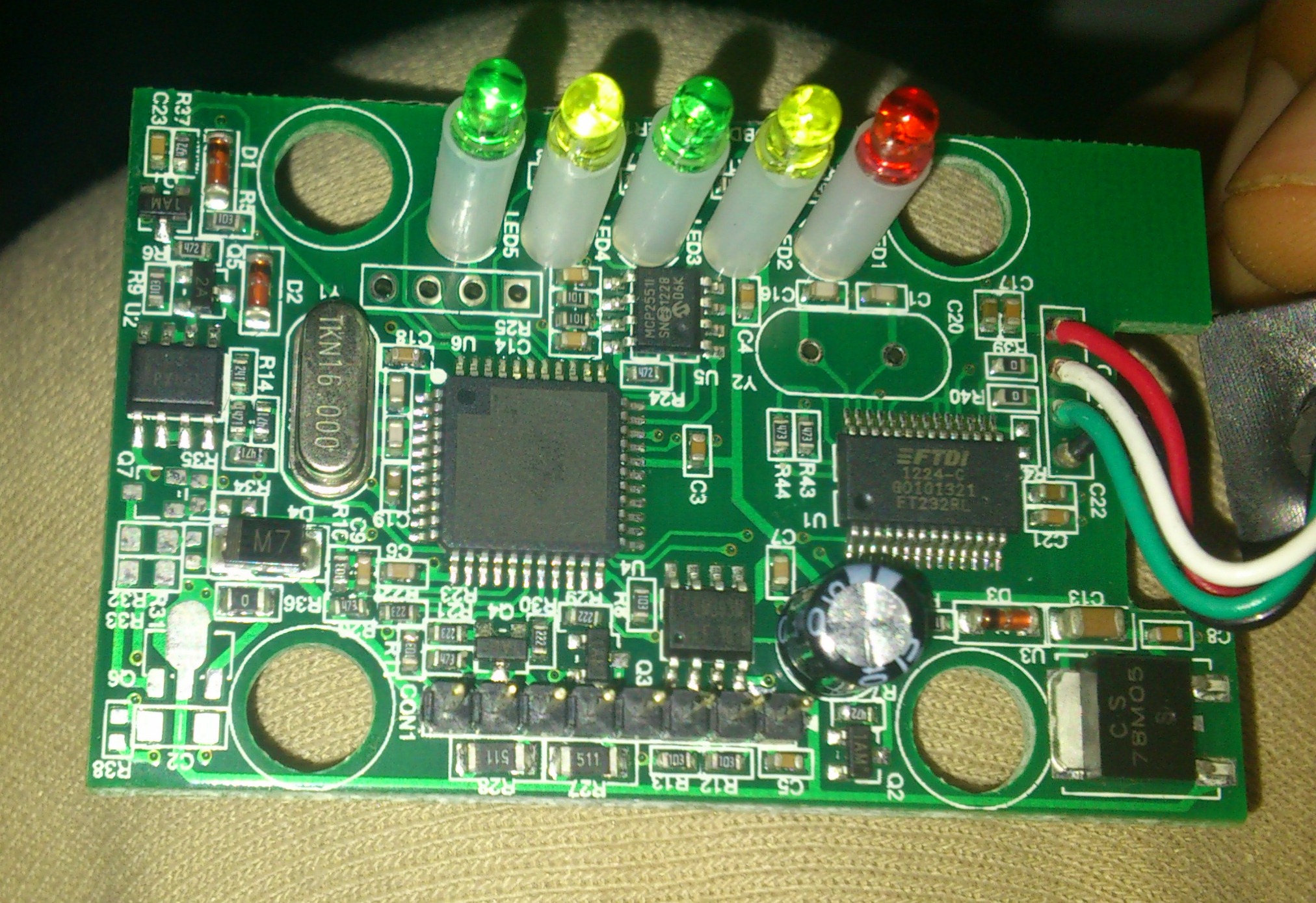

1. Is the same PCB layout as member: "alikut99". I am sending picture of PCB layout from different perspective. Can you please check also this picture.
2. As manual requirement, I have been instaled VCP driver from: http://www.ftdichip.com/Drivers/VCP.htm
The file is zipped with version: 2.08.24 (CDM 2.08.24 WHQL Certified.zip) and as far as I understand after installation is working properly on Windows XP with speed: 38.400 and latency 16.
I did again so many try but still NOT WORKING. Waiting for solution.
Regards.
Here are my answers to "Alfaeddy":
1. Is the same PCB layout as member: "alikut99". I am sending picture of PCB layout from different perspective. Can you please check also this picture.
2. As manual requirement, I have been instaled VCP driver from: http://www.ftdichip.com/Drivers/VCP.htm
The file is zipped with version: 2.08.24 (CDM 2.08.24 WHQL Certified.zip) and as far as I understand after installation is working properly on Windows XP with speed: 38.400 and latency 16.
I did again so many try but still NOT WORKING. Waiting for solution.
Regards.
- Attachments
-
- Img_4.jpg (790.83 KiB) Viewed 7656 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Hello soerstefan
As I have suggested your ELM interface mode has not described in this thread error. !
Especially since this also affects only the CAN bus.
On your ECU, you should definitely be able to connect.
With adapter on your ABS, Xenon and the Steering
But since all the connections are not possible, I still suspect a setting error
or your ELM is defective.
The latency should always be 1 ( not 16)
The com port on the PC and Multiecuscan same set?
Ignition on (Dashboardlights on)?
Sorry for the repetitive questions, but unfortunately I can not tell of the fault with you.
As already written!
On your interface I can see no error.
Greetings Eddy
As I have suggested your ELM interface mode has not described in this thread error. !
Especially since this also affects only the CAN bus.
On your ECU, you should definitely be able to connect.
With adapter on your ABS, Xenon and the Steering
But since all the connections are not possible, I still suspect a setting error
or your ELM is defective.
The latency should always be 1 ( not 16)
The com port on the PC and Multiecuscan same set?
Ignition on (Dashboardlights on)?
Sorry for the repetitive questions, but unfortunately I can not tell of the fault with you.
As already written!
On your interface I can see no error.
Greetings Eddy
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Hi,
I have a elm327 interface witch i can use to connect to some of the Fiat Bravo (2008) ecu's but not to the body computer or the service reset.
I have read this thread an i think my interface has this problem.
Can anybody take a look on my board and tell me if i have any resistors to eliminate? or how i could modify my interface to connect on the CAN network.
COMMAND: ATZ
RESPONSE: ATZ
ELM327 v1.5
>
COMMAND: ATI
RESPONSE: ATI
ELM327 v1.5
>
COMMAND: ATE0
RESPONSE: ATE0
OK
>
COMMAND: ATL0
RESPONSE: OK
>
COMMAND: ATH0
RESPONSE: OK
>
COMMAND: ATSPC
RESPONSE: OK
>
COMMAND: ATS0
RESPONSE: OK
>
COMMAND: ATCAF0
RESPONSE: OK
>
COMMAND: ATCFC0
RESPONSE: OK
>
COMMAND: ATCRA 7B0
RESPONSE: OK
>
COMMAND: ATSH 7B0
RESPONSE: OK
>
COMMAND: ATAT1
RESPONSE: OK
>
COMMAND: ATST41
RESPONSE: OK
>
COMMAND: ATBI
RESPONSE: OK
>
This interface is compatible with ELM 327 1.4! Should connect properly with all CAN modules.
I have a elm327 interface witch i can use to connect to some of the Fiat Bravo (2008) ecu's but not to the body computer or the service reset.
I have read this thread an i think my interface has this problem.
Can anybody take a look on my board and tell me if i have any resistors to eliminate? or how i could modify my interface to connect on the CAN network.
- DSC08811.jpg (258.89 KiB) Viewed 7608 times
RESPONSE: ATZ
ELM327 v1.5
>
COMMAND: ATI
RESPONSE: ATI
ELM327 v1.5
>
COMMAND: ATE0
RESPONSE: ATE0
OK
>
COMMAND: ATL0
RESPONSE: OK
>
COMMAND: ATH0
RESPONSE: OK
>
COMMAND: ATSPC
RESPONSE: OK
>
COMMAND: ATS0
RESPONSE: OK
>
COMMAND: ATCAF0
RESPONSE: OK
>
COMMAND: ATCFC0
RESPONSE: OK
>
COMMAND: ATCRA 7B0
RESPONSE: OK
>
COMMAND: ATSH 7B0
RESPONSE: OK
>
COMMAND: ATAT1
RESPONSE: OK
>
COMMAND: ATST41
RESPONSE: OK
>
COMMAND: ATBI
RESPONSE: OK
>
This interface is compatible with ELM 327 1.4! Should connect properly with all CAN modules.
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Hello aurick86

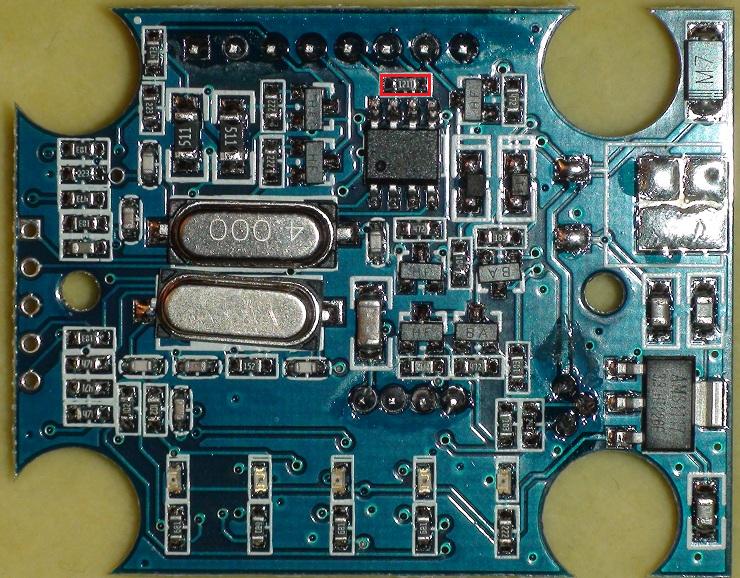

Remove the red marked resistor on your board
and your interface is also capable of Multiecuscan CAN Bus
Greetings Eddy
Remove the red marked resistor on your board
and your interface is also capable of Multiecuscan CAN Bus
Greetings Eddy
- DSC08811markiert.jpg (123.87 KiB) Viewed 7608 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Thank you Alfaeddy,
I've removed the resistor, and now i am able to connect to the CAN network.
Keep up the good work!
I've removed the resistor, and now i am able to connect to the CAN network.
Keep up the good work!
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Hello aurick86
gladly
Greetings Eddy
gladly
Greetings Eddy
-
soerstefan
- Posts: 3
- Joined: 06 Jan 2013, 12:20
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Hello Eddy,
Thank you for your inputs, I have been try at weekend.
1. Modified latency from 16 to 1.
2. The com port on the PC and Multiecuscan are same: 38.400
3. Ignition on (Dashboardlights on).
Currently I can access some SYSTEM`s which is OK, but I can`t only access "ENGINE" SYSTEM.
It shows again:
"CONNECTION FAILED, ELM327 -> ECU Connection Failed ! Check your cable and serial port settings"
What could be a problem not reaching only "ENGINE" ?
Thank you again.
Thank you for your inputs, I have been try at weekend.
1. Modified latency from 16 to 1.
2. The com port on the PC and Multiecuscan are same: 38.400
3. Ignition on (Dashboardlights on).
Currently I can access some SYSTEM`s which is OK, but I can`t only access "ENGINE" SYSTEM.
It shows again:
"CONNECTION FAILED, ELM327 -> ECU Connection Failed ! Check your cable and serial port settings"
What could be a problem not reaching only "ENGINE" ?
Thank you again.
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Dear sir
As you can see your car controlers are on diffrent pins
Take a look in the list for coverage
Engine ECU it is on pin 7
ABS on pin 1
Xenon headlamp are on pin 12
The all other controlers are on CAN
For Engine, ABS and Xenon headlamps you canb make a starp inside the tool between pins 1,7 and 12
But if the all other system dosent works this mean that your tool has am issu on CAN BUS
This not means that your tool cannot connect on CAN BUS on other brands but not in Fiat/Alfa/Lancia because it is diffent
As I told you in a post before ( but maybe you didn't saw it or you pass it ) I told you your tool has other kind of MCU not usual ELM327 and it hasn't the all known rezistor which need to be removed.
And as I told you I suppose that it is not a solution yet ( me I haven't had in my hand one similar tool as yours )
And for ELM327 it is not necesary to make any other configiration in Device manager. You can let it as it is.
Good luck
As you can see your car controlers are on diffrent pins
Take a look in the list for coverage
Engine ECU it is on pin 7
ABS on pin 1
Xenon headlamp are on pin 12
The all other controlers are on CAN
For Engine, ABS and Xenon headlamps you canb make a starp inside the tool between pins 1,7 and 12
But if the all other system dosent works this mean that your tool has am issu on CAN BUS
This not means that your tool cannot connect on CAN BUS on other brands but not in Fiat/Alfa/Lancia because it is diffent
As I told you in a post before ( but maybe you didn't saw it or you pass it ) I told you your tool has other kind of MCU not usual ELM327 and it hasn't the all known rezistor which need to be removed.
And as I told you I suppose that it is not a solution yet ( me I haven't had in my hand one similar tool as yours )
And for ELM327 it is not necesary to make any other configiration in Device manager. You can let it as it is.
Good luck
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Hello soerstefan
As Mattydr67 writes your ELM interface should be able to normally without modifiktation read the CAN bus.
I remember the moment is a no reason why this does not work?!
So far I had only one case of the OBD connector had a loose connection. And wiggle the plug was then but a connection can be made.
Unfortunately, I can not think of another, Sorry
Greetings Eddy
As Mattydr67 writes your ELM interface should be able to normally without modifiktation read the CAN bus.
I remember the moment is a no reason why this does not work?!
So far I had only one case of the OBD connector had a loose connection. And wiggle the plug was then but a connection can be made.
Unfortunately, I can not think of another, Sorry
Greetings Eddy
