Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 26 Apr 2024, 16:31
by effe75
Hi Whiley I have a similar ELM327 cable. Which is exactly the resistor to remove? (I see no photo attached in your latest post). Thank you!
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 28 Apr 2024, 16:26
by Tomfarnell1997
Whiley wrote: ↑24 Apr 2024, 19:19

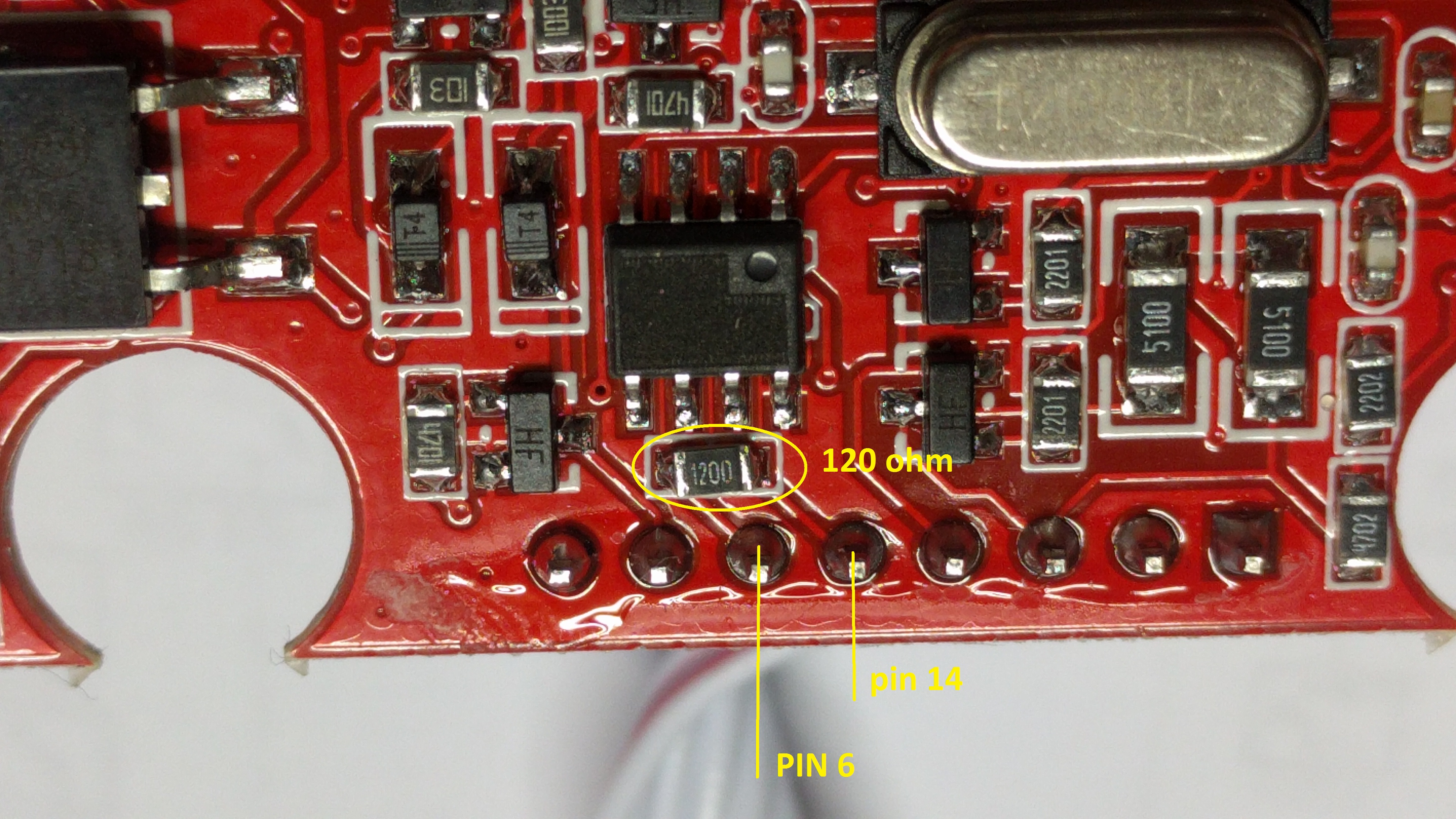

Sorted buzzed the board and found the 120 ohm resistor connected to 6 and 14, see picture attached, all works now and managed to do dpf reset and connect fully to ecu. I bought this kit off of amazon and for anyone who has this problem and has the red board see picture below of 120 ohm resistor to remove.
Hi Whiley, I have the same circuit board but I'm unsure what to do. There doesn't seem to be a photo attached. Please could you give a bit more advice? Cheers.
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 02 May 2024, 21:42
by naminator2003
For my ELM327 USB interface, the 120ohm resistor is located here:
https://ibb.co/0tth1wp
Encircled in blue. Usually between pins 6 and 7 of the CAN transceiver integrated circuit (8 pin SOIC, here named 1044)
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 08 Jun 2024, 19:35
by Darkburrow
Did i buy a Dud, this does not look right at all ? :/
Mine looks nothing like anyone elses on here, is mine a China-fake? It doesnt even say "ELM327" on it.
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 08 Jul 2024, 19:24
by SME61
Alfaeddy wrote: ↑11 Jan 2013, 22:14
Hello aurick86
Remove the red marked resistor on your board
and your interface is also capable of Multiecuscan CAN Bus
Greetings Eddy
This helped me, mine board is red but resistor is the same.
Thank you very much. Fiat 500C sport 2014
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 18 Jul 2024, 17:37
by Venigo
Hi all,
Just registered on this forum to gather some more information about the ELM mod. Only... I can't find any information about the latest Chinese interface. It is the same pcb for the 1.5 and the 2.1 version. It doesn't connect with AlfaOBD / MES, other apps are working (even the elm identifier).

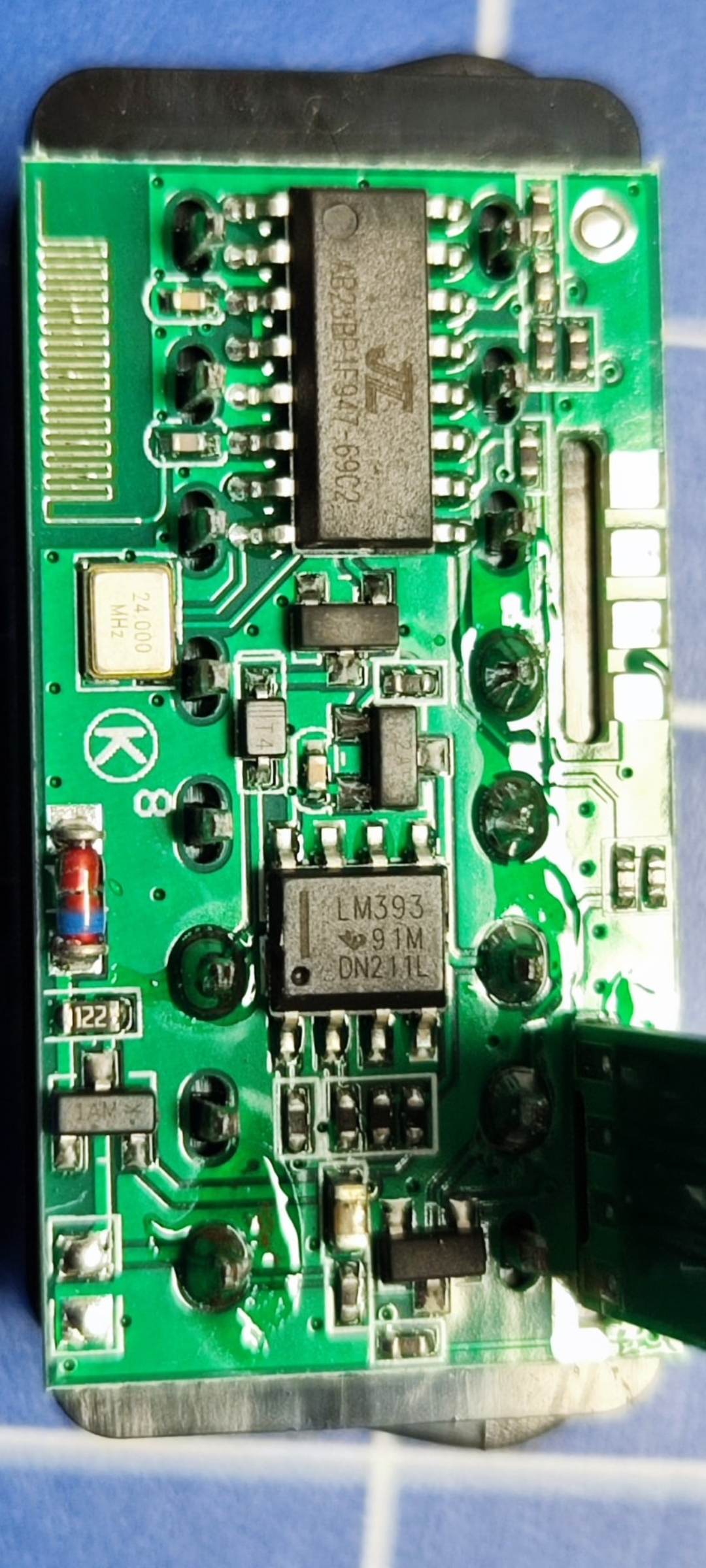

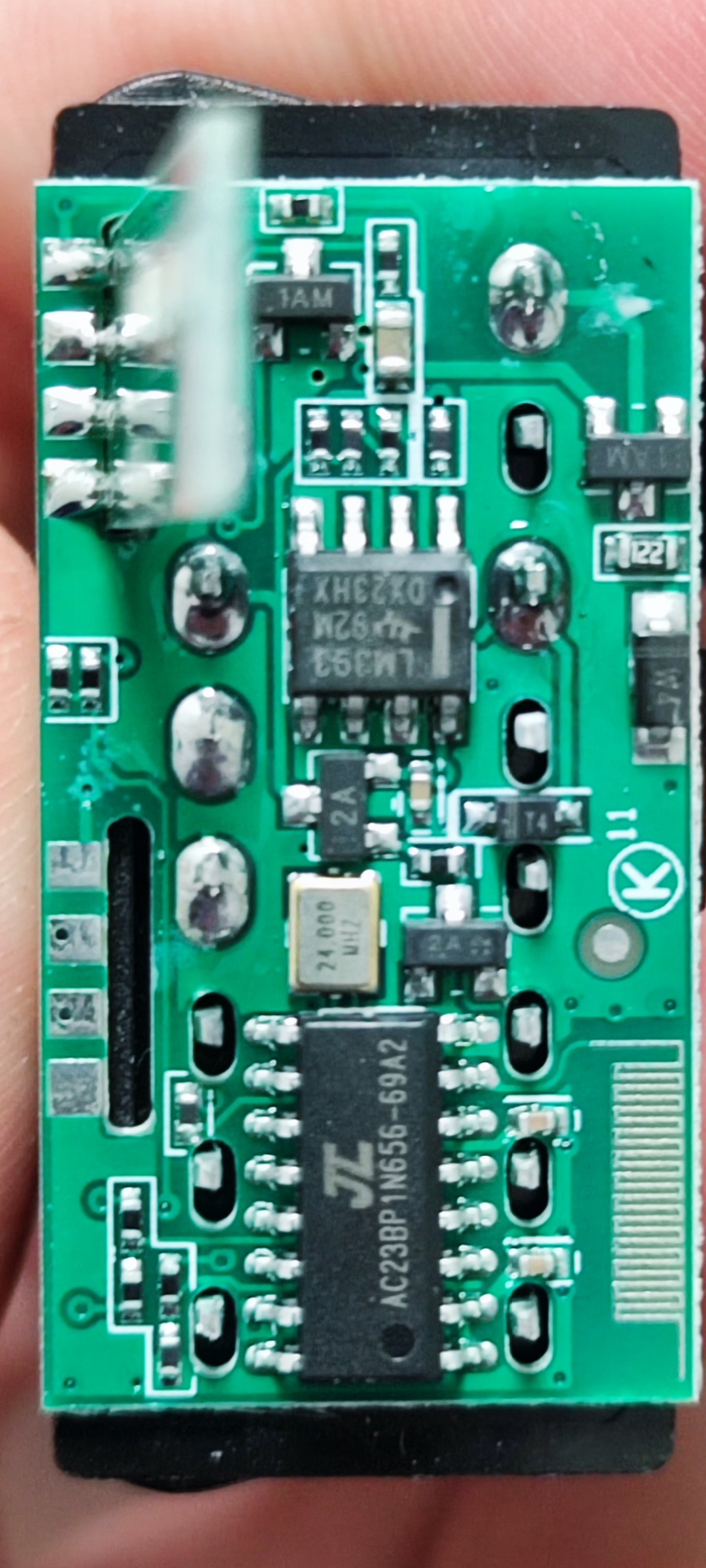

This is the board:
- Screenshot_2024-07-18-19-34-47-946_com.miui.gallery.jpg (1.29 MiB) Viewed 6942 times
- Screenshot_2024-07-18-19-35-06-251_com.miui.gallery.jpg (1.32 MiB) Viewed 6942 times
Any idea if there is any resistor that needs to be removed or is it not possible to apply the mod to this device?
Thanks in advance.
