Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 17 Jul 2015, 12:37
by Alfaeddy
Hello Fefe
Make please times a test in settings / interfaces / Test
And adjust the screen here
To read the Guilettas as described yellow Adapter
and for the Stilo still the green adapter
And you need for Airbag a KKL Interface
Greeting Eddy
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 19 Jul 2015, 14:33
by legone
Hi
I am the happy owner of an Alfa 159 2.2 JTS.
I bought a ELM327 Wifi. I can only connect to the engine module for the moment.
I would be able to reset my Service indicator. And to do that I'd like to connect to the Service module.
I bet it means that I have to remove a resistor.
There are so many board layouts that I did not manage to guess which one.
Full res here:
http://www.googledrive.com/host/0B7dgk3 ... lZ0ai1pN2c
I have a suspicion on the 121 resistor at the bottom and center of the image.
Could you be so kind to confirm thats the one to remove?
Best regards
Fabrice
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 19 Jul 2015, 20:50
by Alfaeddy
Hello Fabrice
Yes this is the bridge resistor that must be removed !!
Could you please have a link of this interface here Set
and a screen of the test in MES / Settings / Interfaces ??
Because there are more and more new ELM interface on the market
who can not work with MES.
Meanwhile, it is difficult to suggest interface.
Greeting Eddy
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 19 Jul 2015, 23:31
by zapdus
Hello, i have a 2009 alfa romeu mito and i can connect with engine, abs, etc (high speed can)
But i can't connect to low speed can
I think i most remove the bridge resistor
But i can't find where it is
Can any1 help me?
Here is my PCB
Thank you!
It is a ELM327 USB V1.5
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 20 Jul 2015, 06:15
by Alfaeddy
Hello
This interface we had been there several times

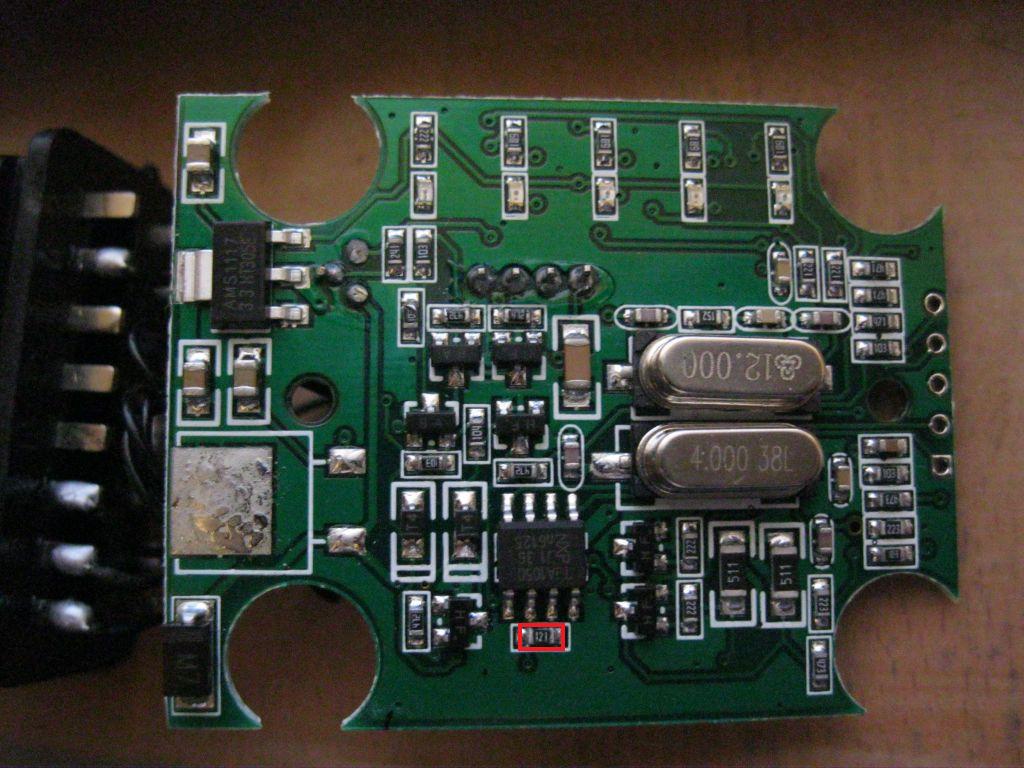

in red frame the bridges Resistor is highlighted
Greeting Eddy
- 6126927B markiert.jpg (127.37 KiB) Viewed 7671 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 20 Jul 2015, 17:40
by legone
Alfaeddy wrote:Hello Fabrice
Could you please have a link of this interface here Set
and a screen of the test in MES / Settings / Interfaces ??
Hi
First, thanks for the answer !
I bought the interface here:
http://www.dx.com/p/elm327-obd-wi-fi-au ... lue-321243
For the moment I can tell you that MES reports that it connects successfully to the ELM. I can connect to the Engine module and read / clear the errors. Nothing else though (with the resistor).
I can also connect with my iPhone using some free OBD II utilities.
I'll make a snapshot of MES as soon as I try it again with the resistor removed (probably next week end).
And I ll also keep you posted if it works fine.
Best regards
Fabrice
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 27 Jul 2015, 23:27
by Herpez
My elm327 is broken after i tried to fix it
Can someone recommend me a fully working elm327 device with bluetooth whithout the needed to a fix?
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 28 Jul 2015, 19:09
by Aliendex
Hello guys,
I'm using a cheap chinese ELM 327 which doesn't work with MultiEcuScan even when it was original (with the resistor), this is the module:
As you can see i've already removed resistor R34 (120 Ohm) but i have the same error in MultiEcuScan.
With Torque, ScanMaster and PCMSCAn it's working fine.
Code: Select all
COMMAND: ATZ
RESPONSE: ATZ
ELM327 v2.1
>
COMMAND: ATI
RESPONSE: ATI
ELM327 v2.1
>
COMMAND: ATE0
RESPONSE: ATE0
OK
>
COMMAND: ATL0
RESPONSE: OK
>
COMMAND: ATH0
RESPONSE: OK
>
COMMAND: ATSPC
RESPONSE: OK
>
COMMAND: ATS0
RESPONSE: OK
>
COMMAND: ATCAF0
RESPONSE: OK
>
COMMAND: ATCFC0
RESPONSE: ?
>
COMMAND: ATCRA 7B0
RESPONSE: ?
>
COMMAND: ATSH 7B0
RESPONSE: ?
>
COMMAND: ATAT1
RESPONSE: OK
>
COMMAND: ATST41
RESPONSE: OK
>
COMMAND: ATBI
RESPONSE: OK
>
WARNING: This interface is not compatible with ELM 327 1.3! Will not connect to any CAN module.
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 28 Jul 2015, 21:28
by Alfaeddy
Hello
As you can see in the test screen, this is a software on the chip
V2.1
And the v2.1 does not run with MES or AlfaOBD
Why this is so I can not say
This would require more Yani can say.
Greeting Eddy
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 29 Jul 2015, 05:21
by Aliendex
Alfaeddy wrote:Hello
As you can see in the test screen, this is a software on the chip
V2.1
And the v2.1 does not run with MES or AlfaOBD
Why this is so I can not say
This would require more Yani can say.
Greeting Eddy
Thank you Eddy!!
In this case i will continue to use this module only with the software mentioned before (Torque, ScanMaster, PCMSCAN)
What version of elm 327 should I buy to make sure it's working correctly?
I have a Fiat Grande Punto 1.3 Mjet 66kW/90HP (2007) with a Marelli 6F3
P.s.: Do i need to re-solder R34 or I leave the module modified?
