Hi Alfaeddy:
I would like reset the maintenance service alarm and I have this ELM327 wifi
I have an Alfa 159 Jtdm 2.0 sport 2011.
What can I do?
Details of ELM http://www.aliexpress.com/item/2014-Hig ... 33302.html
Thanks
regards

Hello

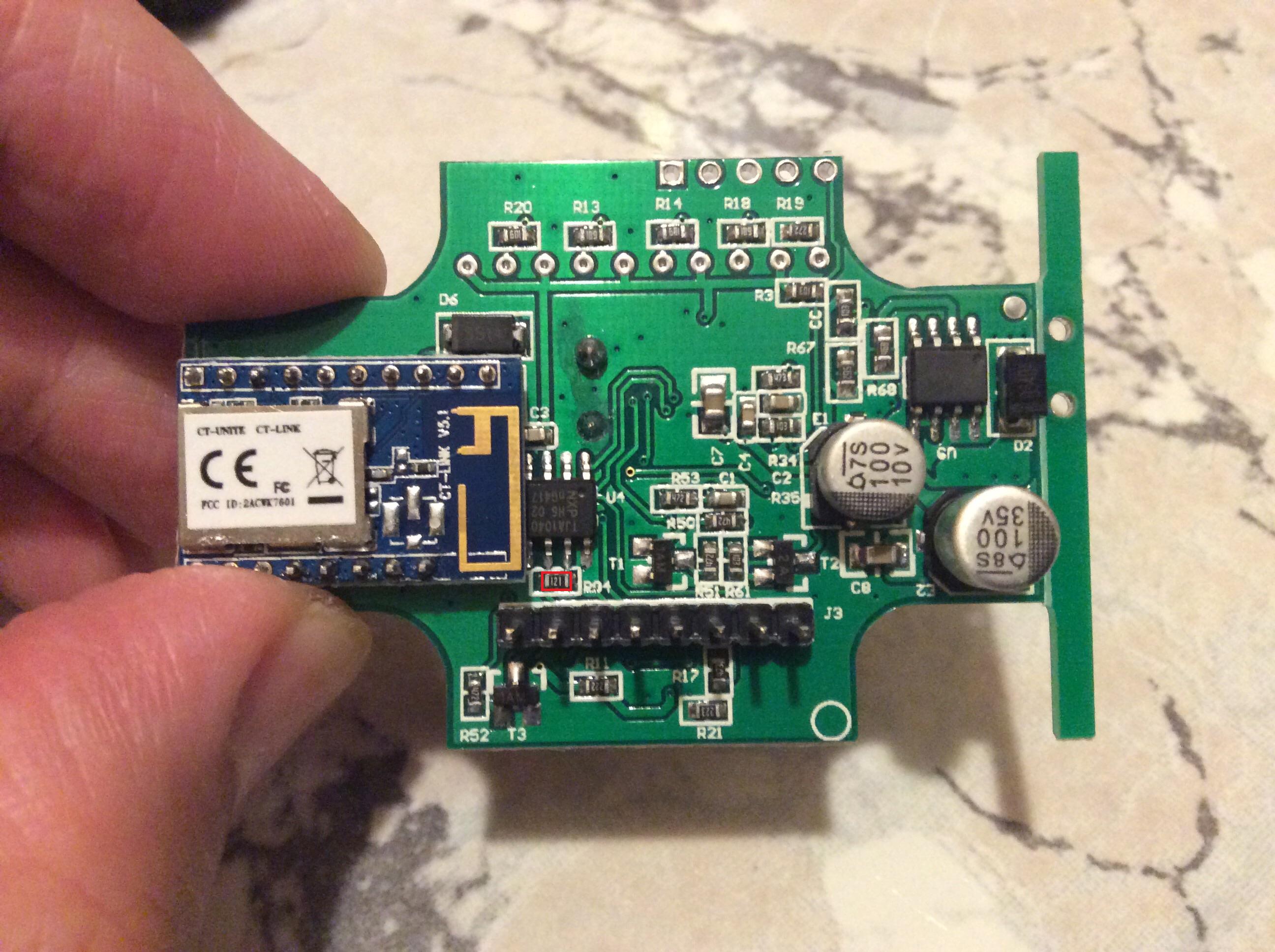

Remove the Resistor in the red Frame
then you can read the CAN Bus from your Alfa 159

Greetings Eddy

Thanks Alfaeddy, I will check it.

Regards

What should I remove from this ELM to have acces to ABS and everything else (besides the ENGINE)? Is that the resitor, between the CAN lines? Thank you.

ello

First of all, what vehicle you want to read ?????

Because very often have connection problems not related to the bridge resistor.

The red marked from you is the bridge resistor Resistor

Greeting Eddy

Hi

I want to read ABS (and the other ECUs) on Alfa 156 1.9 JTD 16v, year 2004.

edit: I'll try not to do stupid questions

Thanks, Regards.

Hi Eddy,

I don't have connection problems, I understood that if you remove some resistor you may be able to read all ECUs (ABS, engine, Airbag, climate etc). That's why I am asking

Would it be better to use a switch and connect all the pins as described on the diagrams on multiecuscan? 7 for engine, 12 for ABS etc etc?

Meinten Sie: Hallo IHr Babuin Also bei dir ist es kein Verbindungsproblem Für das ABS musst du den Pin 7 auch Pin 1 legen Entweder mit Adapterkabel oder mit Schalter Und dein 156 hat keinen CAN Bus , daher brauchst du den Brücken resistor nicht zu entfernen. Kannst du aber tun , es bringt keine Nachteile Und wenn du einen Schalter einbaust , solltest du darauf achten das Pin 1 + 9 nicht mit anderen Pins verbunden ist. Damit du bei bedarf , auch Giulietta oder Mito die komplett über CAN Bus gelesen werden. Auslesen kannst. Gruß Eddy
Hello IrBabuin

So with you it is not a connection problem

For ABS You have the pin 7 also set Pin 1
Either with or adapter cable with switch

And your 156 does not have CAN bus, so you need the resistor bridges
not to remove.

Can you do but, it brings no disadvantages

And if you einbaust a switch, you should make sure
the pin is 1 + 9 is not connected to other pins.
So when you need, also Giulietta or Mito read completely via CAN bus.
Can read.

Greeting Eddy

OK, thanks AlfaEddy, I will use a switch to conect the correct pins to serial converter

I dig now the modification, for CAN vehicles you remove the termination resistor (120ohms) and the signals pass through to ELM-type chip. Neat.
