FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

[stroj]

it works!!!
danke!

[Tuner182]

Hello

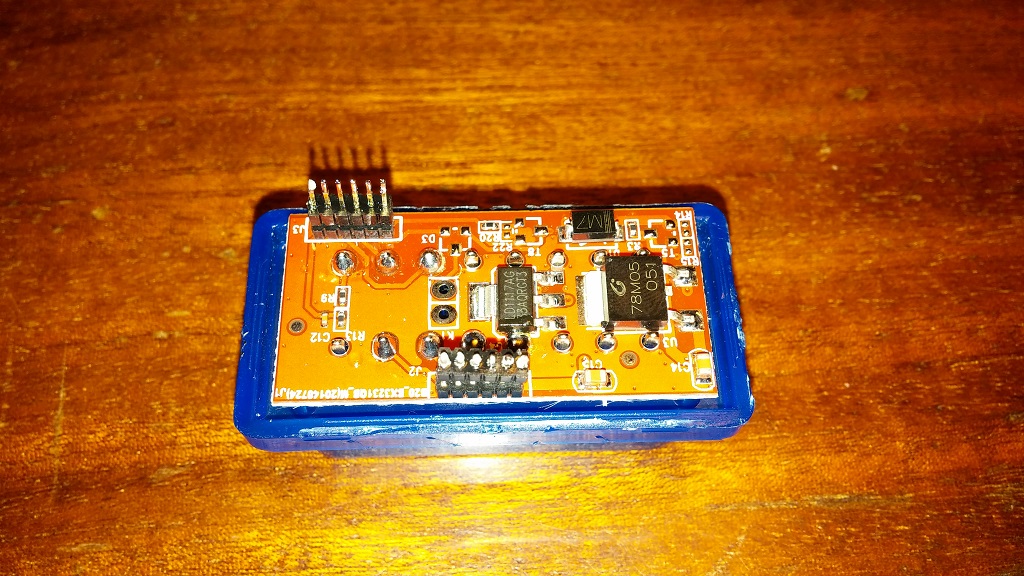

I would to ask you for help. I bought ELM 327 mini Bluetooth and read all this forum but there isn´t this same interface. I tried to find resistor R04 or with signature 121 but without success Could somebody help me to find what I must remove in this interface?

Thank you.

Elm 327



ELm 327.


[Alfaeddy]

Hello Tuner182

On your images you can hardly see anything
No caption read
Why does your Flash Mode, thus is nothing more Readable

Make again a better picture of the resistor R 34 with the chip next

I need to read the imprint

Greeting Eddy

[Tuner182]

Hello Eddy

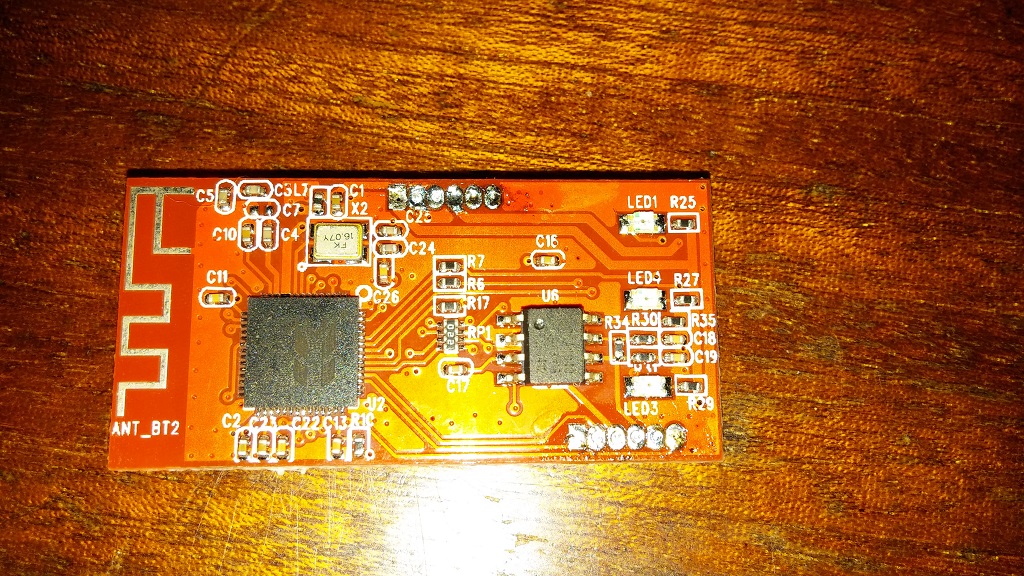

I made new pictures and hope it will be better visible now.

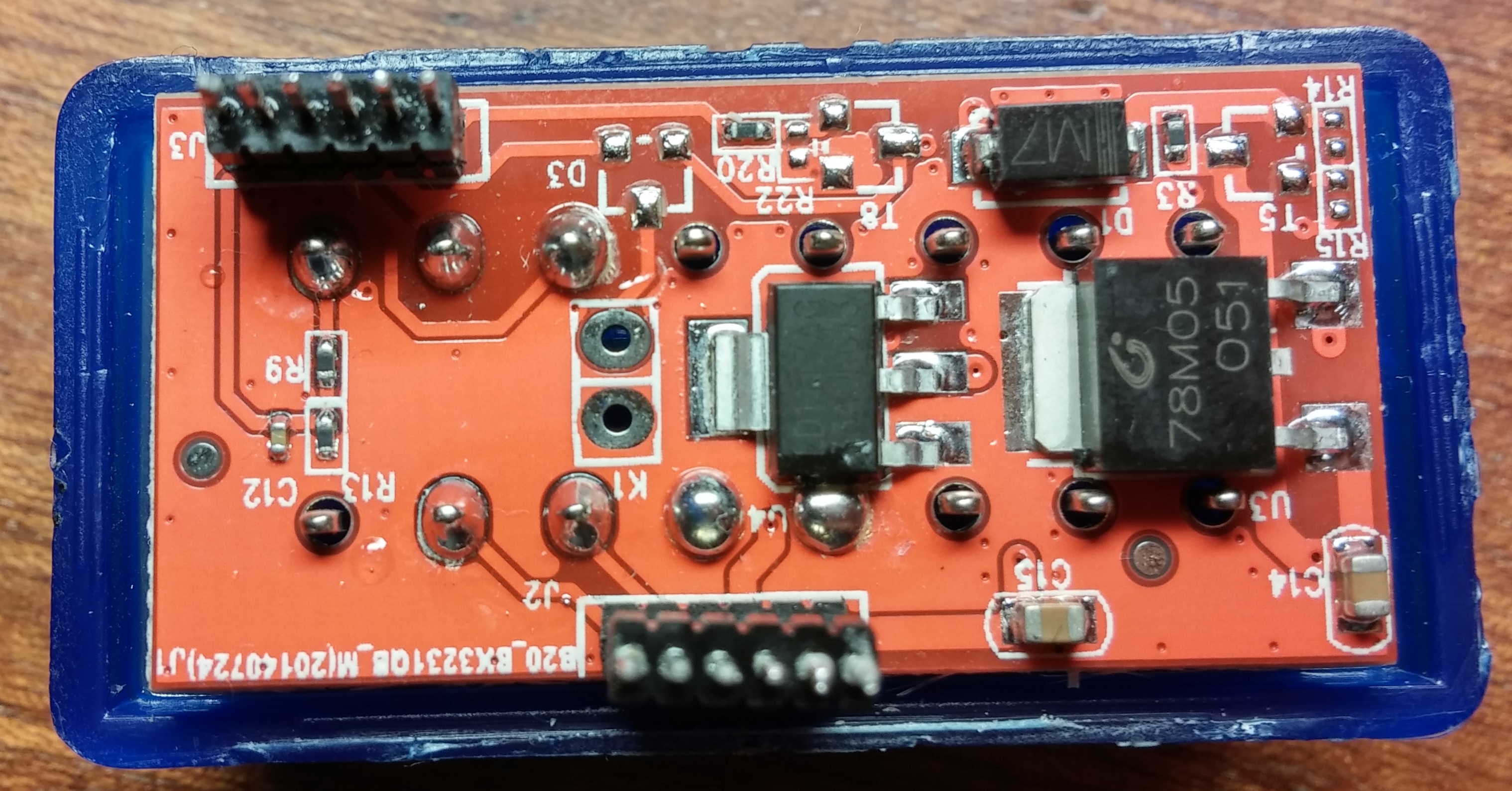

1

Bez názvu.jpg (888.36 KiB) Viewed 7174 times

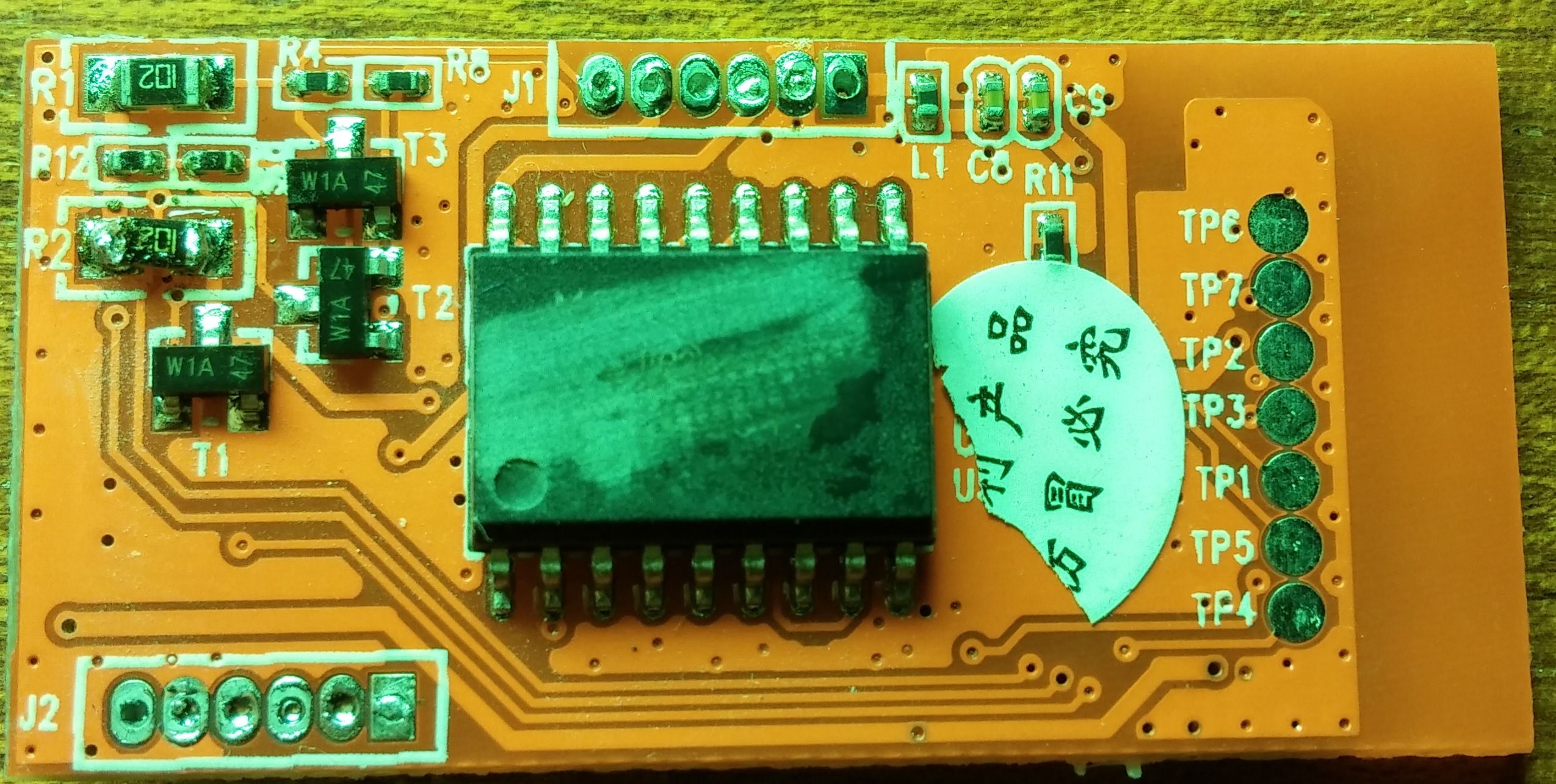

2

Bez názvu1.jpg (929.26 KiB) Viewed 7174 times

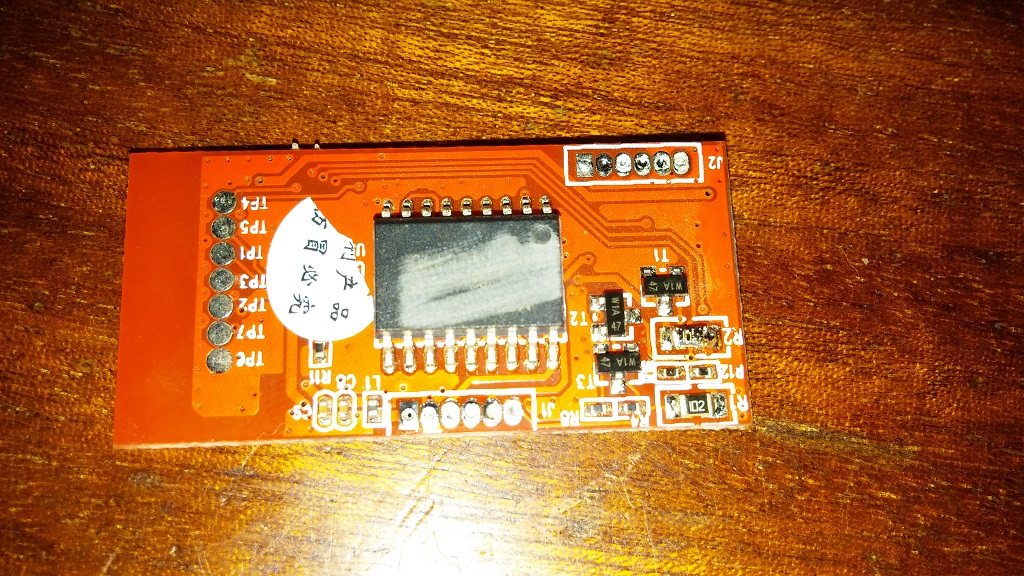

Bez názvu2.jpg (1.1 MiB) Viewed 7174 times

Greeting Tuner182

[Alfaeddy]

Hello Tuner182

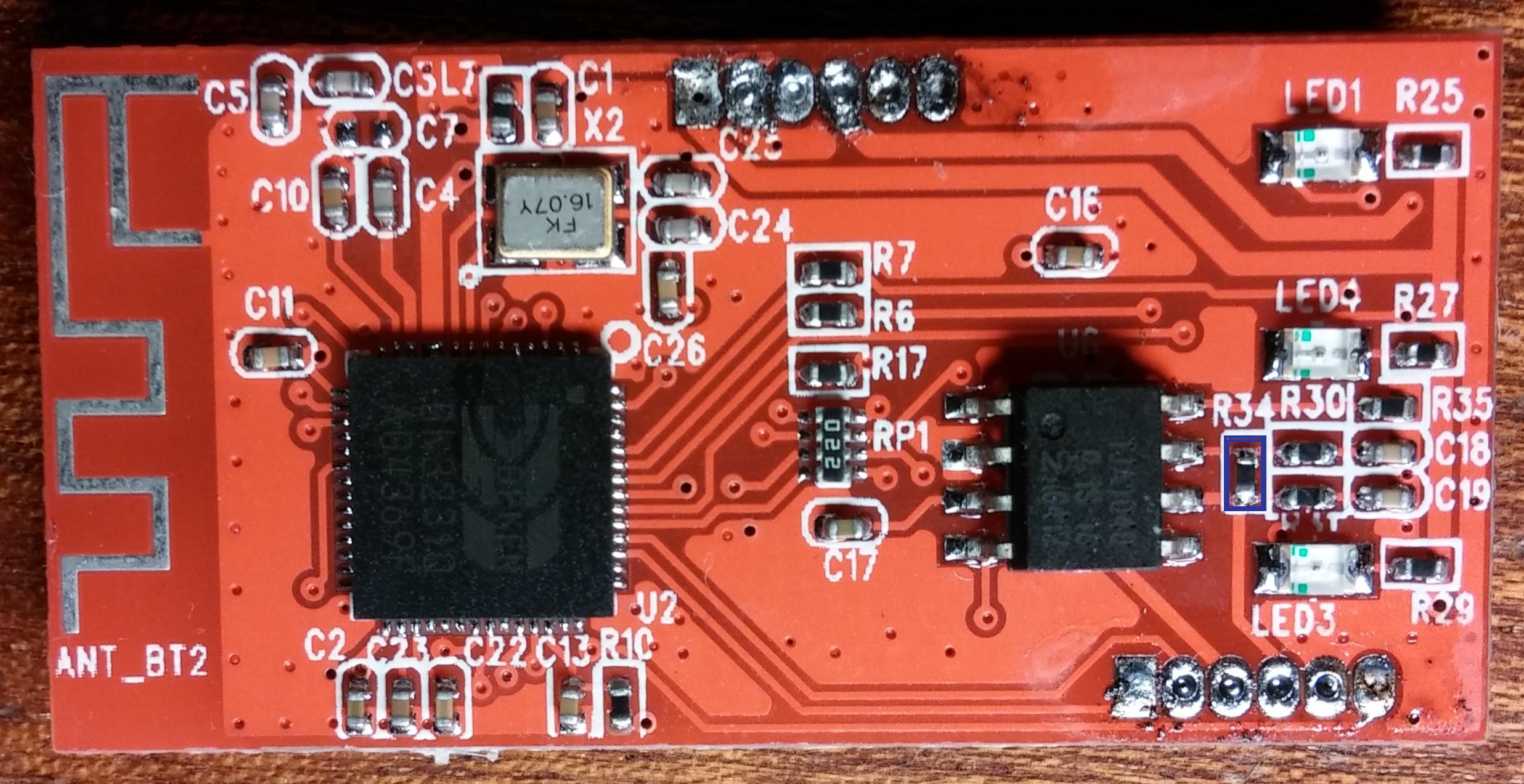

Remove the Resistor in the blue Frame ( R 34)
than you can read the CAN Bus Protokoll with your ELM

Bez názvu markiert.jpg (417.53 KiB) Viewed 7173 times

Greetings Eddy

[Tuner182]

Hello Eddy

Thank you for your quick reaction. I removed the resistor R34 and tried to connect to CAN BUS protocol but still nothing. I didn´t have enough time, so i tried it only once. Today or tommorrow I will have much free time, so i will try it again and i will say you if it works or not.

Thank you

Greeting Tuner182

[Alfaeddy]

Hello Tuner182

Was your problem CAN bus ??

What car / controller you want to read?
check out:
- BT connection
- Drivers? not the driver using the Windows finds.

Greeting Eddy

[Tuner182]

Hello Eddy

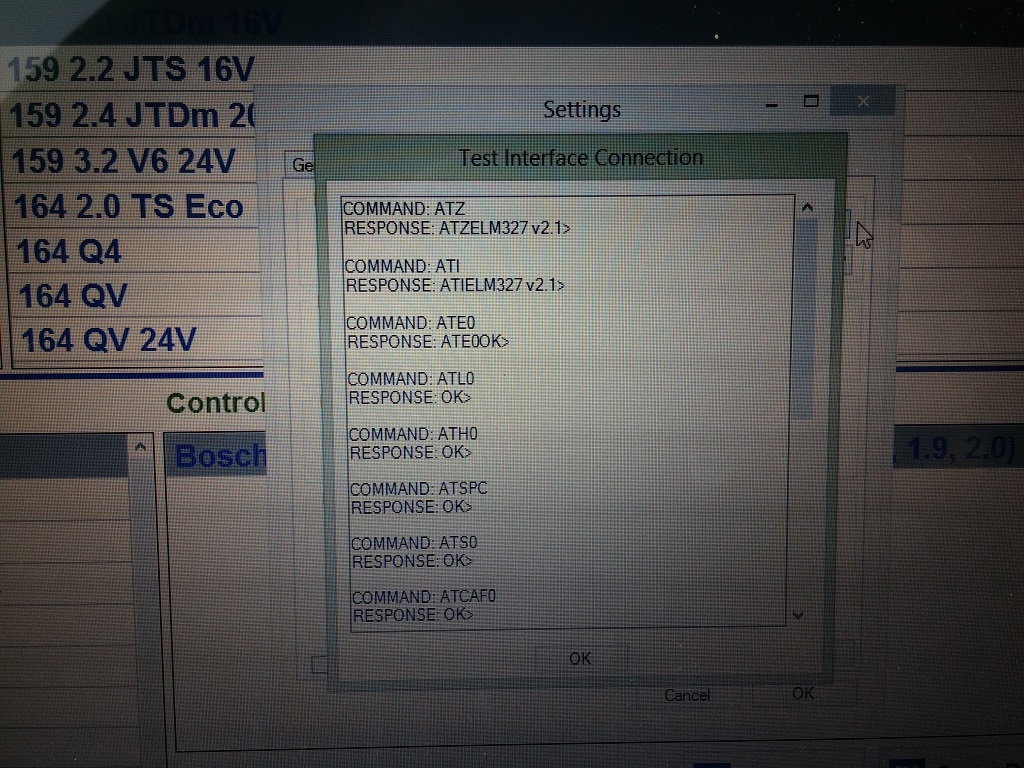

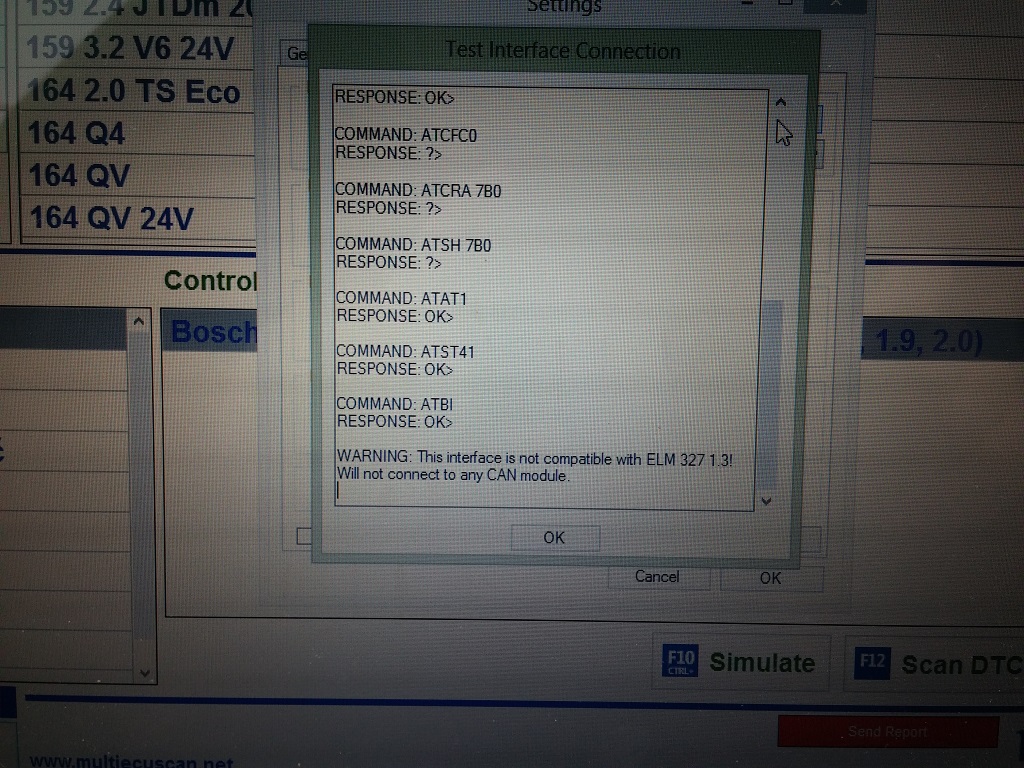

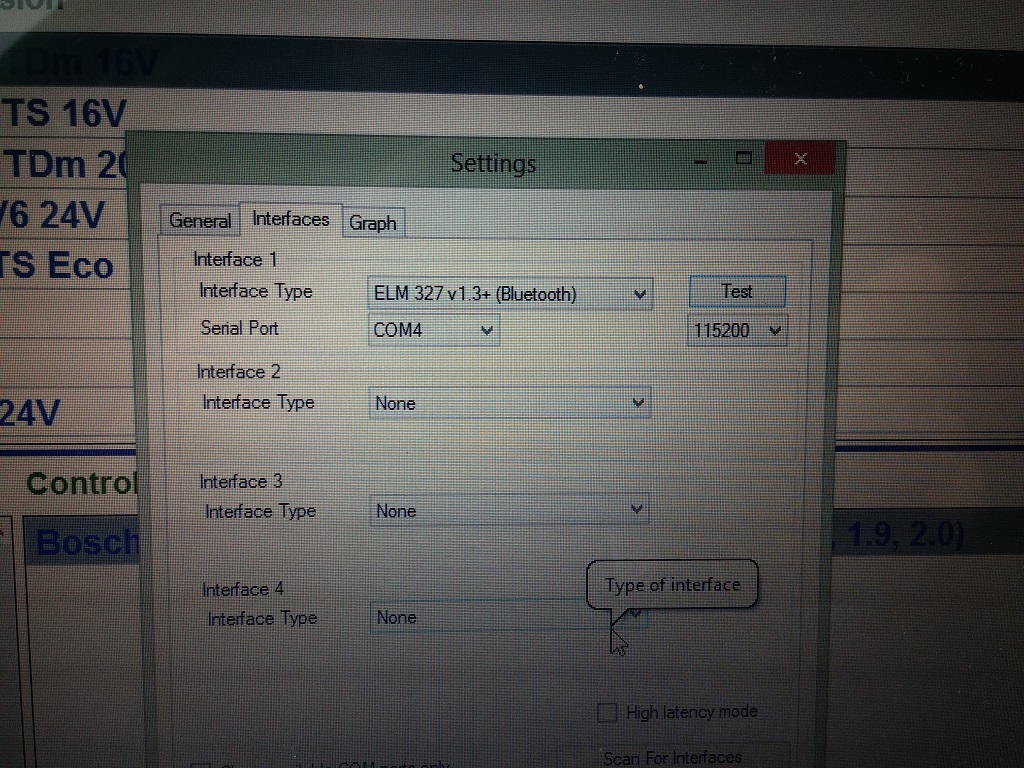

Maybe I found the problem. I have also wired version of ELM327. I modified it sometimes in the past by the instruction on this page. Propably it was your work thank you. That adapter works and I can connect to all control units in my car. I have Alfa Romeo 159 2.0 jtdm (year 2009). But with this BT adapter it not works I tried WIN XP also WIN 8. The bluetooth connection is OK also drivers. I used the newest version of Multiecuscan 2.2 also the older one 1.4 and without success. When I tested the adapter by function in Multiecuscan it showed me that this adaper is not compatible with elm v1.3. This version is 2.1. I took some pictures. Have you allready seen this problem?

Greeting tuner182



[wasuky]

Hi there,

I'm new in the forum and as everyone here, i've got a question for you guys.

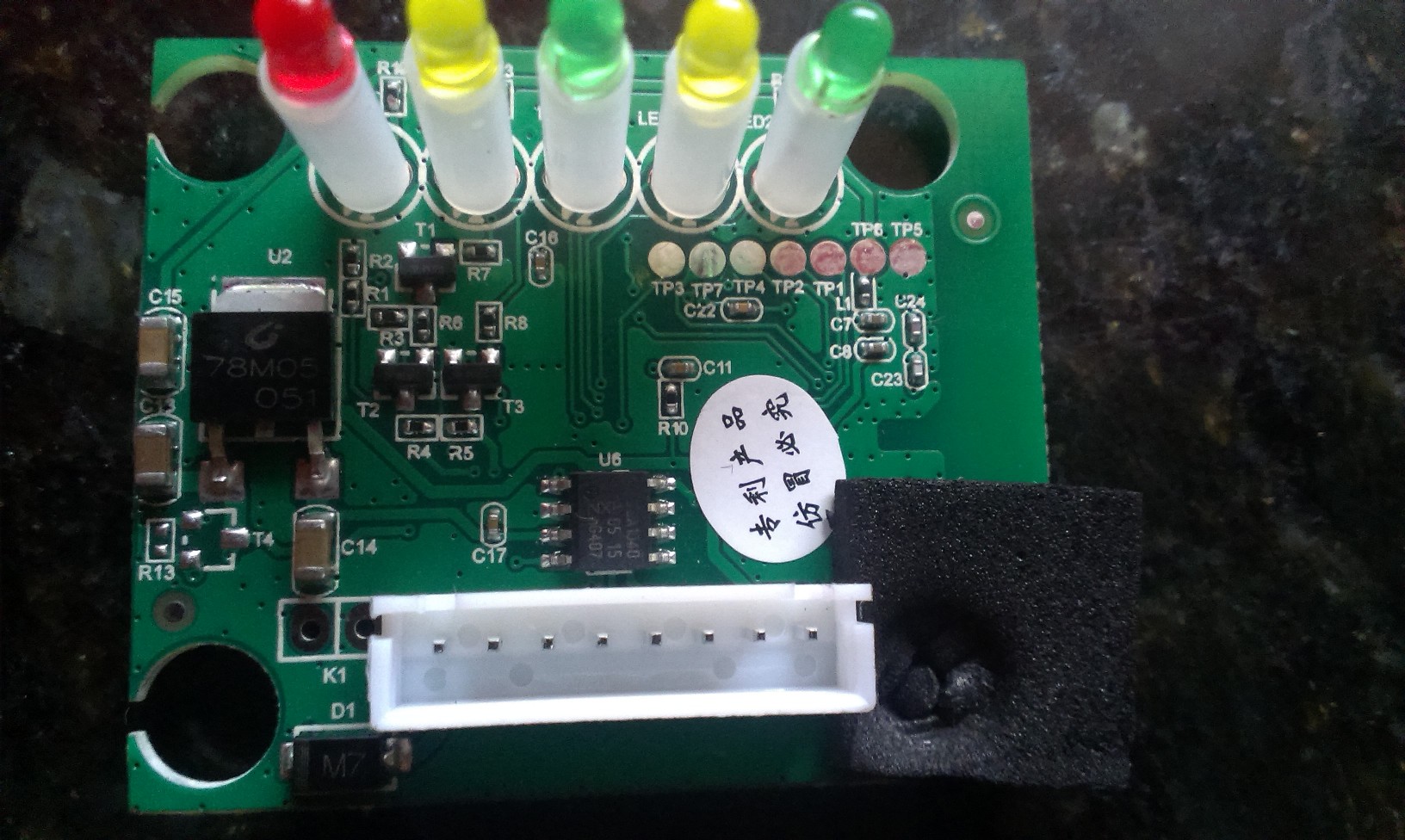

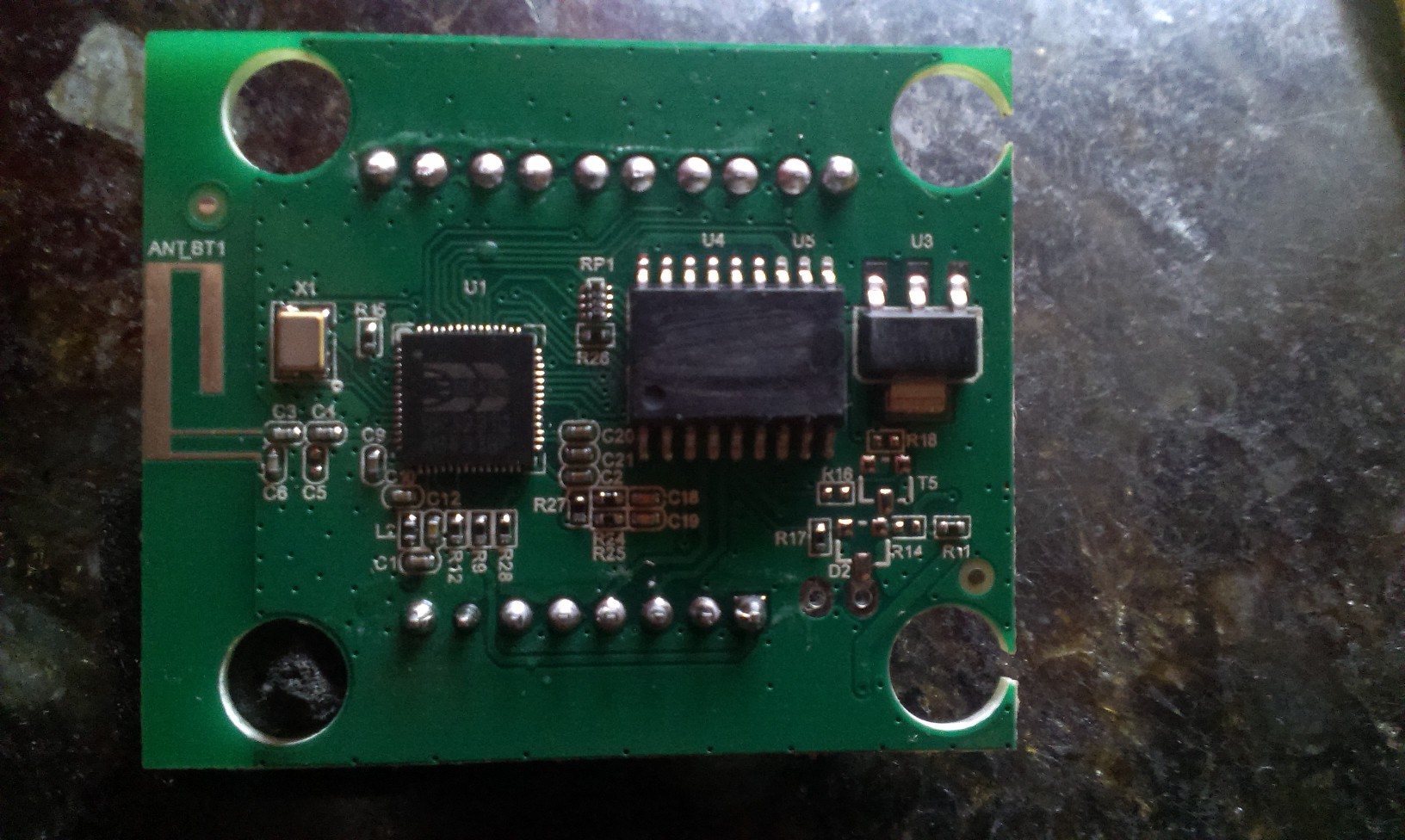

I just rebuilt the engine of my Daewoo Rezzo (is the same engine of the Suzuki Forenza) and decided to scan the ECU to check any error. I just got my bluetooth ELM327 and after a few hours of trying several softwares (including Android apps) the thing can't connect to the ECU. The software/app can read the devide, but can´t connect to the ECU.

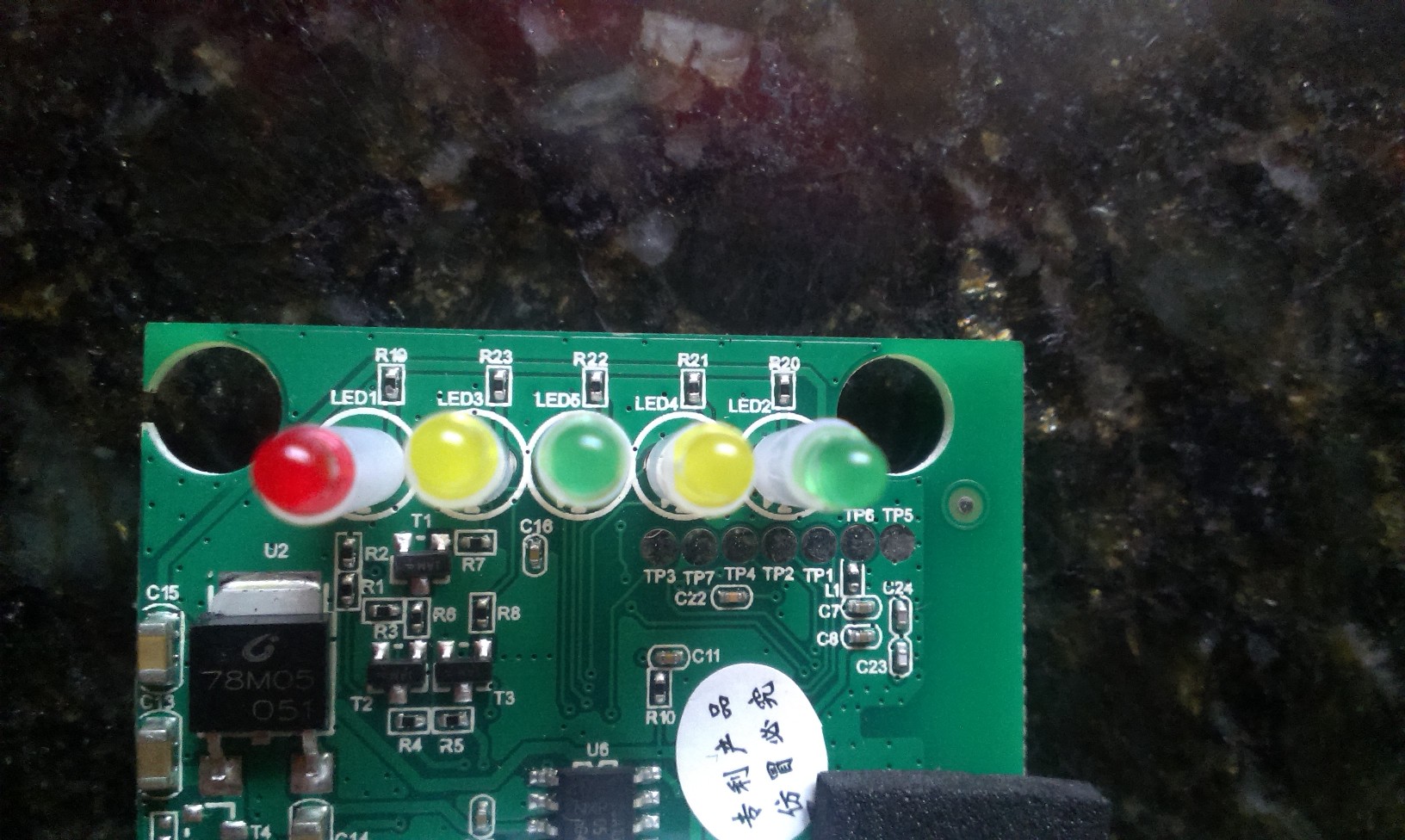

I just read about the resistor R04, i opened my devide and found out that's quite different to the ones i've seen here.

I'm 100% new with all this OBD scan system, so I hope you can give me hand here.

I send my thanks in advance!!

[Tony Evo]

Hello guys , I have this elm 327 bluetooth Chinese works fine for the diagnosis engine , but does not work for the diagnosis of the CAN network , which changes I can make ?
https://www.dropbox.com/s/93n07taak7zsh ... 9.jpg?dl=0
https://www.dropbox.com/s/6k0yqy8zpbwx9 ... 2.jpg?dl=0
https://www.dropbox.com/s/xzt8t94uh1706 ... 8.jpg?dl=0

very thanks
