Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 08 Oct 2014, 12:07
by Waltomatic
Xiii, os caras entraram numas de falar só em alemão... fiquei de fora!
kkkkkkkkkk
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 08 Oct 2014, 20:23
by Alfaeddy
Hallo Alfa156Sarajevo
Die Software Forscan.org hatte ich einige Beiträge weiter oben ja schon genannt.
Gruß Eddy
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 11 Oct 2014, 13:44
by Marco244
Hallo Eddy,
also mit ForScan komme ich in die ECU meines Focus.
Dies zeigt mir allerdings eine ganze Reihe komischer FEhlercodes an.
Außerdem funktioniert die LIVE-Aufzeichnung nicht
Also gibt es definitiv keine Möglichkeit, den Bluetooth Adapter iwie zu modifizieren?
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 11 Oct 2014, 22:32
by Alfaeddy
Hi Marco
Die Sache bei dir hat ja nichts mit dem hier beschriebenen Problem zu tun.
Das mit dem Brückenwiderstand ist ein Timing Problem mit dem die Software nicht
gut zurecht kommt.
Bei der Sache mit deinem Focus hat die von dir genutzte Software nicht die
richtigen Umrechnungsformeln um mit den Daten welches der ECU heraus gibt
etwas anfangen zu können.
Leider kann ich da nicht weiter helfen , Sorry
Gruß Eddy
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 21 Oct 2014, 10:11
by EddyDj
Hello Eddy,

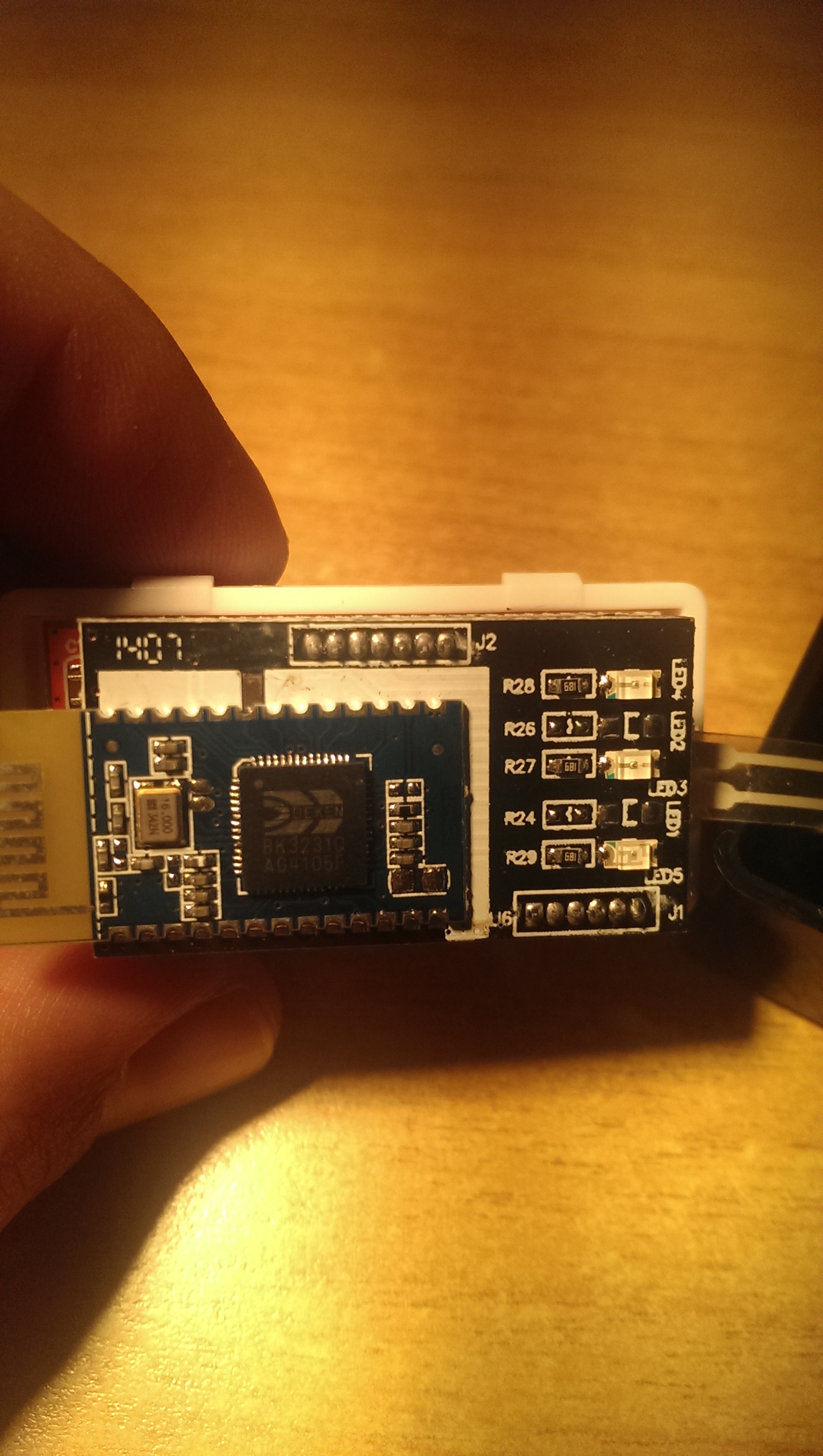

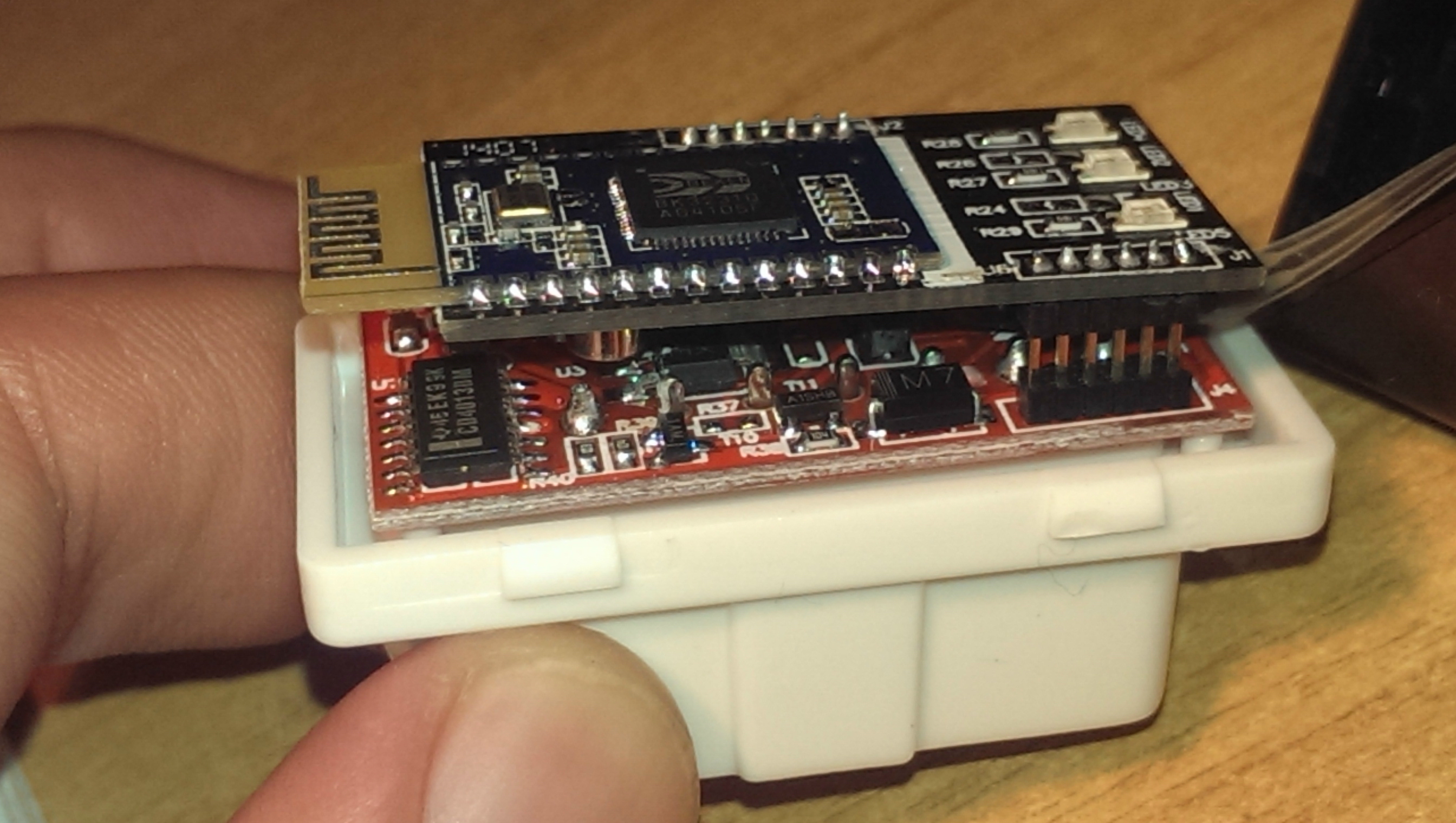

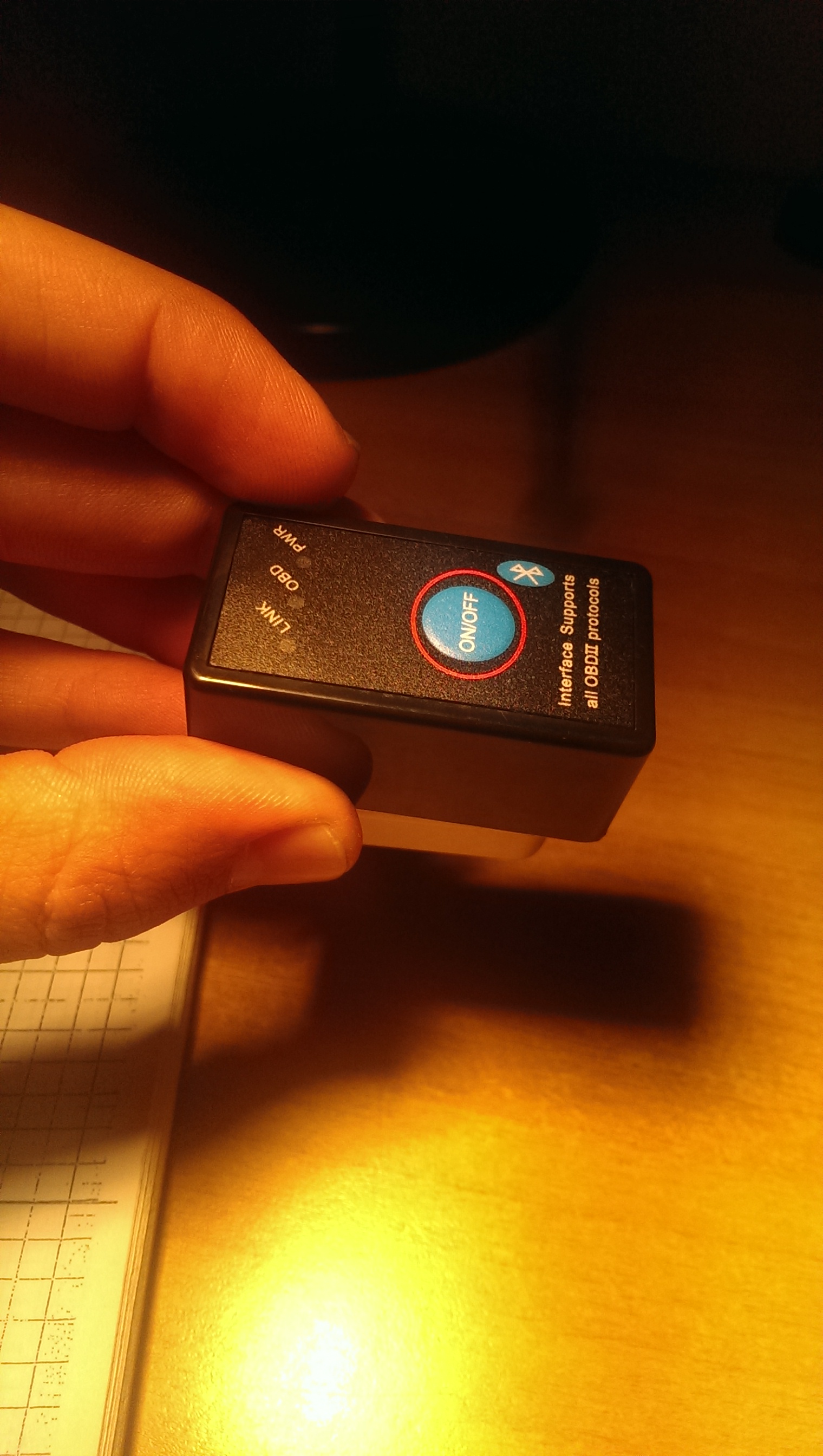

I bought this elm327 interface (v1.5) and connect it to the engine control unit, but does not connect to other control can as the body computer. My car is Alfa MiTo 1.4 16v and I also bought the adapter type A3 for multiecuscan. To connect to the CAN line in addition to connecting the A3 I have to remove the resistance? Where is it? I tried to look for it but can not find it, I am attaching pictures hoping you can give me a hand.
Thanks in advance, Eddy.
- IMAG1784.jpg (793.62 KiB) Viewed 5798 times
- IMAG1783.jpg (896.33 KiB) Viewed 5798 times
- IMAG1788.jpg (1.09 MiB) Viewed 5798 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 21 Oct 2014, 10:14
by EddyDj
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 21 Oct 2014, 10:16
by EddyDj

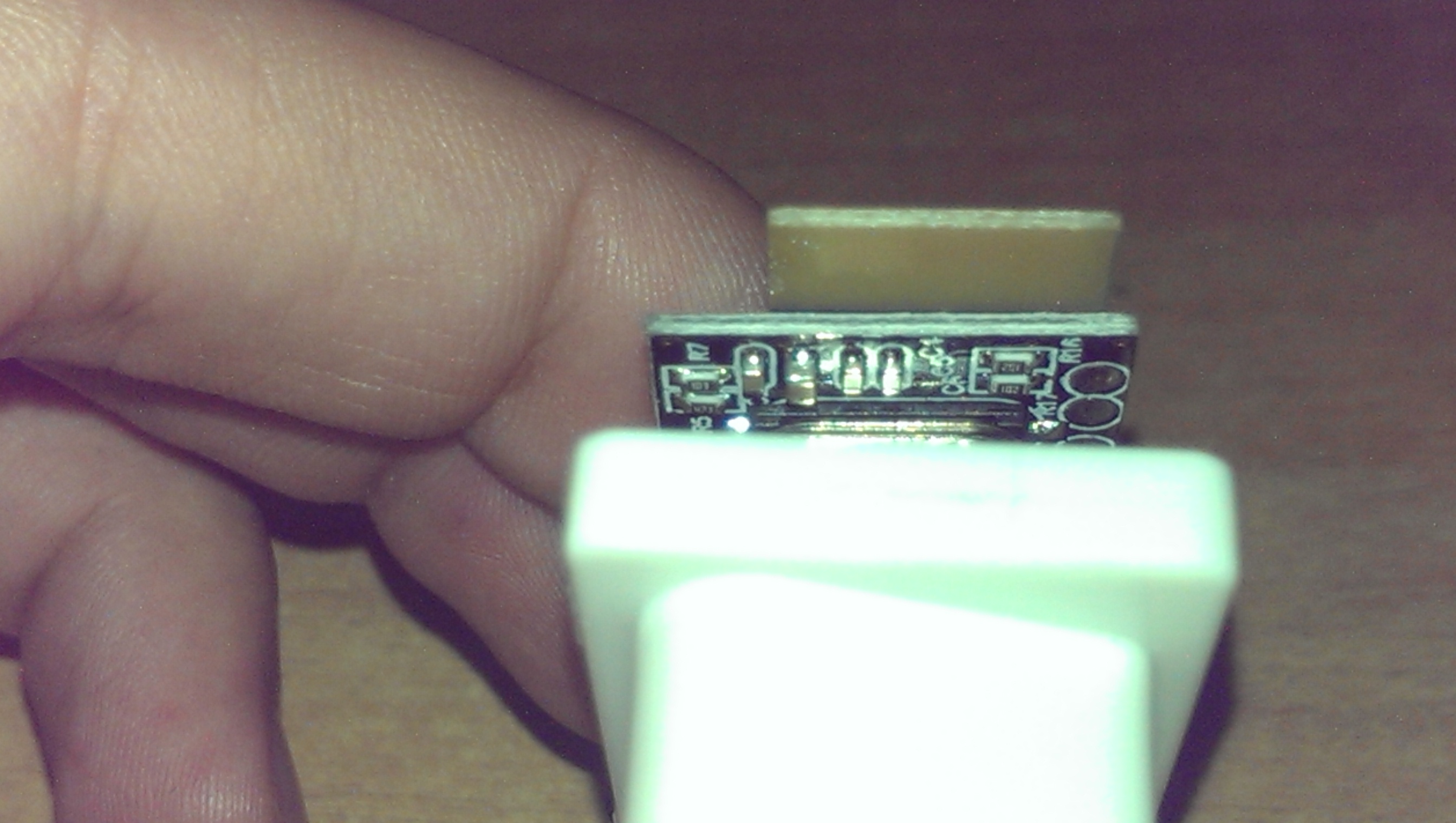

Last picture.
- IMAG1801.jpg (651.34 KiB) Viewed 5799 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 21 Oct 2014, 11:48
by Alfaeddy
Hi Eddy
nice name
Finally an interface which I do not know yet
You made good pictures, only to no is the bridge resistor
visible.
Search the chip imprinted with MCP2551 or TJA1040 and even take a picture of the chip and the environment around this chip
Greetings Eddy
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 21 Oct 2014, 13:58
by EddyDj
Hello Eddy,
also your good name

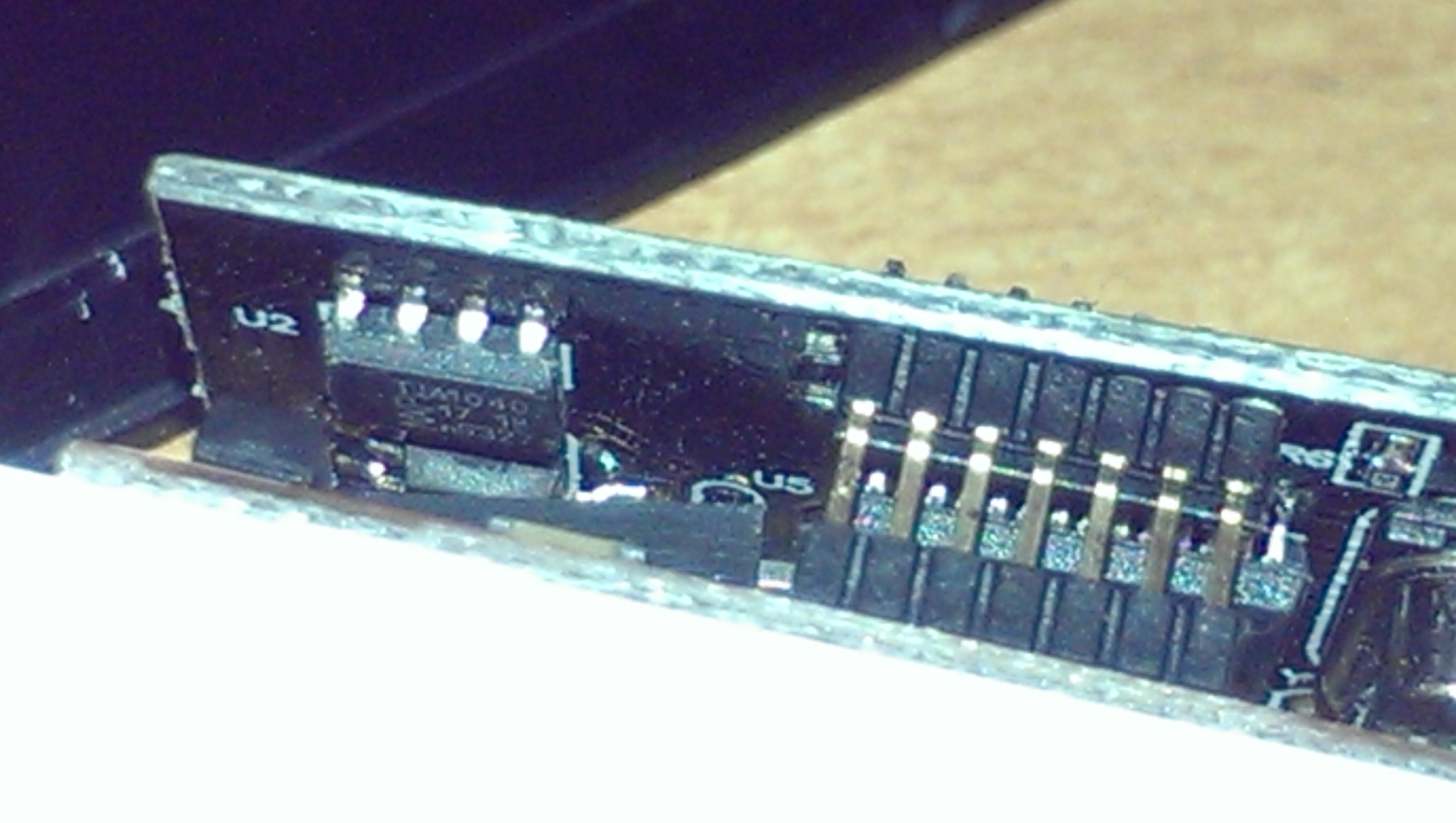

this is the photo of the chip TJA1040

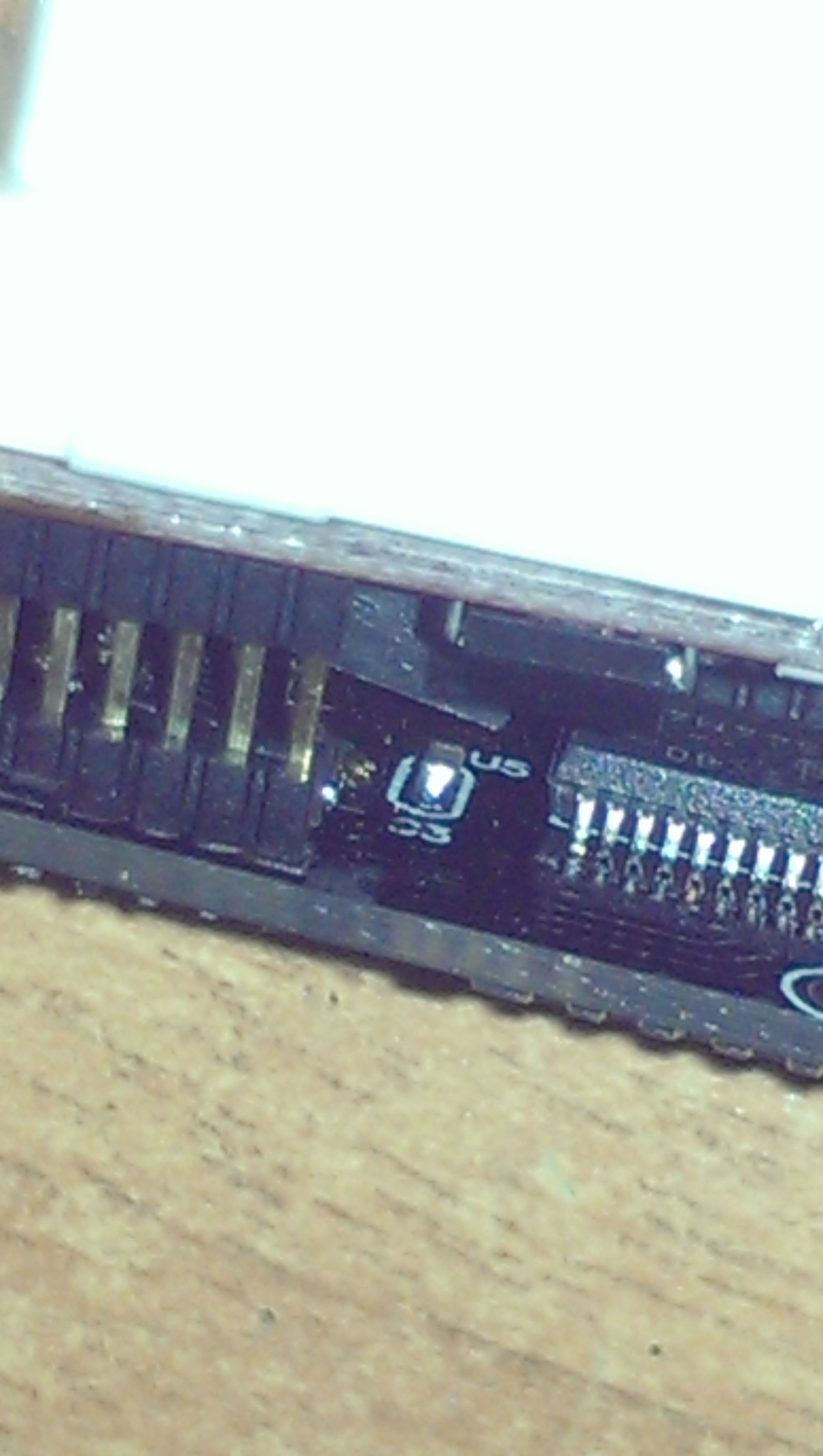

and around there is another chip and there is only this resistor (?) C3. I have to remove it (C3)?
Best Regards Eddy
- IMAG1811.jpg (615.57 KiB) Viewed 5798 times
- IMAG1816.jpg (477.32 KiB) Viewed 5798 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 21 Oct 2014, 14:25
by Alfaeddy
Hi Eddy
I'm confused
C3? no,
C is the name for a capacitor
The resistor will be only to see if you can solder the upper board
and send me a picture can.
By coincidence I've just in another forum probably the same board with the search for the bridge resistor
This user has unfortunately I still do not make better pictures
Greetings Eddy
