Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 29 Sep 2014, 09:07
by hlqq
¡¡¡¡Thanks a lot!!!!!!!
hlqq
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 29 Sep 2014, 19:42
by Matees
Hello,
I try to solve my problem. I have Alfa Romeo 159 and I would like to connect to airbags via my ELM327 BT interface. Connection to engine is working well. I spent here some hours, so my question is: Shall I remove resistor 121 after making 2 parts from one interface? I think, that there is a Picture of similar interface here:
viewtopic.php?f=5&t=1493&hilit=bluetooth&start=1280
I attach some pictures of my interface, but it's almost nothing to see...
Thanks in advance for your help.
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 29 Sep 2014, 21:27
by Alfaeddy
Hello Matees
The bridgeresistor sits on the lower PCB
and is designated R2.
Your boards are soldered together but unfortunately
therefore you get very difficult at this resistor
With some skillful of bridgeresistor has to be removed anyway, even without the boards to separate
I have this already made this mini ELM
Greetings Eddy

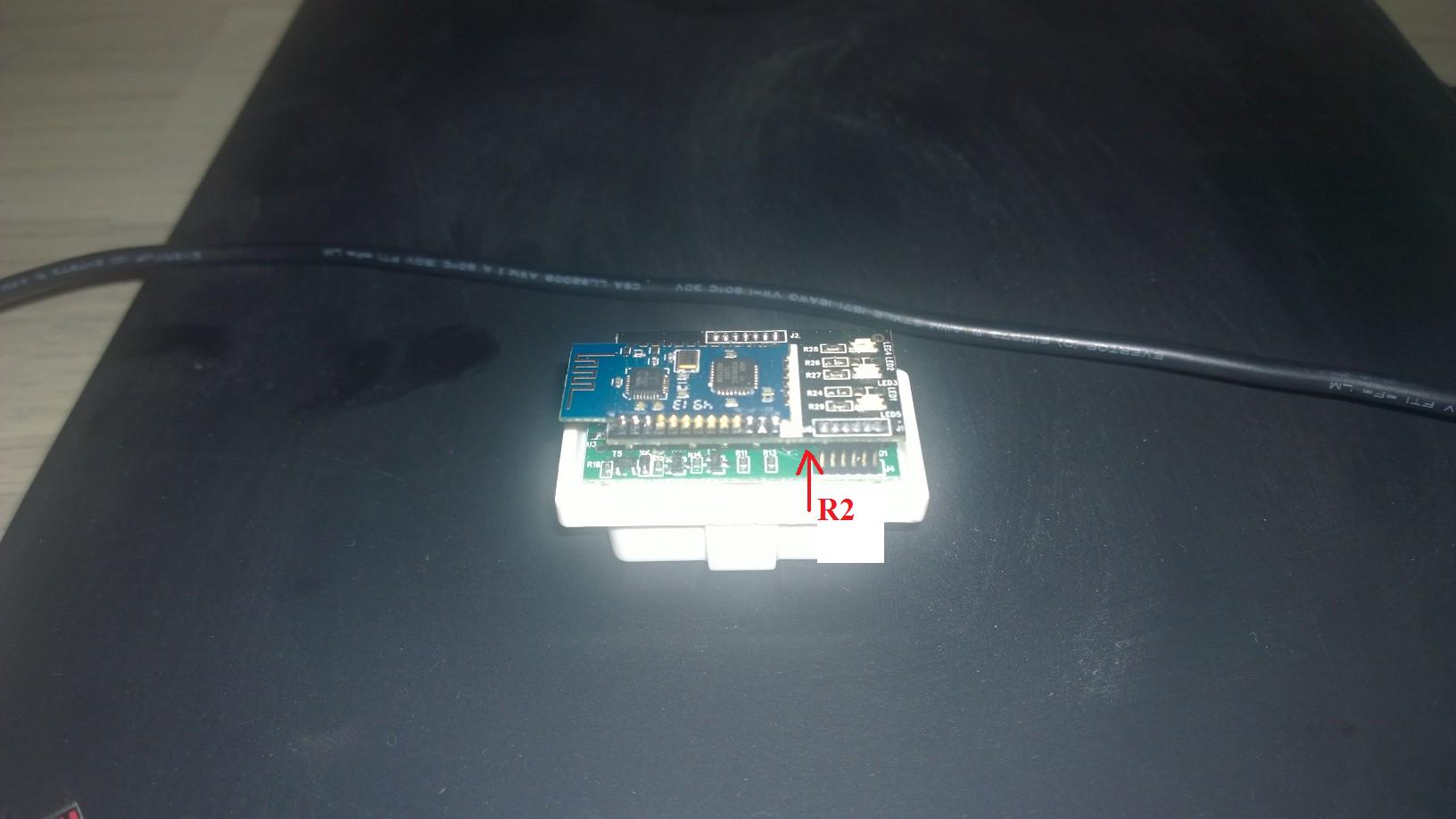

- WP_20140929_006 markiert.jpg (116.23 KiB) Viewed 8182 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 01 Oct 2014, 12:47
by Matees
Hi Eddy,
thanks a lot for your quick help. Resistor is out now. I will check it tomorrow on my car.
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 03 Oct 2014, 19:29
by Herpez
Hi friends...
Sorry for such a noob question but how to you open the elm327 to access the board?
Do you cut the plastic?
Mine is this
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 03 Oct 2014, 19:47
by Alfaeddy
hello
Opening the is comparatively easy
simply press lightly with a sharp knife into the space around the casing of an other to solve
In part, the glued
others are just clipped
and immediately go apart
Greetings Eddy
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 03 Oct 2014, 22:42
by Herpez
- IMG_20141003_233836.JPG (243.51 KiB) Viewed 8116 times

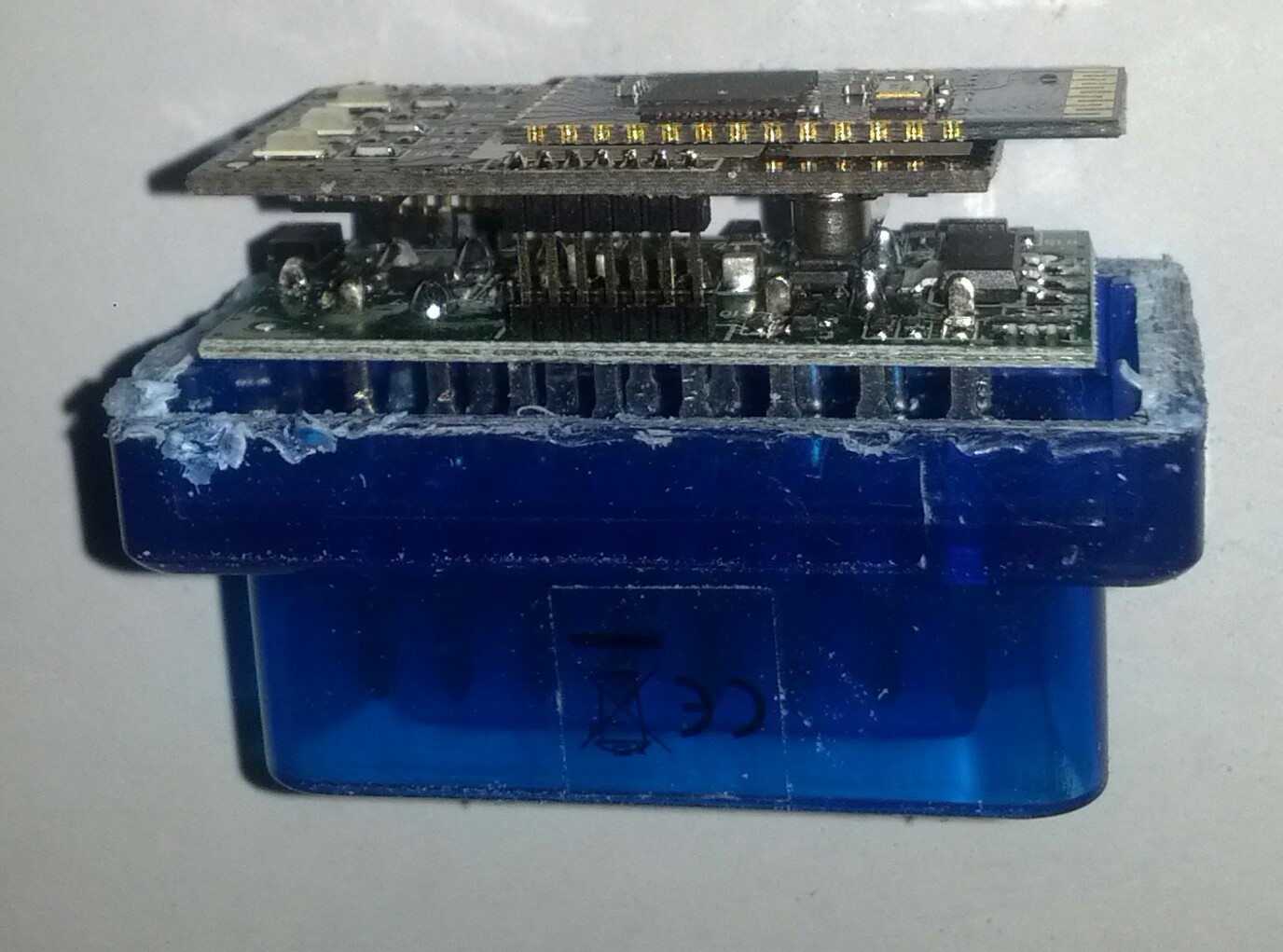

- IMG_20141003_233905.JPG (241.52 KiB) Viewed 8116 times
Here is my board.
Can you tell me what resistor needs to go out?
Thanks
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 04 Oct 2014, 07:24
by Alfaeddy
hello
Wow, now that's a violent opening
The components on the board are very difficult to detect
unfavorable angle
But the R2 should be the bridge resistance
There are in this thread several times already this ELM Interface
The second picture is for comparing
Greetings Eddy

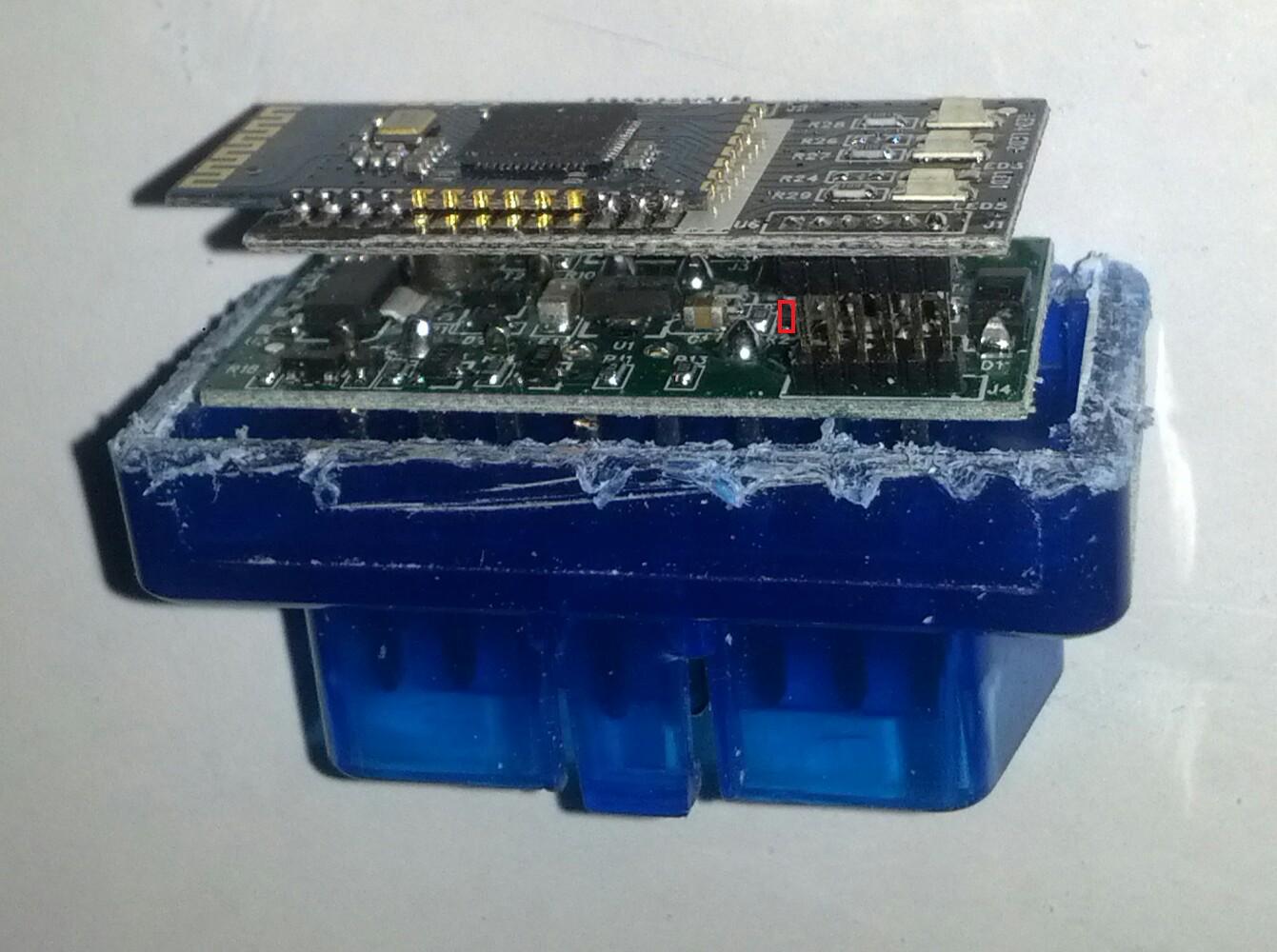

- IMG_20141003_233836 markiert.jpg (128.39 KiB) Viewed 8114 times

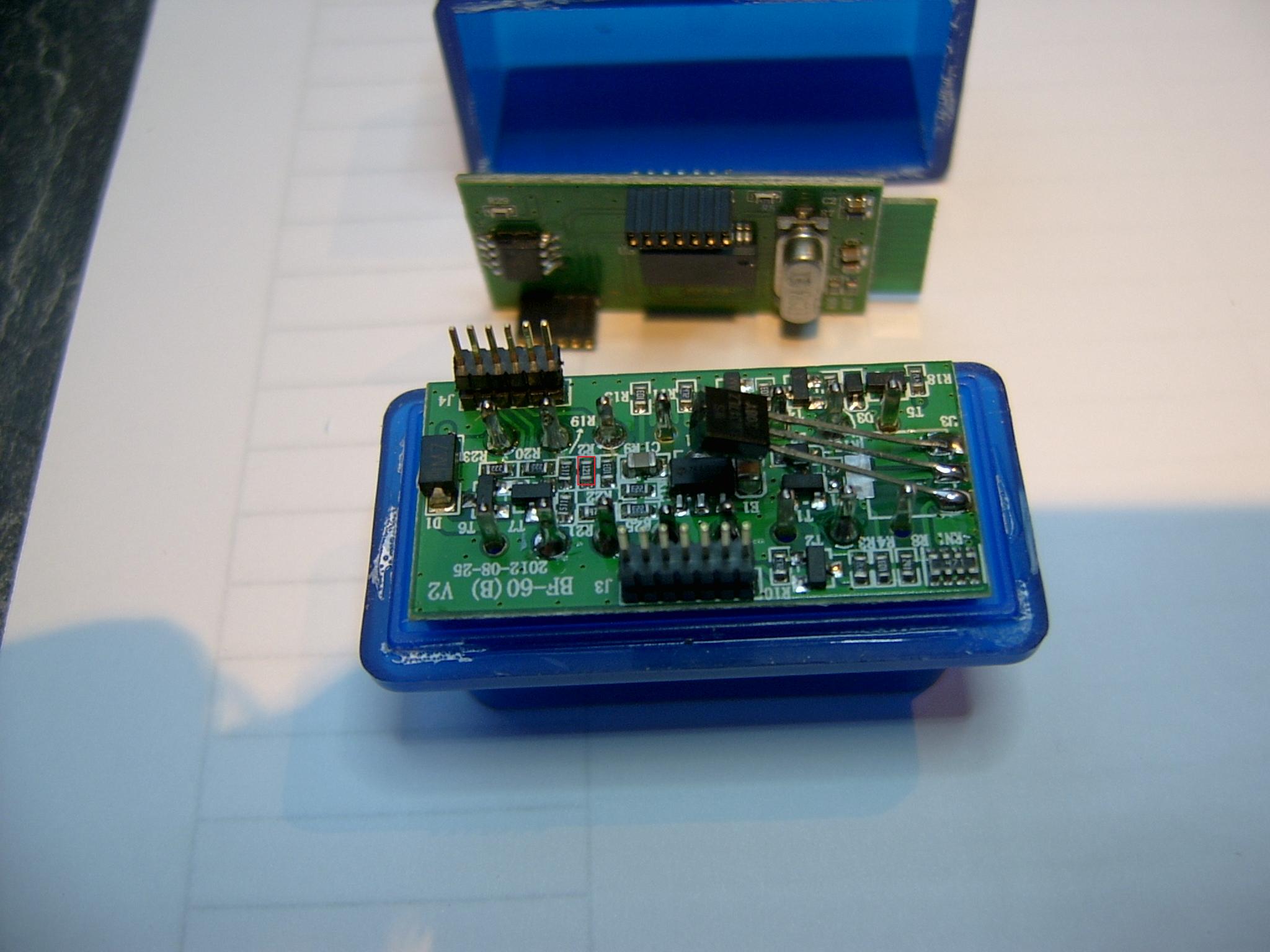

- ELM mini markiert.jpg (225.77 KiB) Viewed 8114 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 04 Oct 2014, 17:07
by Herpez
Alfaeddy wrote:hello
Wow, now that's a violent opening
The components on the board are very difficult to detect
unfavorable angle
But the R2 should be the bridge resistance
There are in this thread several times already this ELM Interface
The second picture is for comparing
Greetings
Thanks found the r2 but seems impossible to get there. Is possible to detach the two boards or are they soldered?
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 04 Oct 2014, 18:54
by Alfaeddy
Hello Herpez
The two boards are soldered correctly
If you are careful you can break out the resistor with a stable needle. But beware that the interconnects do not break.
You can also with a desoldering pump desoldering the solder joints and separate the two boards.
Remove resistor and solder the boards again
Greetings Eddy
