FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

[Alfaeddy]

Hello Edgarss24

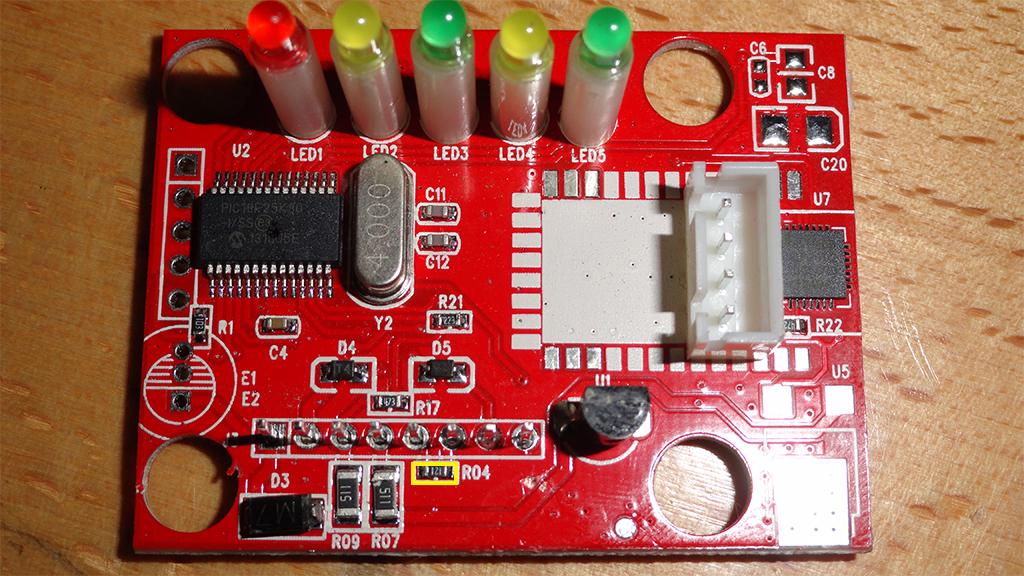

Remove the red marked Resistor

What ist your Car ?


Greetings Eddy

IMG_20140831_120111 markiert.jpg (1.05 MiB) Viewed 8653 times

[viris6662]

Hi everbody,
I have the same problem with ELM327, it is probably 1.5 I do not know. I have FIAT STILO MW 1.9JTD 103kW and I can connect to Engine ECU but it is all. So can you write to me which of resistor I can elimine. I want to connect to Service, Dashboard and central. Thank you for all notes.

[Alfaeddy]

Hello viris6662

I think you want to make fun of me
last image I have marked the resistor

Only the CAN bus chip TJA 1040 means to you and MCP 2551

Greetings Eddy

[viris6662]

So after that it will run correct? Can you write to me how can I active warning light when I lock/unlock the car. When I lock and unlock the car it does not flashing. Will I need code from code card? I do not have it. Thanks.

[Alfaeddy]

hello viris6662

Yes, of course, does your ELM after the CAN Bus Protocol


And the turn signal control can not be changed in all body computer
In some, the possible if this in your Body Comp. is you need to try.
And of course this is only possible with the code card

Greetings Eddy

[Wasdeo]

Hello viris6662

I think you want to make fun of me
last image I have marked the resistor

Only the CAN bus chip TJA 1040 means to you and MCP 2551

Greetings Eddy

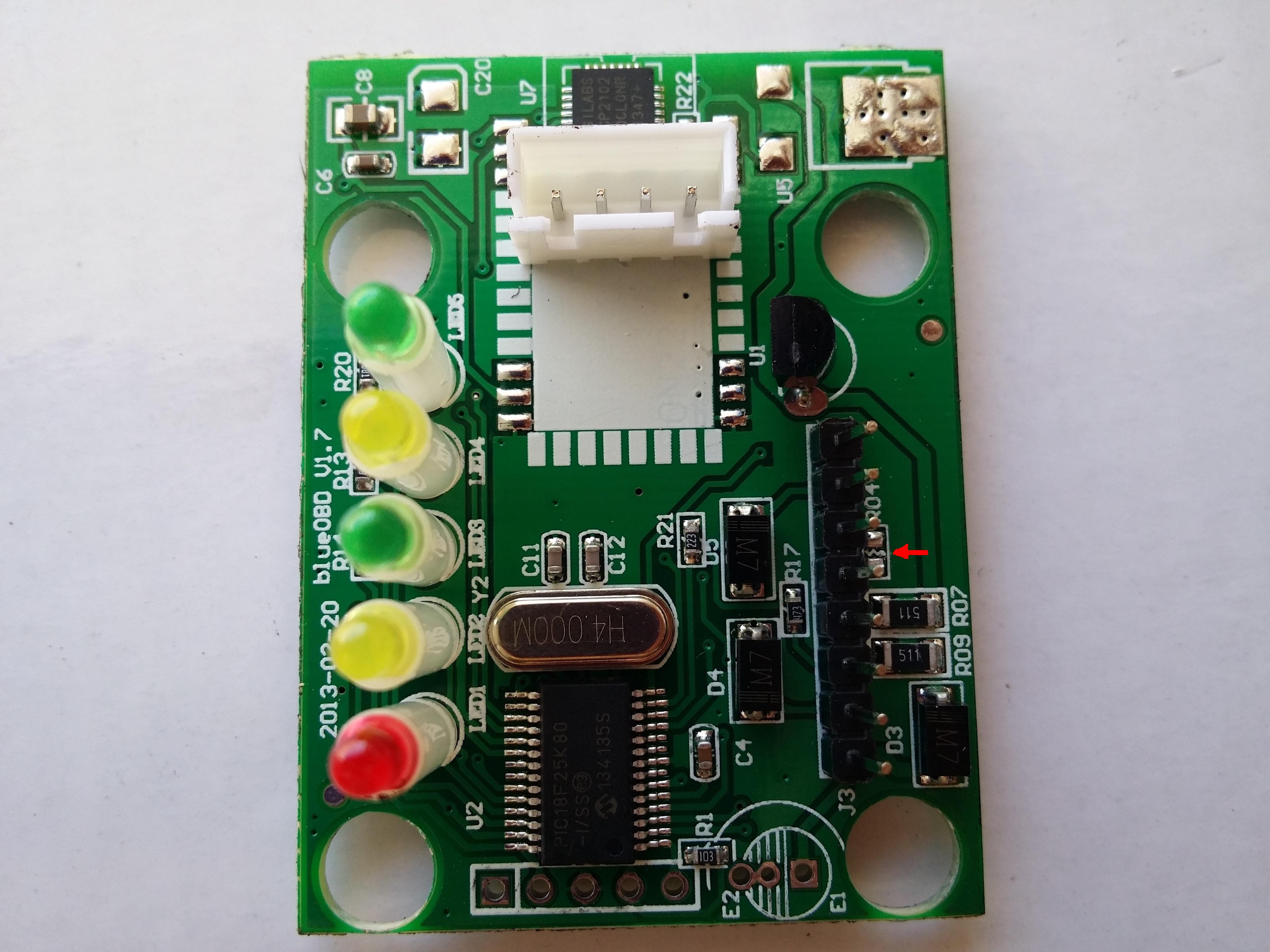

Hello alfaeddy, could you help me with my device? It's a bit blurry one picture should I take a new one? For a Fiat Grande Punto. Thanks in advance.

Hello. I just received my elm 327 BT 1.5

It turns the led on after connecting it to the car but then it goes off. Could someone point me on which resistor should I remove? Thanks.

http://i.imgur.com/dEPvNuo.jpg

http://i.imgur.com/98DUNER.jpg

[Alfaeddy]

Hello Wasdeo

In your picture should be removed first time the plug and the plug housing.
You can save yourself a new image.

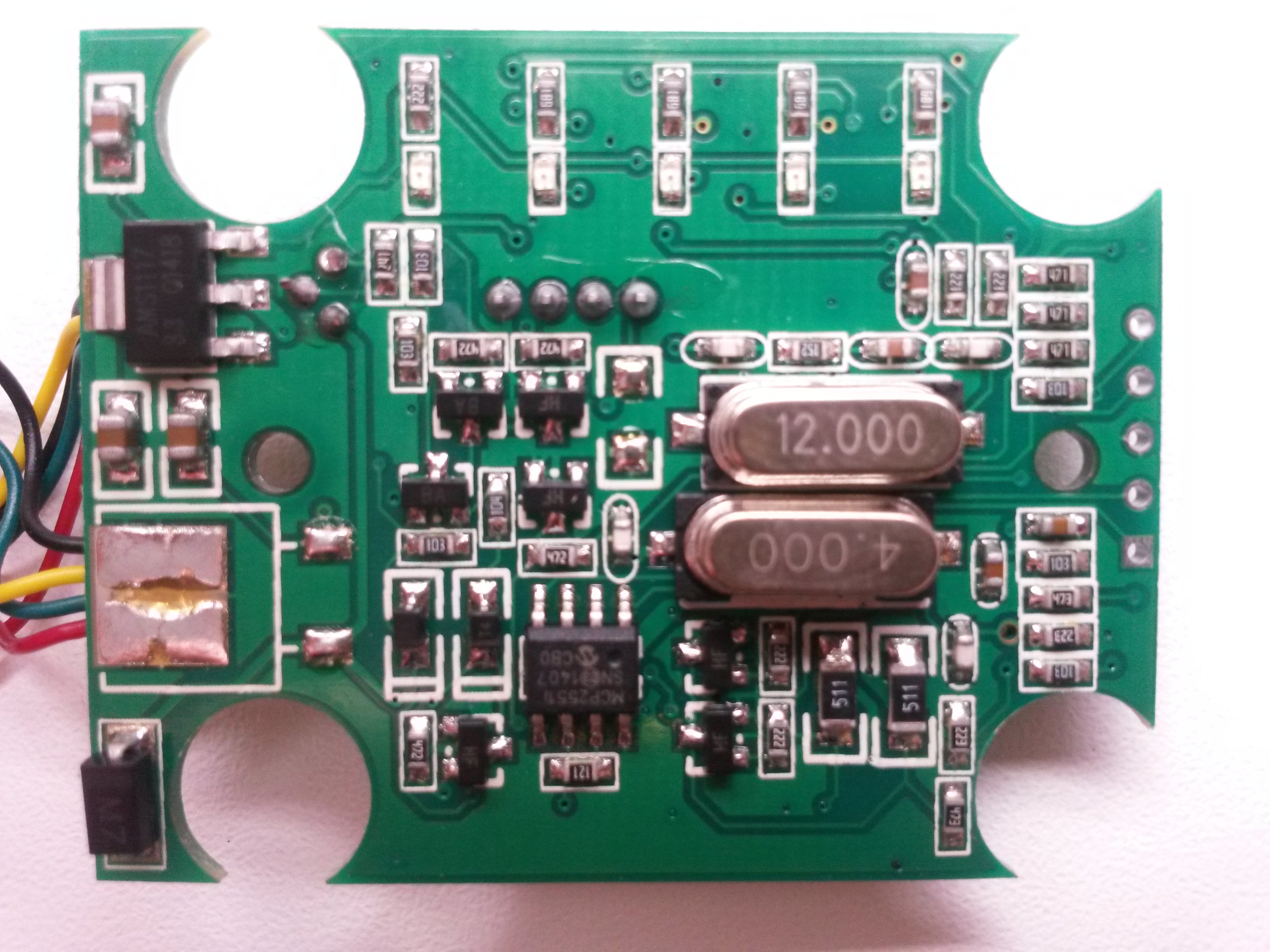

Here the resistor is marked in yellow. Remove this

The interface is indeed a USB version, but the layout is the same as yours

Greetings Eddy

1 markiert.jpg (147.58 KiB) Viewed 8624 times

[Wasdeo]

Thanks Alfaeddy, I'll give it a go. Indeed seems to be the same as you posted.

Thanks a lot!

[elgrego]

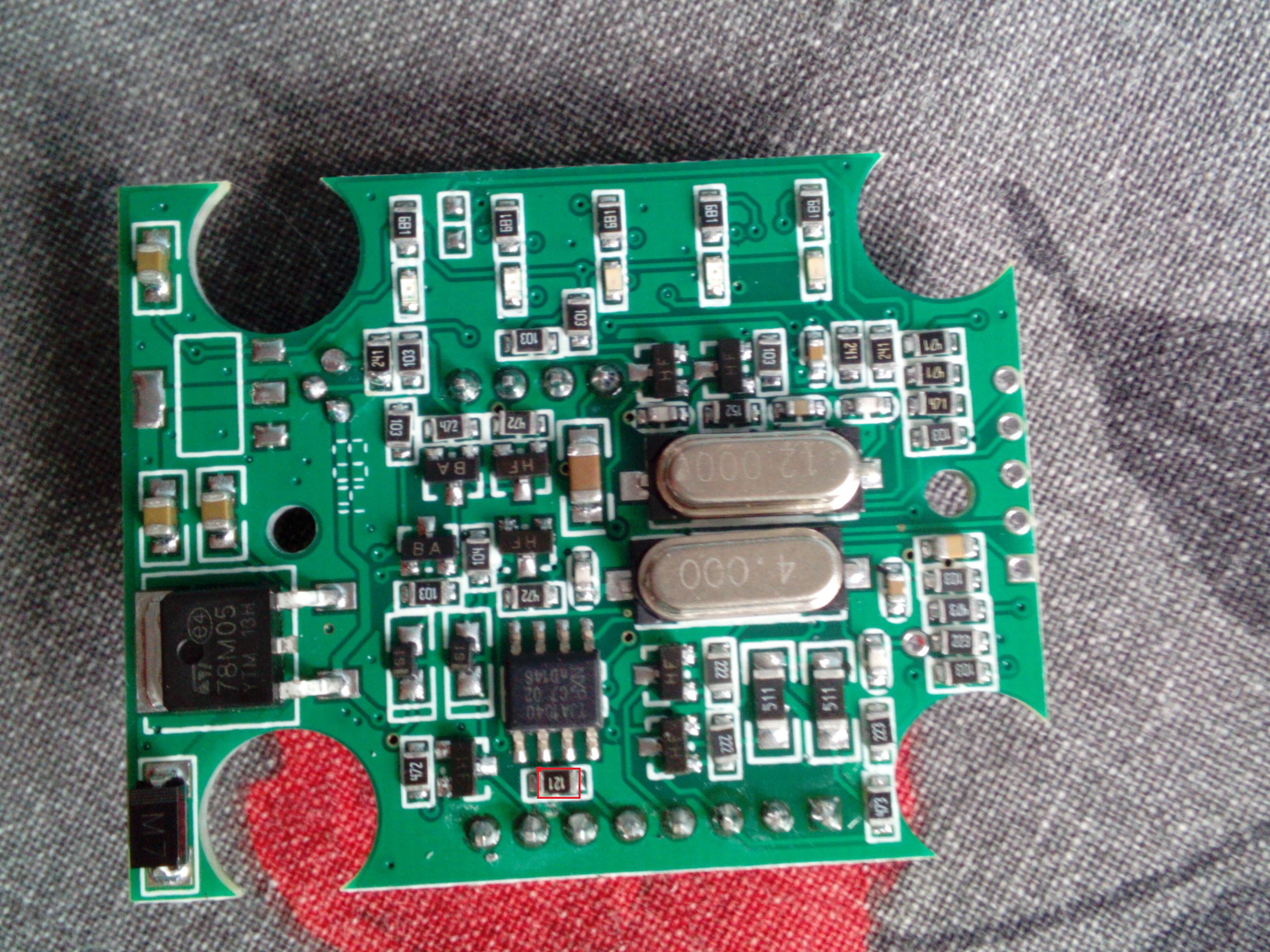

ELM 327-1.4 (1).jpg (929.84 KiB) Viewed 8608 times

ELM 327-1.4 (1).jpg (929.84 KiB) Viewed 8608 times

HI !!! I have ELM 327 OBD II 1.4 but I not can connect to body in my car ( Fiat Grande Punto 1.9 jtd Multijet ).I use FES 3.2.6
Removed the R04 and continues have the same.
I DO NOT KNOW WHAT TO DO !!!!! Please help me

[ArGinTTT]

Hello Edy,

I read ALL forum pages, and I'm not sure about, where is my problem.
I buy this interface: original Elm327 bluetooth with the ORIGINAL chip (Elm327 v2.1) on the circuit board, not a chinese one.

My car:

Fiat STILO, 2001,1.6 16v.

With this interface I want to read the following modules, using MultiEcuScan 1.7;
- Service, Electrical,Dashboard, etc (without ABS,AirBag,ECU - because on this module, i use an KKl interface)

The problem is:
I can't read with this Elm 327 interface, the desire modules (service,electrical etc)...
In this moment I can read with this interface only ECU module;

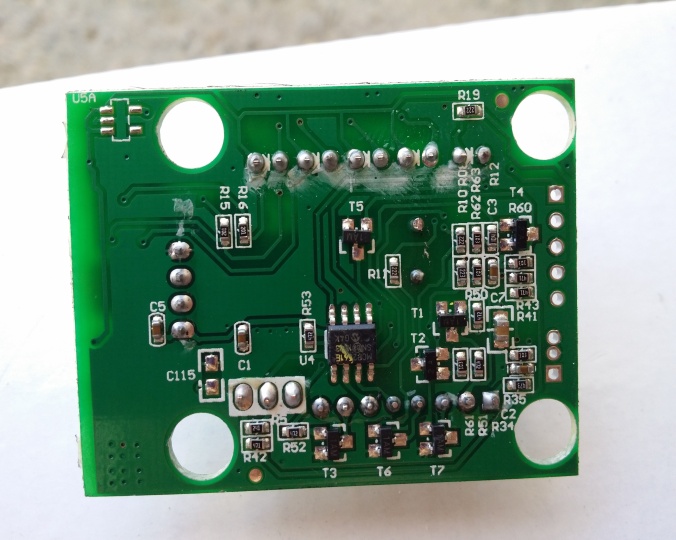

I don't see any resistor on this board, or I'm wrong?


My question is: Why? and what can I do, to make it work? the problem are the drivers, settings?

Please the a look on the pictures.
THANK YOU for your support.[/b]

Photos:
http://postimg.org/image/f6o2pu3zl/
http://postimg.org/image/ca11pjy5t/
http://postimg.org/image/5v20svrg1/
