hi Alfaeddy in the red circle there is an R04 resistor.
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 21 Feb 2014, 15:14
by andro58
Hi, samebody can help me ? I bought the elm 327 bluetooth and it's work fine with motor module but when I try to connect to the body module the error connection appear. I use fiat multiecuscan 1.7
THANKS A LOT !!!!!!!!
Andrea
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 21 Feb 2014, 17:29
by juanito
My elm is here v1.5 bluetooth. İ want to modifications this elm and i want to open cruise control. My car is fiat linea 1.3 95hp 2013 euro5

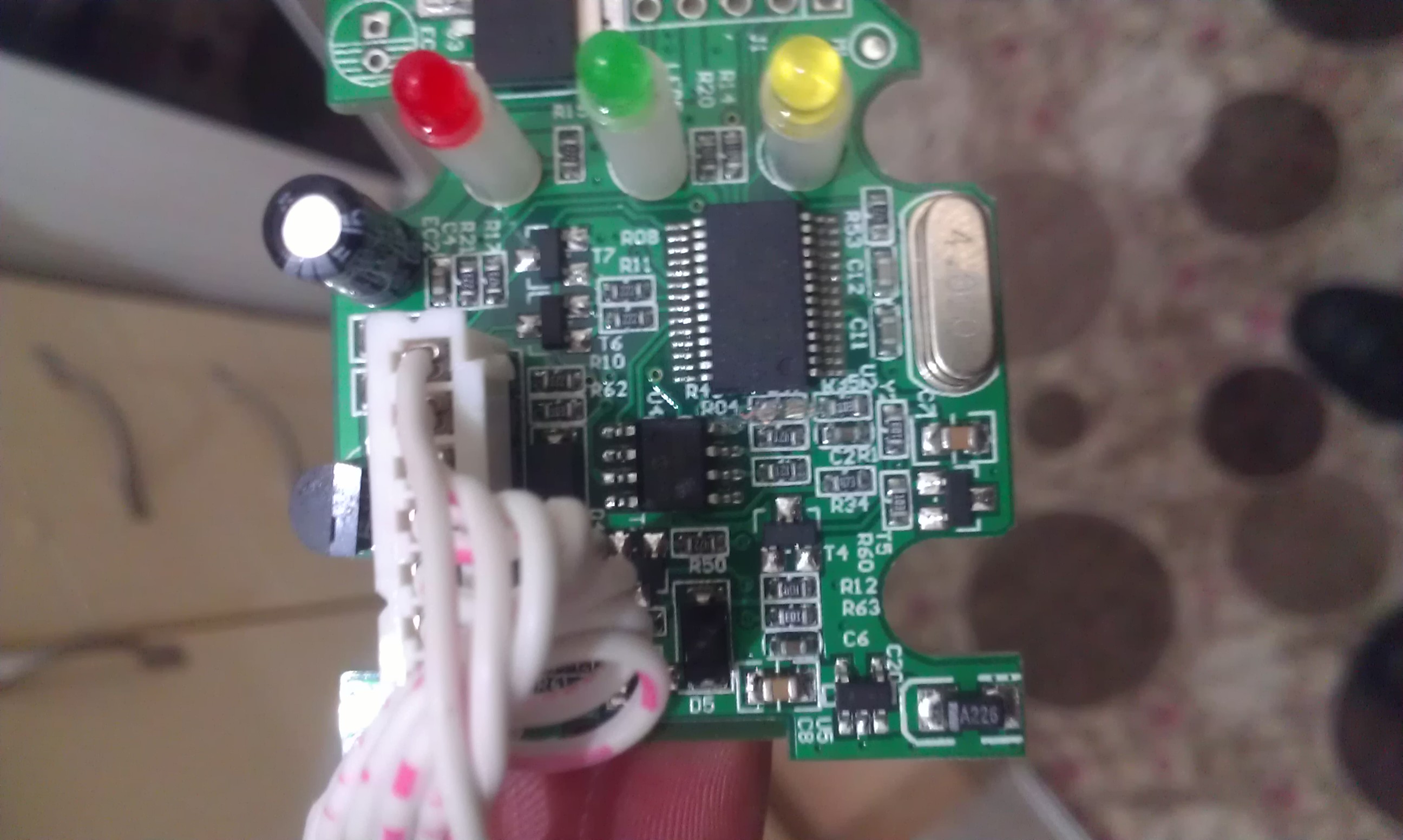

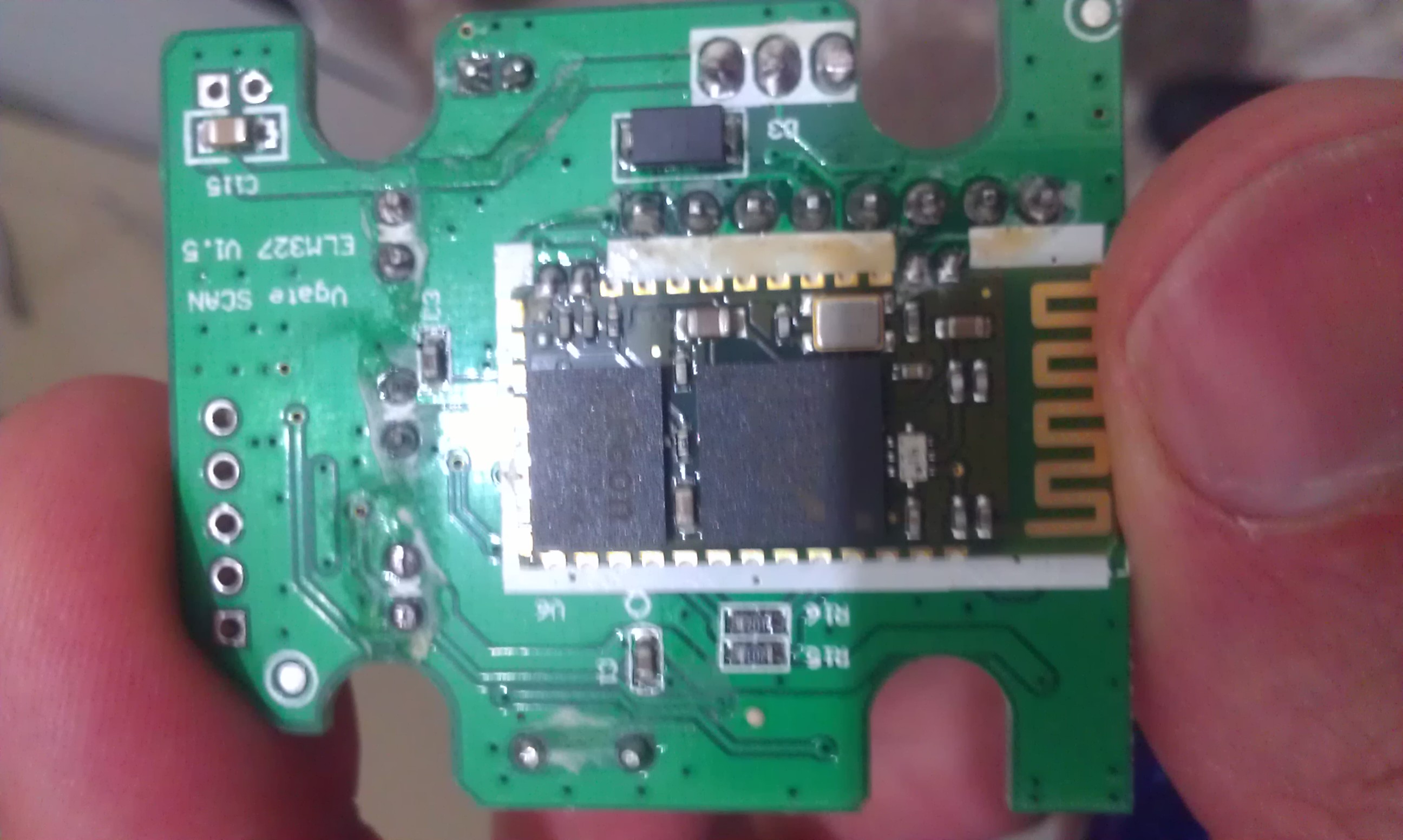

- IMAG0386.jpg (456.94 KiB) Viewed 4679 times
- IMAG0388.jpg (457.24 KiB) Viewed 4679 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 21 Feb 2014, 19:28
by Alfaeddy
Hello Gieboue
Thank you for the better picture
Remove big the resistor R04, in the red frame
Greetings Eddy

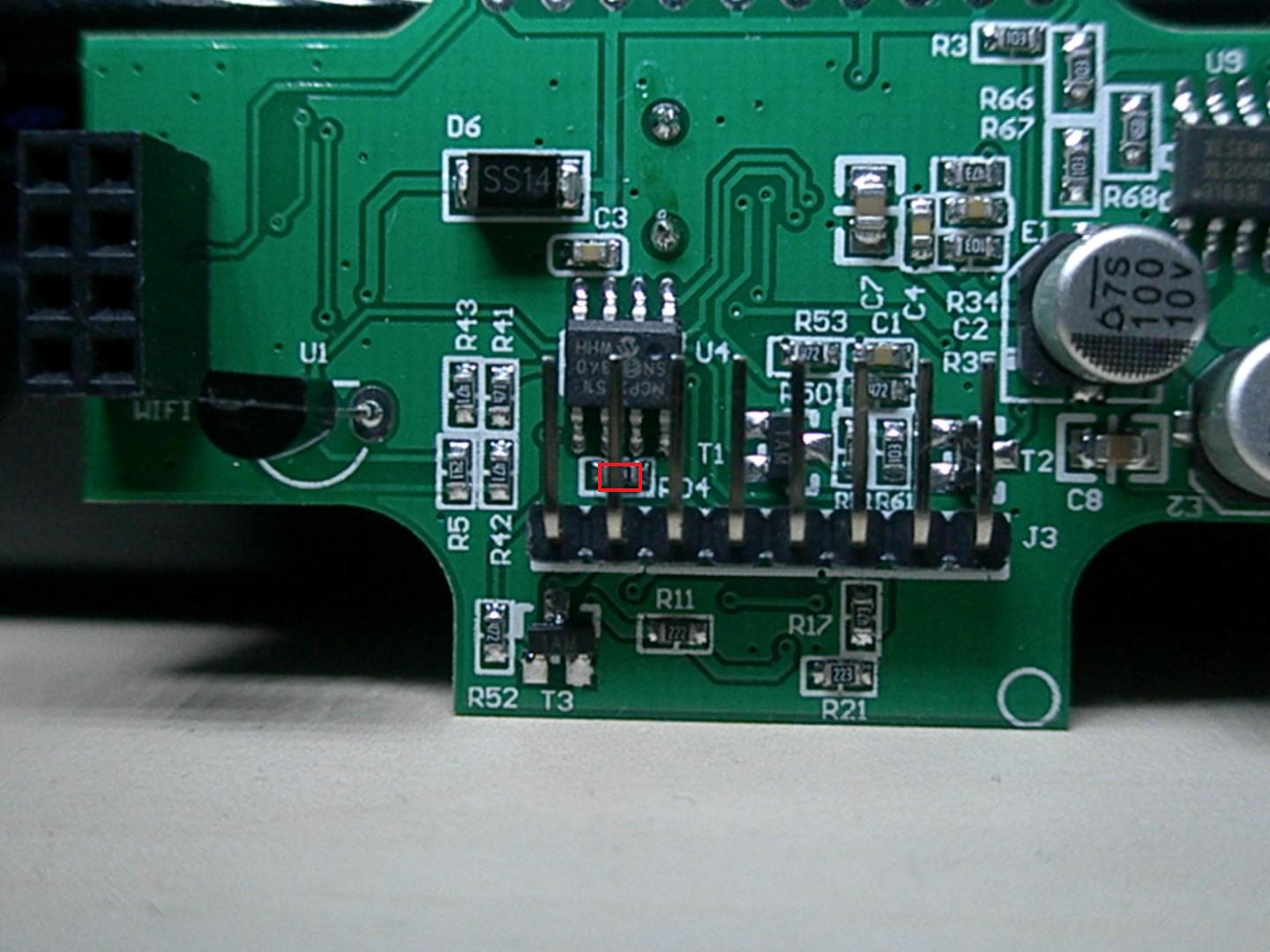

- P1010006 (Large) markiert.jpg (171.45 KiB) Viewed 4677 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 21 Feb 2014, 19:33
by Alfaeddy
Hello Andrea
Even with your interface the resistor R04 is the problem
Remove R04 (red frame) and your interface will work
Greetings Eddy

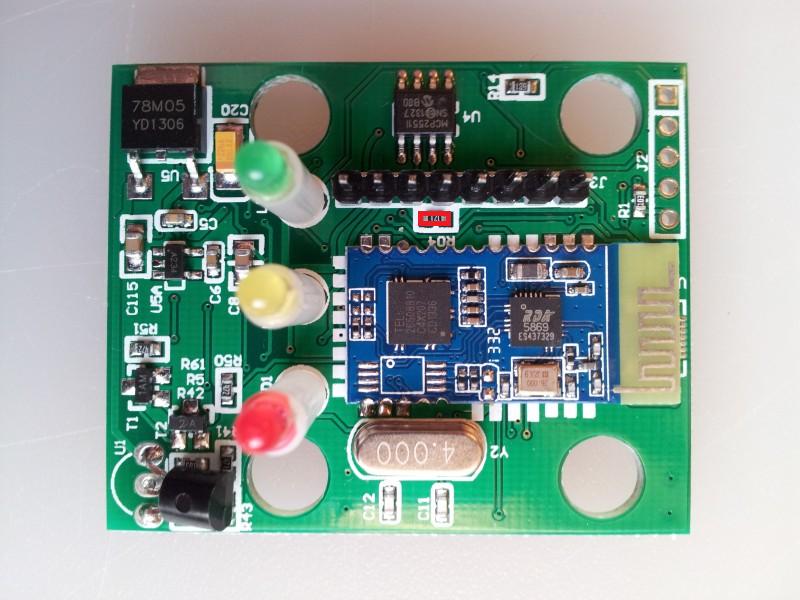

- d272b0cab2a2902c0621a25ee1de6934 markiert.jpg (68.55 KiB) Viewed 4677 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 21 Feb 2014, 19:51
by Alfaeddy
Hello Juanito
Your picture is unfortunately very blurry.
I can not see any numbers on it.
Do not hesitate to a better picture of the area in the red circle
Greetings Eddy
- IMAG0388 markiert.jpg (269.16 KiB) Viewed 4677 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 21 Feb 2014, 19:58
by juanito
Hello again
not red circle in my elm v1.5 bluetooth. I remove r04 but i cant activate cruise control again. Thanks.

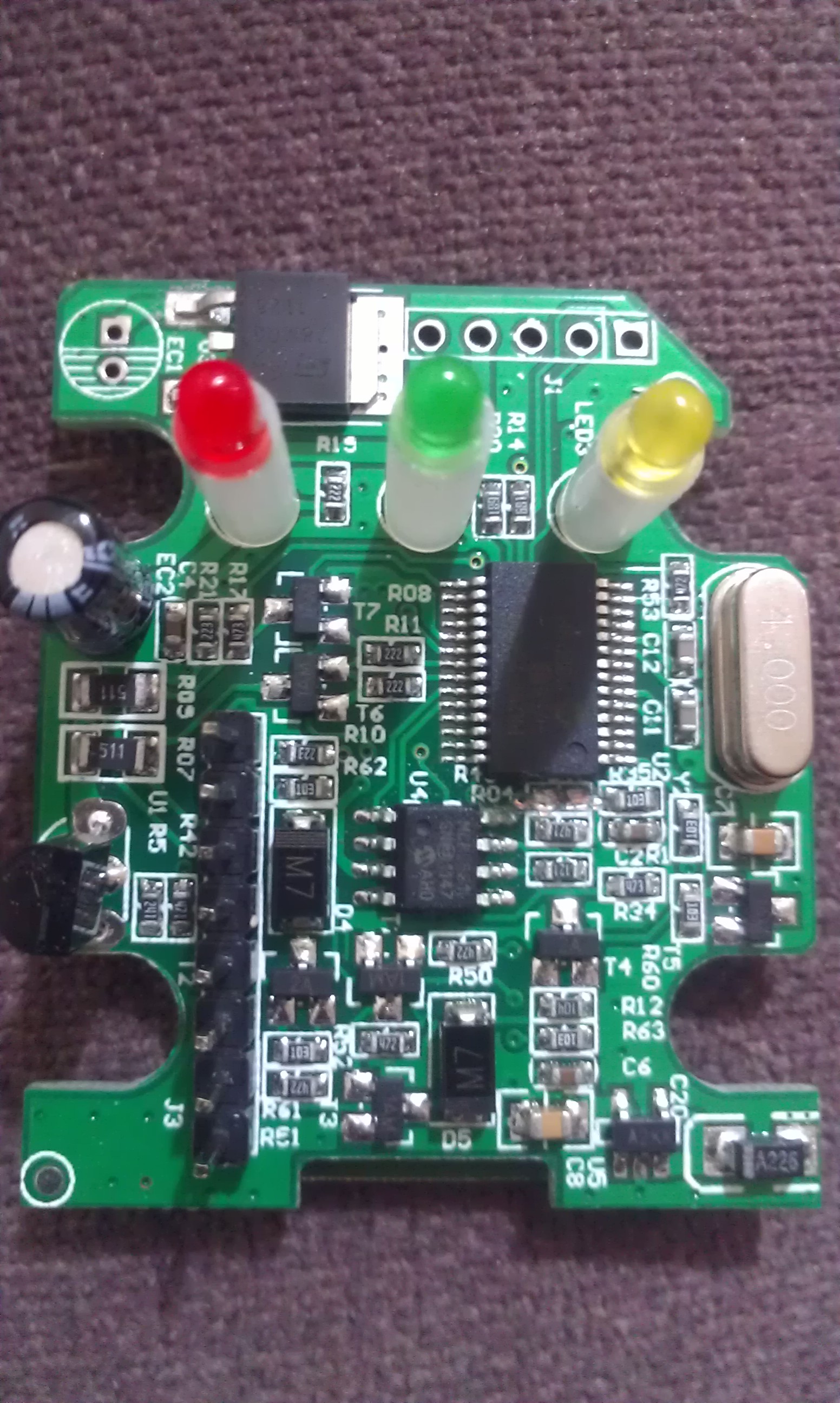

- IMAG0391.jpg (691.16 KiB) Viewed 4677 times

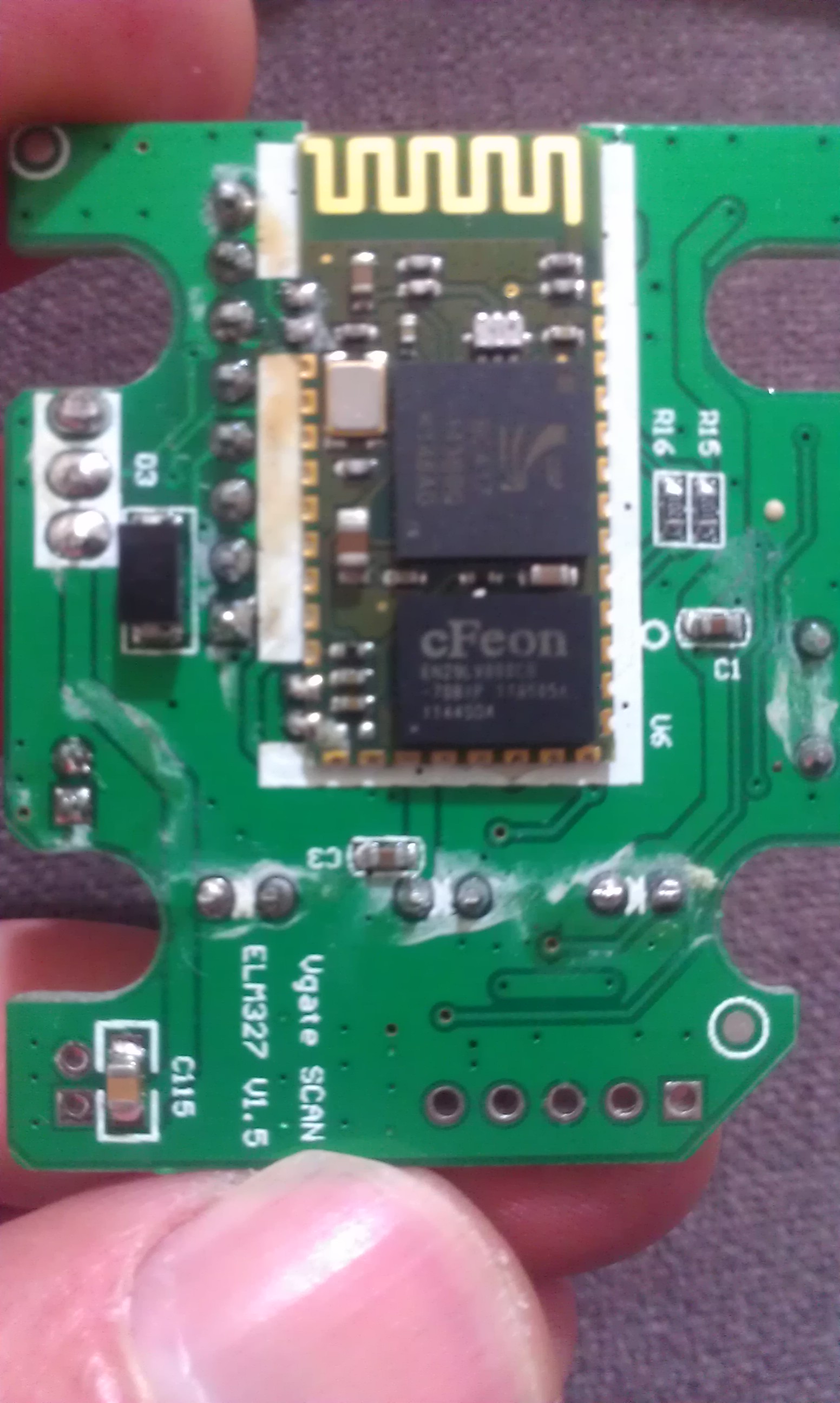

- IMAG0392.jpg (501.1 KiB) Viewed 4677 times
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 21 Feb 2014, 21:24
by gieboue
thanks Alfaeddy i'll try it.
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 22 Feb 2014, 11:10
by andro58
Hi Alfaeddy,
thanks for the answer ,
I have removed the resistor R04 but the problem is the same..
do you have another solution?
thanks !
Andrea
Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)
Posted: 22 Feb 2014, 18:40
by Alfaeddy
andro58 wrote:Hi Alfaeddy,
thanks for the answer ,
I have removed the resistor R04 but the problem is the same..
do you have another solution?
thanks !
Andrea
Hello Andrea
The red marked resistor is already correct
If your connection still does not work it may be the only driver to adjustment.
Just try this driver
http://www.ftdichip.com/Drivers/VCP.htm
Greetings Eddy
