Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

Post by Alfaeddy »

Hello

You see the plug, but the numbering is from the OBD connector socket NOT

The number in red is correct by Mattydr67
use this and you have the correct pinout

greeting
Top
osmangdk
Posts: 10
Joined: 27 Jul 2011, 12:52

Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

Post by osmangdk »

hi,everyone.
OK. Well, what do I solder the pins.
thanks.
Top
Alfaeddy
Posts: 1350
Joined: 19 Feb 2011, 17:43
Location: Germany , Aarbergen

Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

Post by Alfaeddy »

Hello

That depends on which vehicle!
If it is an Alfa 147 and 159, you only need to pin 1, 7, 12 connect.

This interface should not apply to the Mito, Grande Punto, 500 and so on.

And note the pin numbers (red) which has given you mattydr67

Greetings Eddy
Top
osmangdk
Posts: 10
Joined: 27 Jul 2011, 12:52

Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

Post by osmangdk »

thank you for everything.
Top
Alba_Skye
Posts: 3
Joined: 29 Jul 2011, 18:47

Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

Post by Alba_Skye »

So did anyone come up with a solution to make the 'ELM327-USB V3.0' Work yet?

Soldering and removing R04 does not work with this layout?
Attachments

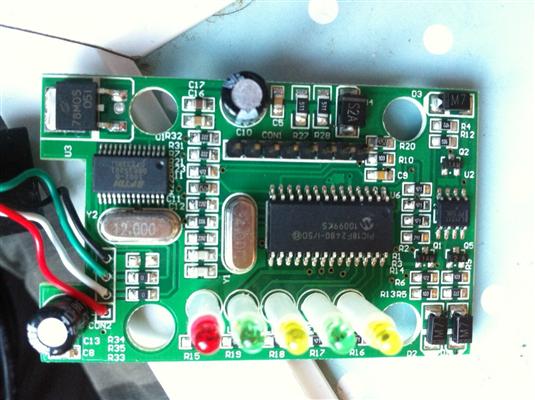

photo(5) (Custom).JPG
photo(5) (Custom).JPG (31.53 KiB) Viewed 8780 times

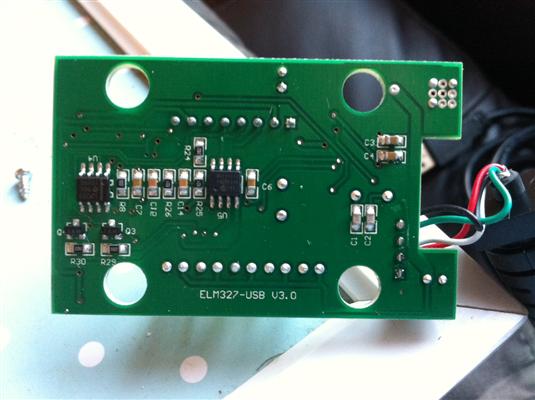

photo(4) (Custom).JPG
photo(4) (Custom).JPG (44.17 KiB) Viewed 8780 times
Top
fewleh
Posts: 2
Joined: 18 Aug 2011, 21:02

Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

Post by fewleh »

Hi, I have just hit this problem. Just wondering if I'm missing something, tried all sorts with my cable to get it open, but I can't.. What's the procedure for getting the casing open so I can see the chipset?

Thanks in advance, really hope I can get the cable working properly.
Top
alfa156sarajevo
Posts: 870
Joined: 12 Feb 2010, 09:03
Location: EU, Germany

Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

Post by alfa156sarajevo »

fewleh wrote:Hi, I have just hit this problem. Just wondering if I'm missing something, tried all sorts with my cable to get it open, but I can't.. What's the procedure for getting the casing open so I can see the chipset?

Thanks in advance, really hope I can get the cable working properly.
Take off the label (on the label is written ELM327 interface - Supports all OBDII protocols) and under it you will find 4 holes with 4 screws...
Just unscrew them and that is it... ;) See the photo...
Attachments
ELM 327.jpg
ELM 327.jpg (32.61 KiB) Viewed 8690 times
Coded Keys & CODE card for Alfa Romeo, Fiat and Lancia cars
Top
fewleh
Posts: 2
Joined: 18 Aug 2011, 21:02

Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

Post by fewleh »

EXCELLENT :) Thanks... if only I knew it was that easy, before I smashed it all up :D
Top
cendler
Posts: 21
Joined: 13 Sep 2010, 05:44

Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

Post by cendler »

Alba_Skye wrote:So did anyone come up with a solution to make the 'ELM327-USB V3.0' Work yet?

Soldering and removing R04 does not work with this layout?
I have the same problem, please help
Top
rxsx
Posts: 2
Joined: 29 Sep 2011, 19:40
Location: Rovigo, Italy

Re: FAULTY ELM 327 INTERFACES DE-MYSTIFIED (READ HERE)

Post by rxsx »

Hello, I just wanted to thank you, i bought a Chinese-made ELM327 Bluetooth v1.5, had the same problem, only connected to ECU, now i desoldered R04 and all CAN systems work perfectly...
Thanks again, if it wasn't for you probably i'd have bought another interface...
Top
