Error while injectors coding "Interface doesnt support this function"

Multiecuscan usage help and guides
Post Reply
samuraisuzuki
Posts: 6
Joined: 29 Apr 2017, 20:47

Error while injectors coding "Interface doesnt support this function"

Post by samuraisuzuki »

Hi, all!

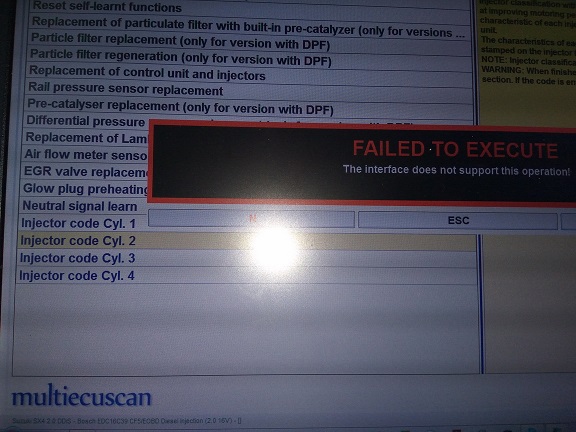

I am trying to save the new diesel injectors codes with my Suzuki, but getting the following error from MultiECUScan
"The Interface does not support this operation"

All other functions of the programm seems to work fine. The car is
Suzuki SX4, but has a Fiat Motor, 2.0 Diesel, Bosch Control Unit and injectors, Motor Code D20AA
I am using the ELM 327 Blue Interface cable.

Am I using the wrong cable? Which one is the right then?
Did anyone have the same problem, please?

Thanks,
SamuraiSuzuki
Attachments
samuraisuzuki
Posts: 6
Joined: 29 Apr 2017, 20:47

Re: Error while injectors coding "Interface doesnt support this function"

Post by samuraisuzuki »

Shall I use KKL cable?
I have tried to code injectors with a help of a professional worksshop and it was okay. But I still wonder why it doesnt function with me. It should!
s130
Posts: 997
Joined: 20 Jan 2010, 10:07
Location: Wrexham, North Wales

Re: Error while injectors coding "Interface doesnt support this function"

Post by s130 »

Whilst the support info for the Fiat Sedici specifies KKL or ELM then I am thinking that it is KKL you need for injector coding.

As KKL units are so cheap and generally reliable I would suggest you get a good quality KKL cable and try with that and report back your findings.
Fiat Strada/Ritmo Abarth 130TC, Barchetta 2005 , 500X Cross Plus
samuraisuzuki
Posts: 6
Joined: 29 Apr 2017, 20:47

Re: Error while injectors coding "Interface doesnt support this function"

Post by samuraisuzuki »

Yes, FIAT KKL Cable solved the problem. I saved the codes without any troubles.
