Ok. Problem solved. For the past 2 weeks, I cannot execute the "Clutch calibration", it just didnt work. The mechanic took out the actuator and tear apart trying to figure out what is jammed. But mechanically there was nothing wrong. After he put back everything, I did a EOL calibration an...

I managed to do an Production / service (EOL) calibration. It was carried out, but the problem still persist. Press the "clutch replacement" and I got this, "completed" "Status 1000" I didnt hear any sound.

OK, I will try clutch self calibration again following your method. thanks alot. will update here.

But, now I cannot even activate the Production/service calibrate (EOL). It is not responding to the command at all after I click execute.

I did the clutch self calibration. It is not helping. BTW, what should I hear when I carry out the clutch calibration? The system & car is quiet, not responding. Now I cannot even carry out the EOL (Production/service calibration). Previously I can do the EOL, but now the EOL cannot be carried o...

Hi, I have a big problem. I changed my clutch on my 2007 GP and now the selespeed cannot shift gear to gear 2. It only allows gear 1 and Reverse. I cannot go to Gear 2, 3 ,4 or 5. I did a Production/Service calibration (EOL) after the clutch is changed and it was OK, I can hear the plunger working. ...

Hi Eddy,

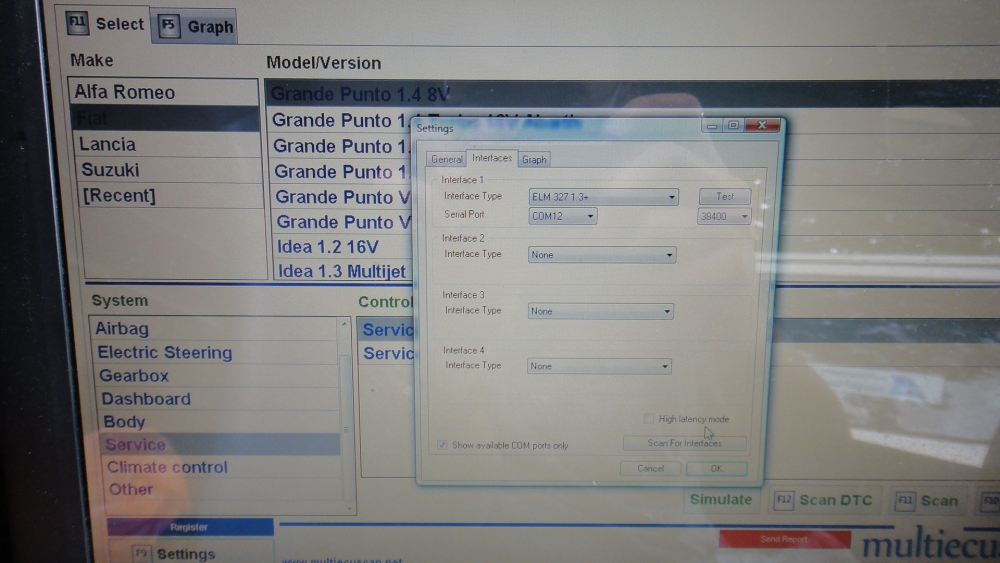

I m using Windows Vista. I tried changing the settings, but it doesn't work. What drivers do I need?

Alfaeddy wrote:Hello Lu

Controlling again
- Drivers
- settings
- Com port
- Latency Time

The ELM interface needs work.

Greetings Eddy

Hi Eddy, I removed R04 as mentioned. I still cannot read body, dashboard,abs service and climate control. I got an error message on the computer screen " ELM 327 -> ECU Connection Failed! Check your cable and serial port settings!". The remaining modules are not affected, I can continue to...

Alfaeddy wrote:Hi swatchlu

Remove the resistor in the red Frame ( R04) and you can read also CAN Bus with your ELM Interface


Greetings Eddy

ELM 327 V15a 1 markiert.jpg

Hi Eddy,
Thank you!

if I remove R04, as mentioned. Will affect the ones that I already can read?

Hi Eddy, I have ELM 327 V1.5a. I can only read using multiescan, electric steering, gearbox and engine. I cannot read body, dashboard,abs service and climate control. What do I need to do on this ELM327 1.5a, in order for it to read the rest of the modules? What do I need to remove? my ride - Fiat 2...

thanks....
